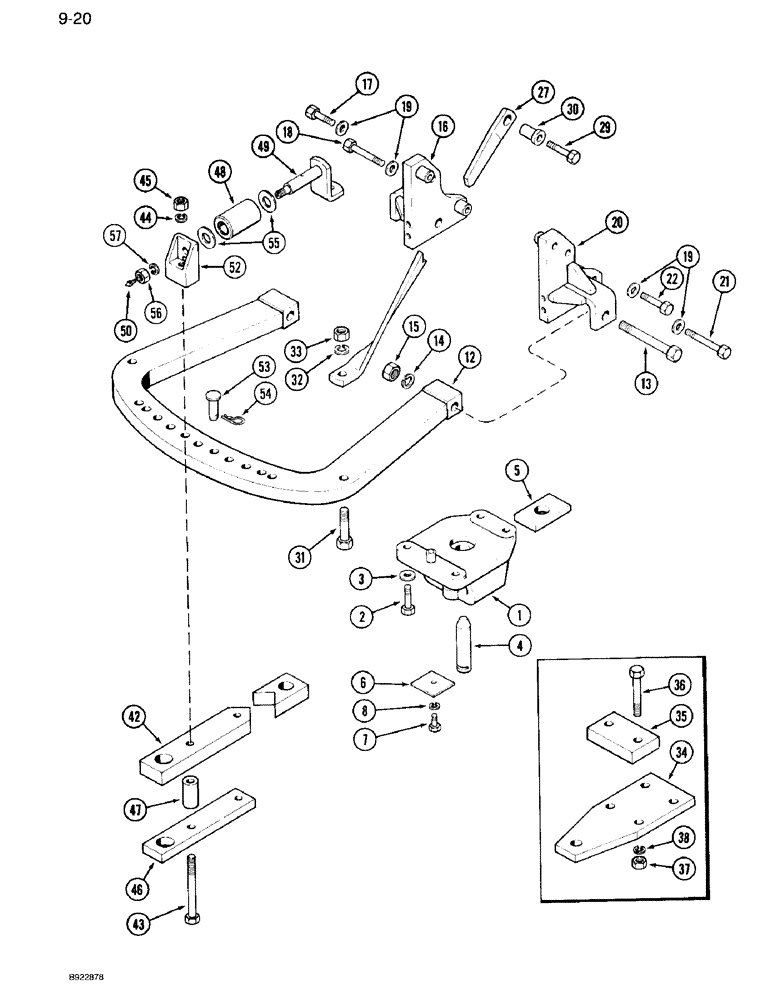

Запчасти Case IH 7120 (9-020) - DRAWBAR, WITHOUT HITCH, PRIOR TO P.I.N. JJA0023395 (09) - CHASSIS/ATTACHMENTS

1

142619C3

SUPPORT ASSY.

SUPPORT - pivot, drawbar

1шт.

2

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

4шт.

4

224618C1

PIN,34.87mm OD x 150mm L

- pivot, drawbar

1шт.

5

1331986C1

SPACER

- pivot, drawbar

1шт.

6

67828C1

RETAINER

- pin, drawbar

1шт.

7

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

8

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

12

145194C1

SUPPORT

- drawbar

1шт.

13

828-24170

BOLT,Hex, M24 x 3 x 170mm, Cl 10.9

2шт.

14

892-12024

LOCK WASHER,M24

WASHER - lock, 24 mm

2шт.

15

829-1324

NUT

- hex, 24 mm - 3, class 10

2шт.

16

145197C2

BRACKET

- drawbar, left

1шт.

17

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

1шт.

18

813-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

- hex, 16 - 2 x 100 mm

2шт.

19

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch

6шт.

20

145200C2

BRACKET

- drawbar, right

1шт.

21

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

2шт.

22

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

- hex, 16 x 75 mm

1шт.

27

145205C1

SUPPORT ASSY.

SUPPORT - drawbar, left

1шт.

27

145207C1

SUPPORT ASSY.

SUPPORT - drawbar, right

1шт.

29

813-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

2шт.

30

145204C1

BUSHING

- support, drawbar

2шт.

31

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

- hex, 20 - 2.5 x 90 mm, class 10.9

2шт.

32

892-11020

LOCK WASHER,M20

WASHER, LOCK, M20

2шт.

33

829-1320

NUT,M20, Cl 10

- hex, 20 mm - 2.5, class 10

2шт.

34

1264947C1

BAR

PLATE - extension, drawbar

1шт.

35

1264975C1

SPACER

- extension

1шт.

36

25964R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 8

- hex, 3/4 NC x 4-3/4 inch

2шт.

37

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

2шт.

38

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

42

1331949C1

DRAWBAR

- swinging

1шт.

43

25700R1

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- hex, 3/4 NC x 7 inch, Grade 8

2шт.

44

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

45

25529R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC

1шт.

46

1331948C1

STRAP

- guide, drawbar

1шт.

47

1331947C1

SPACER

- guide, drawbar

3шт.

48

1289285C1

ROLLER

- drawbar

1шт.

49

1289289C1

SHAFT

- drawbar roller

1шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch straight

1шт.

52

391889R1

SUPPORT ASSY.

BRACKET - shaft rear

1шт.

53

21401R1

HEADED PIN,3/4" x 2 3/4"

PIN - head, 3/4 x 2-3/4 inch

2шт.

54

486830R1

COTTER PIN

PIN - hair

2шт.

55

391870R1

WASHER

- retaining

2шт.

56

129-108

NUT,3/4"-10, G5

1шт.

57

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.
