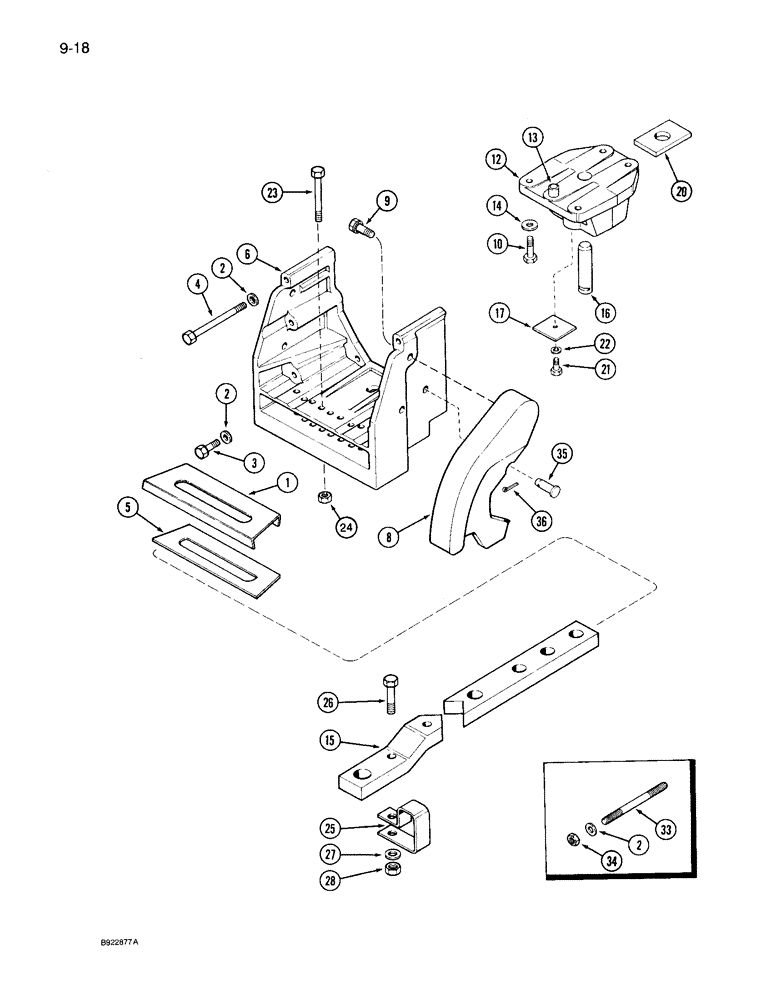

Запчасти Case IH 7120 (9-018) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

1

1286971C1

PLATE ASSY.

PLATE - wear, drawbar

1шт.

2

67872C1

WASHER

- flat, 21/32 x 1-1/8 x 1/4 inch

8шт.

3

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

4

828-16190

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

- hex, 16 - 2 x 190 mm, class 10.9

6шт.

5

1332004C1

SPACER

- wear, plate

1шт.

6

1981968C2

SUPPORT

- drawbar

1шт.

8

1331889C1

CAM

- sway limiter, left

1шт.

8

1331890C1

CAM

- sway limiter, right, shown

1шт.

9

410-11228

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

- hex lock, 3/4 NC x 1-3/4", G8

2шт.

10

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

12

142619C3

SUPPORT ASSY.

SUPPORT - pivot, drawbar, Replaces: 1982147C1, Includes: Ref. 13

1шт.

13

837-25050

DOWEL,M25 x 50, HDN

pin M25 x 50, HDN

1шт.

14

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

- flat, 16 x 30 x 4 mm

4шт.

15

1286970C3

DRAWBAR,1489mm L x 76.2mm W x 38.1mm Thk, 31.9mm Offset

- swinging, Replaces: 1286970C2

1шт.

16

1982103C1

PIN,34.87mm OD x 140mm L

- pivot, drawbar, 140 mm, used with 1982147C1

1шт.

16

224618C1

PIN,34.87mm OD x 150mm L

- pivot, drawbar, 150 mm, used with 142619C2

1шт.

17

67828C1

RETAINER

- pin, drawbar

1шт.

20

1331986C1

SPACER

- pivot, drawbar

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

23

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

- hex, 16 x 140 mm, class 10.9

2шт.

24

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, M16 x 2, Cl 8

2шт.

25

1331943C1

SUPPORT ASSY.

SUPPORT - chain, safety

1шт.

26

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

27

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm

1шт.

28

829-1420

NUT,M20, Cl 10

1шт.

33

1981087C1

STUD

- mounting, 210 mm, if equipped, see ref. 5

2шт.

34

30170R1

NUT,M16, Cl 10

- hex, 16 mm, class 10.9, if equipped

2шт.

35

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

2шт.

36

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch diameter

2шт.
