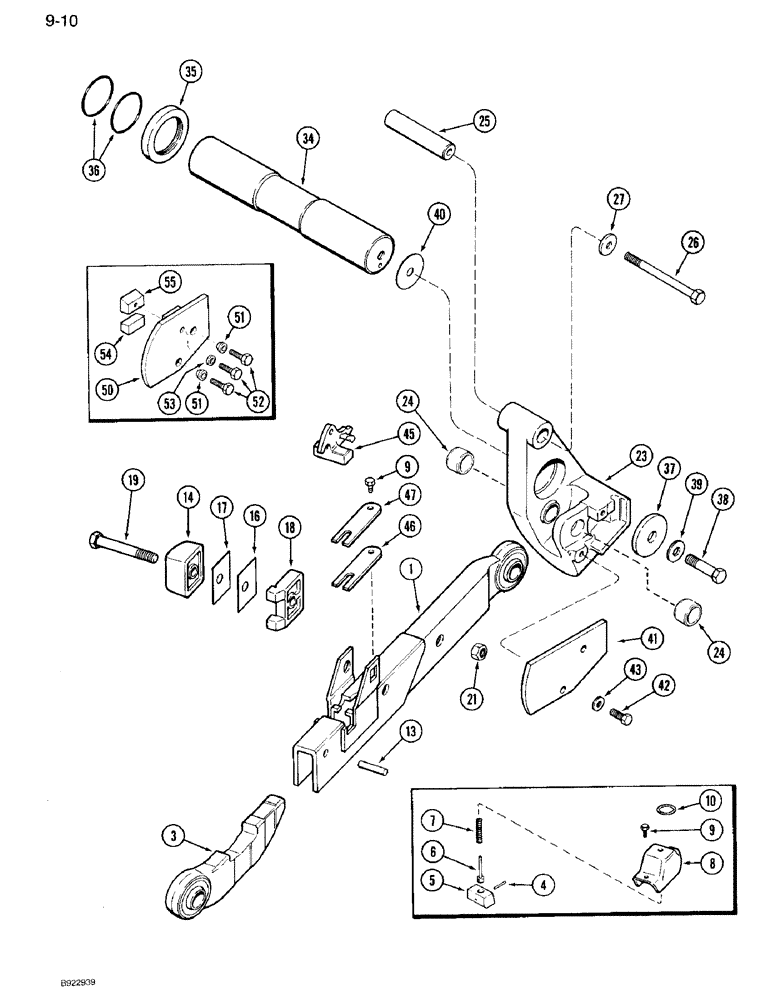

Запчасти Case IH 7120 (9-010) - HITCH LOWER LIFT LINKS, PRIOR TO P.I.N. JJA0036010 (09) - CHASSIS/ATTACHMENTS

1

1965616C2

LINK

- lower, left front, Serial Range: -JJA0002701

1шт.

1

1965616C3

LOWER LINK

LINK - lower, left front, Start Serial: JJA0002701

1шт.

1

1965617C2

DRAG LINK

LINK - lower, right front, shown, Serial Range: -JJA0002701

1шт.

1

1965617C3

DRAG LINK

LINK - lower, right front, shown, Start Serial: JJA0002701

1шт.

3

1282114C2

LOWER LINK

LINK - lower, left rear, Serial Range: -JJA0002701

1шт.

3

1282114C3

LOWER LINK

LINK - lower, left rear, Start Serial: JJA0002701

1шт.

3

1282115C2

DRAG LINK

LINK - lower, right rear, shown, Serial Range: -JJA0002701

1шт.

3

1282115C3

LOWER LINK

LINK - lower, right rear, shown, Start Serial: JJA0002701

1шт.

1973957C1

BLOCK ASSEMBLY - latch, Includes: Refs. 4 - 6, Serial Range: -JJA0002701

2шт.

4

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

, Serial Range: -JJA0002701

1шт.

5

1973958C1

BLOCK

- lower link latch, Serial Range: -JJA0002701

1шт.

6

1973959C1

PIN

- headed, Serial Range: -JJA0002701

1шт.

7

1331904C1

SPRING

- link latch, Serial Range: -JJA0002701

2шт.

8

1331905C1

COVER ASSY

COVER - link latch, Serial Range: -JJA0002701

2шт.

9

414-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

6шт.

10

A185305

RING

- split

2шт.

13

31029R1

PIN,M12 x 60, Coiled

- 12 x 60 mm

2шт.

14

1286789C1

BLOCK

BUMPER - cam

2шт.

1965317C1

SHIM

KIT - bumper, Includes: Refs. 16 and 17

1шт.

16

70479C1

SHIM

- bumper, 0.067 inch

12шт.

17

70480C1

SHIM

- bumper, 0.033 inch

2шт.

18

1266811C1

SPACER

- cam bumper

2шт.

19

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

2шт.

21

22244R1

LOCK NUT

- lock, 3/4 inch NC

2шт.

23

1974298C1

BRACKET

ASSEMBLY - lower link, left, Replaces: 1286940C2, Includes: Ref. 24

1шт.

23

1974299C1

BRACKET

ASSEMBLY - lower link, right, Replaces: 1286926C2, Includes: Ref. 24

1шт.

24

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

- bracket

2шт.

25

1286925C1

AXLE PIN

BUSHING - 17 ID x 105 mm, left bracket

1шт.

25

145472C1

BUSHING,17.32mm ID x 31.59mm OD x 168.5mm L

- 17 ID x 169 mm, right bracket

1шт.

26

828-16190

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

- hex, 16 - 2 x 190 mm, class 10.9, left bracket

1шт.

26

828-16210

BOLT,Hex, M16 x 2 x 210mm, Cl 10.9

- hex, 16 x 210 mm, class 10.9, right bracket

1шт.

27

145678C3

WASHER

- flat, 17 mm

2шт.

34

1286943C2

SHAFT

- link mounting, Replaces: 1286943C1

1шт.

35

1286928C3

RING,79.24mm ID x 108.5mm OD x 18.18mm Thk

- retaining, seal

2шт.

36

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

4шт.

37

1286941C1

PLATE ASSY.

PLATE - shaft retaining

2шт.

38

854-20050

BOLT,Hvy Hex, M20 x 50mm, Cl 10.9

- hex flange, 20 x 50 mm, class 10.9

2шт.

39

30187R1

WASHER,M20 x 44.5 x 5, HT

- flat, 22 x 44 x 5 mm

2шт.

40

1286978C1

SHIM

- link mounting bracket

6шт.

41

1982083C1

PLATE ASSY.

PLATE - sensing pin retaining, Replaces: 1331989C1

2шт.

1331989c1 is not replaced by 1982083c1. Both are service parts, see specs in quality comments.

1шт.

42

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, class 10.9

4шт.

43

30185R1

WASHER,M12 x 28.5 x 4, HT

- flat, 13 x 28 x 4 mm

4шт.

45

398399R1

LATCH

- lower link, Start Serial: JJA0002701

2шт.

46

382192R1

SPRING

- link latch, Start Serial: JJA0002701

2шт.

47

382193R1

SPRING

- stiffener, Start Serial: JJA0002701

2шт.

1998122C1

KIT

- EDC pin anti-rotation, if equipped, Includes: Ref. 50 - 55

1шт.

50

1998109C1

PLATE ASSY.

PLATE ASSEMBLY - pin retainer, right, shown

1шт.

50

1998108C1

PLATE ASSY.

PLATE ASSEMBLY - pin retainer, left

1шт.

51

1998115C1

SPACER

- bolt

1шт.

52

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 40 mm, class 10.9

6шт.

53

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

54

1998112C1

LARGE PLATE

BLOCK - pin retainer

2шт.

55

1998114C1

LARGE PLATE

BLOCK - wedge retainer

2шт.
