Запчасти Case IH 7120 (8-90) - HYDRAULIC MOTOR OIL RETURN ATTACHMENT, TRANSMISSION SERIAL NUMBER AJB0018756 THROUGH AJB0044914 (08) - HYDRAULICS

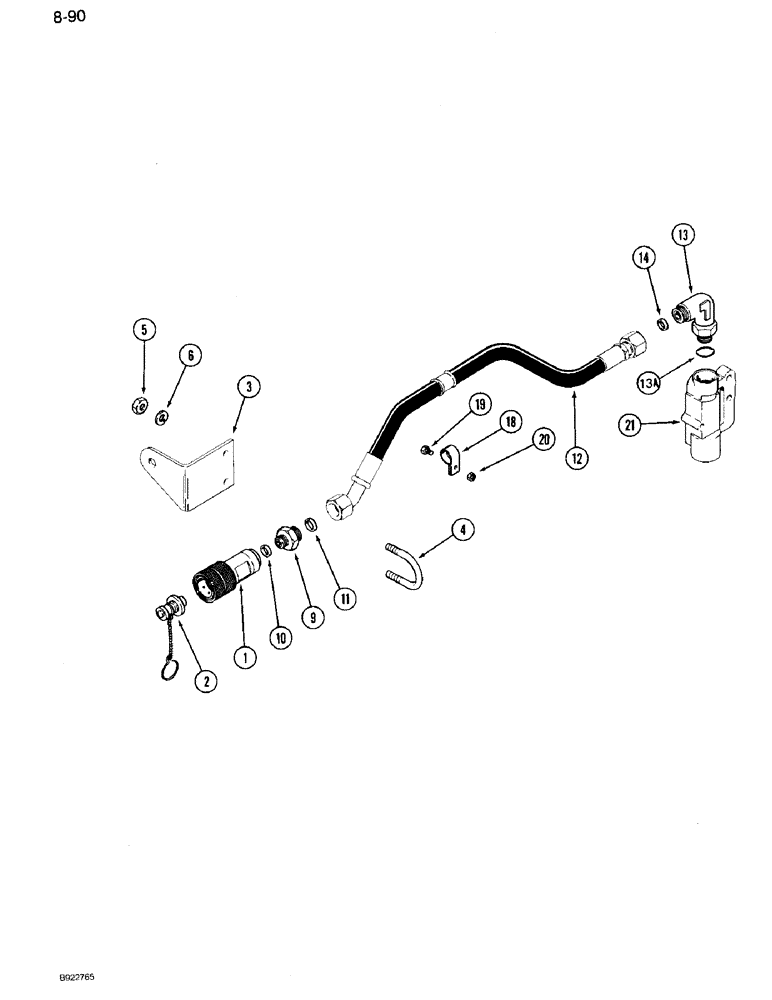

Схема запчастей Case IH 7120 - (8-90) - HYDRAULIC MOTOR OIL RETURN ATTACHMENT, TRANSMISSION SERIAL NUMBER AJB0018756 THROUGH AJB0044914 (08) - HYDRAULICS
18
21
1
3
10
20
12
13
19
14
2
13a
4
11
5
6
9

Артикул

Название

Примечание

Количество

1348267C1

ATTACHMENT

HYDRAULIC ATTACHMENT - oil return, machinery item, Includes: Ref. 1 - 20

1шт.

1

1272400C1

COUPLING

COUPLER ASSEMBLY - hydraulic

1шт.

2

1954133C1

PLUG

PLUG ASSEMBLY - dust, coupler

1шт.

3

1348201C1

SUPPORT

BRACKET - return line

1шт.

4

A66788

CLAMP

- 1-13/32 x 2 x 1/4 inch NC

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter - straight jump, Includes Ref. 10 and 11 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

1348215C1

HOSE,19.05mm ID x 1040mm L, SAE 30R2

- return, oil

1шт.

13

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 1-3/16-12 x 1-1/16-12 inch thread, Includes: Ref. 13A and 14

1шт.

13a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

18

28122R1

CLAMP,1 3/16", Insul, 3/8" Bolt

- hose

1шт.

19

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

20

825-1108

NUT,Hex, M8, Cl 8

1шт.

21

REF

INSTRUCTION

COVER - outlet, end, See Figure 8-54

1шт.

Выбрано товаров: 18
