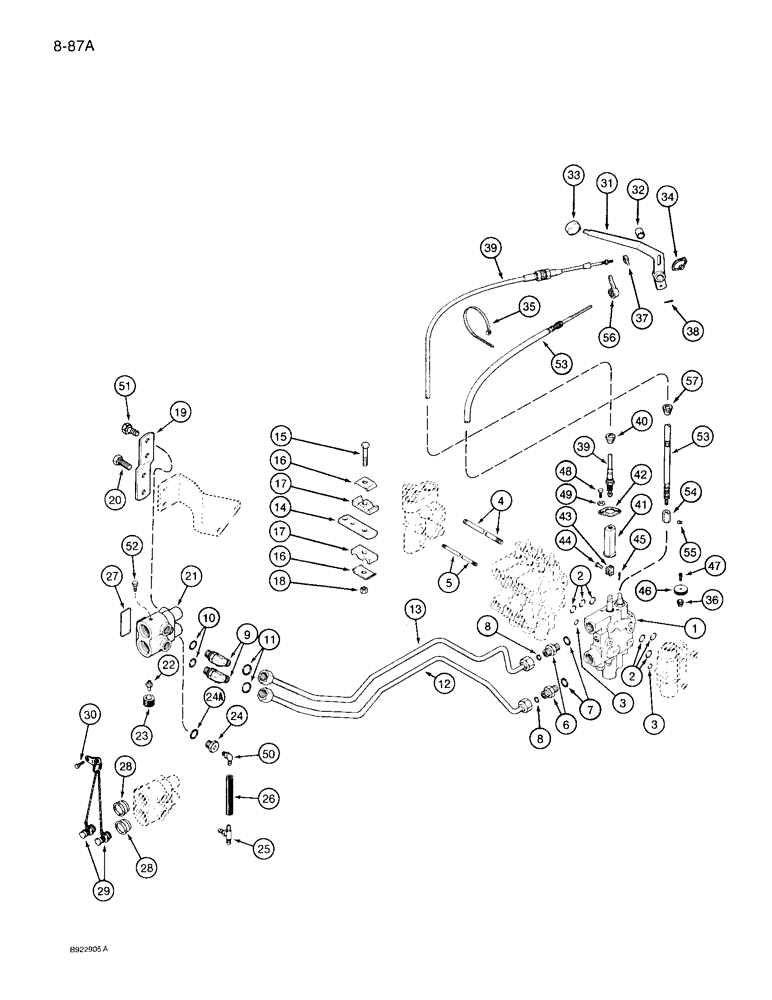

Запчасти Case IH 7120 (8-87A) - FOURTH CIRCUIT REMOTE HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0060500 AND AFTER (08) - HYDRAULICS

105963A1

PACKAGE

ATTACHMENT - fourth remote, includes instructions, machinery item, order from Machinery Price List, Includes: Ref. 1 - 49

1шт.

1

1980450C6

VALVE, CONTROL

VALVE ASSEMBLY - fourth remote, See Figures 8-66 - 8-68, Replaces: 1980450C5

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

4

1986938C1

STUD

- valve, 12 x 312 mm, class 10.9

2шт.

5

1334613C2

STUD

- valve, 10 x 312 mm, class 10.9

1шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 7 and 8 1"-14 ORFS x 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 10 and 11

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

12

102221A1

TUBE,0.625" OD, 929, 258 mm Length

- raise, fourth valve

1шт.

13

102222A1

TUBE,0.625" OD, 925, 205 mm Length

- drop, fourth valve

1шт.

14

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

15

815-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

16

486004R1

CLAMP

- tube

2шт.

17

224968C2

STRIP

CLAMP - isomount strip

2шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10

1шт.

19

120012C1

SUPPORT

- coupler

1шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm, At third circuit coupler

2шт.

21

103866A2

COUPLING

COUPLER ASSEMBLY - quick, See Figure 8-70, Replaces: 103866A1

1шт.

22

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

1шт.

23

1272764C1

SEAL

SEAL - drain

1шт.

24

1334586C1

PLUG

ADAPTER - drain coupler, special, Includes: Ref. 24A

1шт.

24a

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

25

1289480C1

TEE

- hose, 1/8 PT x 1/4 x 1/4 inch barbed end, at third circuit coupler

1шт.

26

1289484C1

HOSE

- 1/4 (6.3) x 4-9/16 inch (115 mm) long, drain, elbow to tee, cut from 427683C2 shown below

1шт.

Part of Hose P/N 427683C2

1шт.

27

1334584C3

DECAL

- coupler, shown on Figure 9-154

1шт.

28

103871A1

CAP

SOCKET - dust plug

2шт.

29

109021A2

PLUG

- dust, coupler, Replaces: 109021A1

1шт.

30

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - 1/4 (6.3) x 600 inch, (15240 mm) long, Includes: Ref. 26

1шт.

31

96786C2

LEVER

- control, Includes: Ref. 32

1шт.

32

676862R1

BUSHING

- pivot

1шт.

33

D135387

GRIP

KNOB - lever, black

1шт.

34

1283461C4

LEVER

- lockout, float

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

36

96987C1

GROMMET

- cable

1шт.

37

1990625C1

ADAPTER,9.53mm OD x 23.01mm L

- end, cable, special

1шт.

38

732-2016

COTTER PIN,M2 x 16

PIN - cotter, 2 x 16 mm

1шт.

39

96481C2

CABLE

- valve, Includes: Ref. 40

1шт.

Early S/N tractors may use P/N 96825C1.

1шт.

40

96989C2

GROMMET

- cable

1шт.

41

1340478C1

HOUSING

- support, cable

1шт.

42

1280055C1

FLANGE

- housing

1шт.

43

96790C2

CLEVIS COUPLING

CLEVIS - cable

1шт.

44

96846C2

AXLE PIN,7.87mm OD x 19.78mm L

PIN - clevis

1шт.

45

732-2012

COTTER PIN,M2 x 12

1шт.

46

1340223C1

KNOB

- control, flow, tractors without in-cab flow control

1шт.

47

484-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, No. 10 NF x 5/8 inch

1шт.

48

627-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 10.9, Full Thd

- hex, 6 x 14 mm, class 10.9

2шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

50

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

- 90 degree, special

1шт.

Located at third circuit coupler, moved to fourth circuit coupler when adding fourth circuit, not included with P/N 105963A1 remote attachment kit.

1шт.

51

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

Located at third circuit coupler, moved to fourth circuit coupler when adding fourth circuit, not included with P/N 105963A1 remote attachment kit.

1шт.

52

221-849

PLUG,Hex Soc, 1/8"-27

- hex, 1/8 inch PT

1шт.

Located at third circuit coupler, moved to fourth circuit coupler when adding fourth circuit, not included with P/N 105963A1 remote attachment kit.

1шт.

A67920

ATTACHMENT

- flow control, machinery item, order from Machinery Price List, Includes: Ref. 53 - 57

1шт.

53

96711C3

CABLE

ASSEMBLY - control, flow, attachment, Includes: Ref. 54 and 55

1шт.

53

96711C3

CABLE

ASSEMBLY - control, flow, attachment

1шт.

53

96711C3

CABLE

ASSEMBLY - control, flow, attachment

1шт.

54

1955422C1

FITTING

- end cable, flow control attachment

1шт.

55

84-1104

SET SCREW,#10 - 32 x 1/4"

SCREW - set, hex socket, No. 10 NF x 1/4 inch, flow control attachment

1шт.

56

96816C3

KNOB

- control, flow, attachment

1шт.

57

96990C2

GROMMET

- cable, flow control attachment

1шт.
