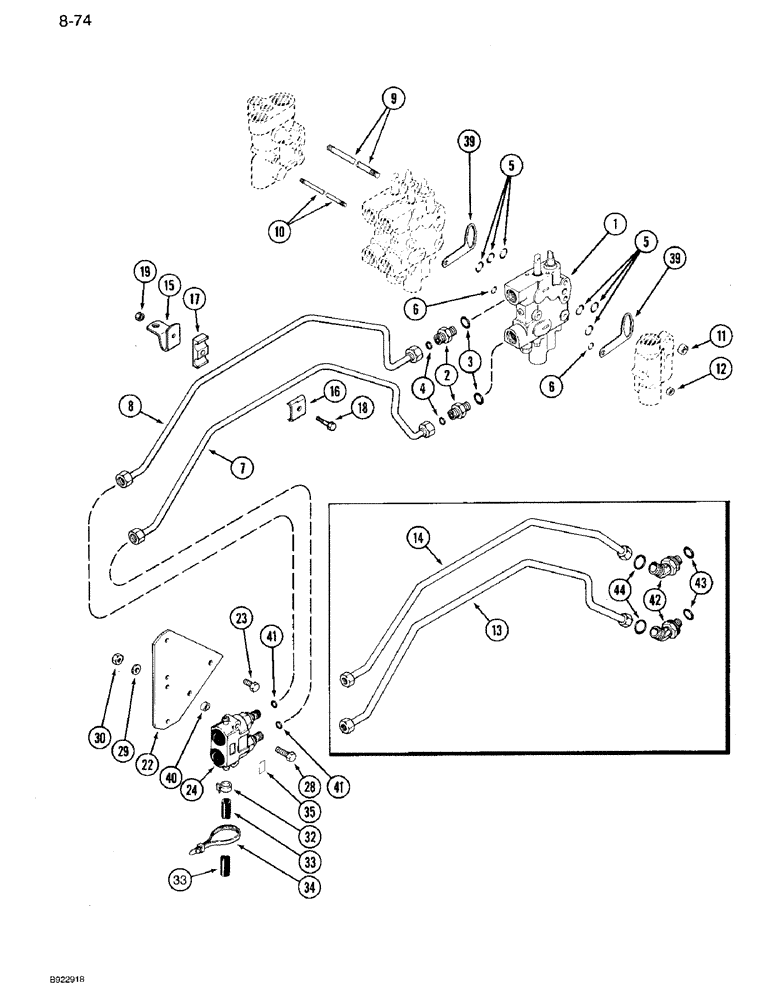

Запчасти Case IH 7120 (8-74) - THIRD CIRCUIT REMOTE HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0018756 THROUGH AJB0060499 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote, See Figures 8-66 - 8-68

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 3 and 4 1"-14 ORFS x 7/8"-14 ORB

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

6

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

Seal, valve -112, 90 Duro, .487" ID x .103" Thk

2шт.

7

1348307C1

HYD TUBE,0.625" OD, 764, 59 mm Length

TUBE - raise, third valve

1шт.

8

1348282C1

TUBE,0.625" OD, 764.2, 161.5 mm Length

- drop, third valve

1шт.

9

1994613C1

STUD

- mounting, 12 mm - 1.75 x 268 mm, Replaces: 1334560C1

2шт.

10

1334559C2

STUD

- mounting, 10 x 275 mm

1шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

12

829-1310

NUT,M10, Cl 10

1шт.

13

1340622C1

TUBE,0.625" Diameter, 751.3 mm Length

- raise, third valve, if equipped

1шт.

14

1340621C1

TUBE,0.625" OD, 746.3,161.5 mm Length

- drop, third valve, if equipped

1шт.

15

1289355C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

16

486004R1

CLAMP

- tube

1шт.

17

224968C2

STRIP

- isomount

1шт.

18

828-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

- hex, 8 x 40 mm, class 10.9

1шт.

19

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm

1шт.

22

1340625C1

SUPPORT

BRACKET - mounting, coupler

1шт.

23

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

24

REF

INSTRUCTION

COUPLER ASSEMBLY - third circuit, See Figure 8-70

1шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 mm - 1.5 x 70 mm

2шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

30

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

32

A180159

CLAMP,10.29mm - 12.32mm

- hose retaining

1шт.

33

1342156C1

HOSE

- drain, coupler, 510 mm

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

35

1334583C3

DECAL

- coupler, shown on Figure 9-154

1шт.

39

1346059C2

SHIM

- auxiliary valve stack, if equipped

2шт.

40

1342182C1

SPACER

- coupler

4шт.

41

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

42

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45 deg adj, 7/8 x 1 inch thread, if equipped, Includes: Ref. 43 and 44

2шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
