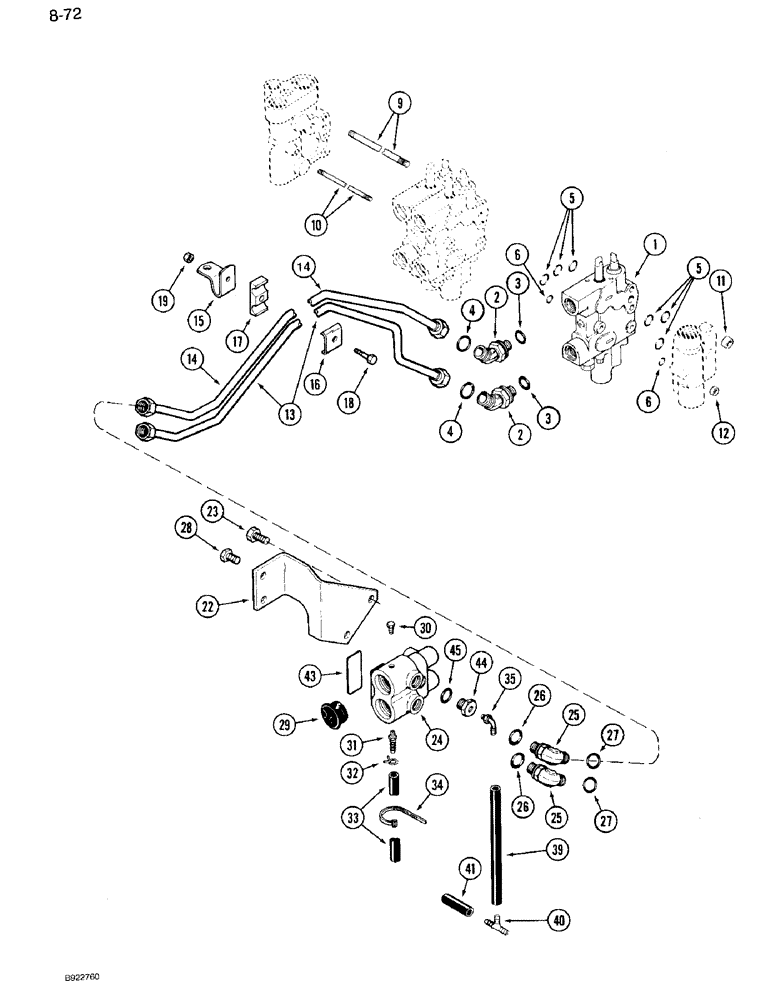

Запчасти Case IH 7120 (8-72) - THIRD CIRCUIT REMOTE HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0018756 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote, See Figures 8-66 - 8-68

1шт.

2

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 3 and 4

2шт.

Straight adaptor is 60-103

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

5

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- seal, valve

2шт.

6

H756783

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- seal, valve

2шт.

9

1334560C1

STUD

- mounting, 12 x 255 mm

2шт.

10

1334559C1

STUD

- mounting, 10 x 275 mm

1шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

12

829-1310

NUT,M10, Cl 10

1шт.

13

1289148C1

HYD TUBE

TUBE - raise

1шт.

14

1289147C1

TUBE

- drop

1шт.

15

1289355C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

16

486004R1

CLAMP

- tube

1шт.

17

224968C2

STRIP

- isomount

1шт.

18

828-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

- hex, 8 x 40 mm, class 10.9

1шт.

19

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm, class 10

1шт.

22

1334201C1

BRACKET

- coupler, right

1шт.

23

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

24

REF

INSTRUCTION

COUPLER ASSEMBLY - hydraulic, See Figure 8-70

1шт.

25

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 26 and 27

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

28

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

29

1954126C1

PLUG

CAP - dust, coupler

2шт.

30

221-849

PLUG,Hex Soc, 1/8"-27

- hex, 1/8 inch PT

1шт.

31

1282227C1

FITTING

- hose, drain

1шт.

32

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

1шт.

33

1272488C1

HYDRAULIC HOSE,6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

- Drain, Coupler 6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie

1шт.

35

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

- coupler, 90 degree

1шт.

39

NSS

NOT SOLD SEPARAT

HOSE - coupler, elbow to tee, 280 mm, order 427683C2 and, Serial Range: cut-length

1шт.

40

1289479C1

TEE

- hose, barbed

1шт.

41

NSS

NOT SOLD SEPARAT

HOSE - drain, tee to tee, 65 mm, order 427683C2 and, Serial Range: cut-length

1шт.

42

NSS

NOT SOLD SEPARAT

HOSE - drain, coupler elbow, 330 mm, used without hitch, order 427683C2 and, Serial Range: cut-length

1шт.

43

1334583C3

DECAL

- coupler, shown on Figure 9-154

1шт.

44

1334586C1

PLUG

- drain, coupler

1шт.

45

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.
