Запчасти Case IH 7120 (8-70) - QUICK DISCONNECT COUPLERS (08) - HYDRAULICS

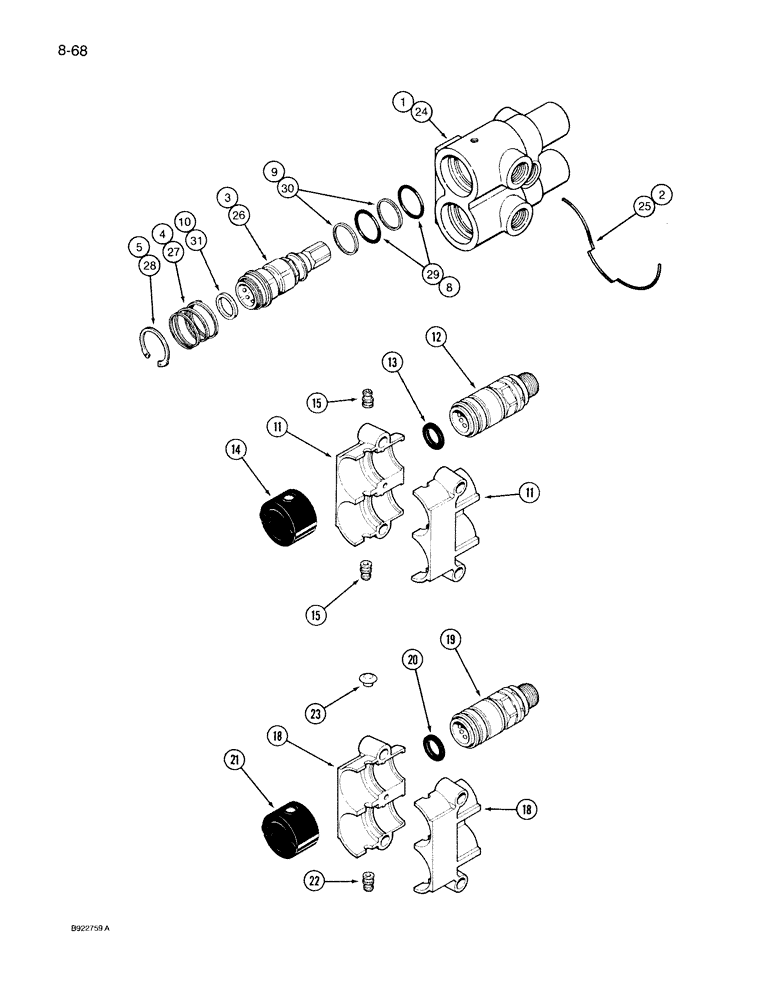

Схема запчастей Case IH 7120 - (8-70) - QUICK DISCONNECT COUPLERS (08) - HYDRAULICS
25
15
20
15
2
5
22
11
27
3
13
19
29
12
18
28
21
31
18
9
23
11
10
4
24
14
8
26
30
1

Артикул

Название

Примечание

Количество

92912C3

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Includes: Ref. 1 - 10, Serial Range: -AJB0018756

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - coupler, Serial Range: -AJB0018756

1шт.

2

93329C1

SPRING

RING - retainer, Serial Range: -AJB0018756

1шт.

3

93328C3

COUPLING, QUICK, FEM

- coupler, Serial Range: -AJB0018756

2шт.

The screw that is in the bottom of the cartridge, centering spring screw NSS as of 1/15/98, this is not service separately

1шт.

4

93330C1

VALVE SPRING

SPRING - tension, Serial Range: -AJB0018756

2шт.

5

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162, Serial Range: -AJB0018756

2шт.

93331C1

SEAL KIT

Inc. 8 - 10, seal, coupler, kit no longer available, order components, Serial Range: -AJB0018756

1шт.

8

347070R1

O-RING,1.301" ID x 0.07" Width

- 1-5/16 x 1-7/16 inch, Serial Range: -AJB0018756

4шт.

9

93332C1

SEAL ASSY.

SEAL - slipper, Serial Range: -AJB0018756

4шт.

10

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- interface, Serial Range: -AJB0018756

2шт.

1342158C3

COUPLING, BREAK AWAY

COUPLER ASSEMBLY - hydraulic, quick disconnect, not serviced separately, order components, Includes: Ref, 11 - 15, First and Third Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

11

1342106C1

CLAMP

- coupler, halves, First and Third Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

12

1342102C3

COUPLING, QUICK, FEM,1" - 14

- coupler, First and Third Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

If dlr. says he is looking for the seal, O-ring, on the thread side, order P/N 238-6016. The seal on the tube nut to the coupler will require a STD O-ring, also see SB NTR038 91

1шт.

13

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling, First and Third Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

14

1342105C1

PLUG

CAP - dust, First and Third Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

15

1342104C1

FITTING

- hose, First and Third Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

1342157C3

COUPLING, BREAK AWAY

COUPLER ASSEMBLY - hydraulic, quick disconnect, not serviced separately, order components, Includes: Ref. 18 - 23, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

18

1342106C1

CLAMP

- coupler, halves, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

19

1342102C3

COUPLING, QUICK, FEM,1" - 14

- coupler, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

20

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

21

1342105C1

PLUG

CAP - dust, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

2шт.

22

1342104C1

FITTING

- hose, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

1шт.

23

353-257

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8 inch, Second and Fourth Remotes, Serial Range: AJB0018756-AJB0060499

1шт.

103866A2

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Replaces: 103866A1, Includes: Ref. 24 - 31 First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

4шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - couple, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

1шт.

25

93329C2

SPRING

- retainer, Replaces: 93329C1, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

1шт.

26

93328C3

COUPLING, QUICK, FEM

- coupler, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

2шт.

27

93330C1

VALVE SPRING

SPRING - tension, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

2шт.

28

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, , first, second, third, and fourth remotes 1.625", Int, #162, Start Serial: AJB0060500

2шт.

93331C1

SEAL KIT

KIT - seal, coupler, Includes: Ref. 29 - 31, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

1шт.

29

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

-027, 70 Duro, 1.301" ID x .070" Thk, Replaces P/N 347070R1, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

4шт.

30

93332C1

SEAL ASSY.

SEAL - slipper, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

4шт.

31

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- interface, First, Second, Third, and Fourth Remotes, Start Serial: AJB0060500

2шт.
