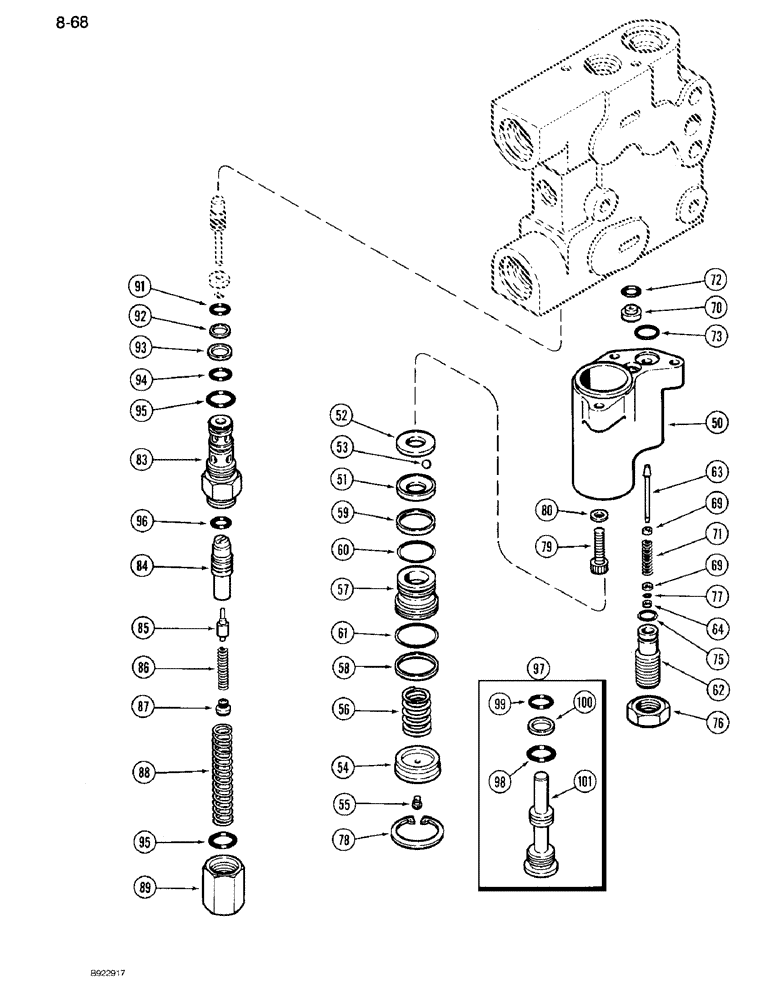

Запчасти Case IH 7120 (8-68) - HYDRAULIC REMOTE VALVE ASSEMBLY, SECOND, THIRD AND FOURTH REMOTE, WITH LOAD CHECK, (CONTD) (08) - HYDRAULICS

1980450C6

VALVE, CONTROL

VALVE ASSEMBLY - remote, continued, Replaces: G108905, 1980312C3, 1980312C4, 1980312C5, and 1980450C5, Includes: P/N 1980160C1 and Ref. 50 - 101

1шт.

1980160C1

SPOOL

DETENT ASSEMBLY - valve, Includes: Ref. 50 - 78

1шт.

50

1976957C1

COVER ASSY

COVER ASSEMBLY - detent

1шт.

51

G108911

WASHER

- detent, ball outer

1шт.

52

G108912

WASHER

- detent, ball inner

1шт.

53

211-256

BALL

- steel, 7/32 inch diameter

8шт.

54

1341975C1

SPRING CUP

RETAINER - detent, Replaces: G108917 and 1980158C1

1шт.

55

G107780

VALVE, CHECK

PLUG - retainer

1шт.

56

G110152

SPRING

- detent

1шт.

G108921

PISTON

ASSEMBLY - detent, Includes: Ref. 57 - 61

1шт.

57

G108908

PISTON

- detent

1шт.

58

G108728

BACK-UP RING

RING - backup, large

1шт.

59

G108922

BACK-UP RING

RING - backup, small

1шт.

60

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

61

A141835

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

- large

1шт.

62

G110300

PLUG

- adjusting, pilot relief

1шт.

63

G110279

VALVE POPPET

POPPET - relief

1шт.

64

G110289

BACK-UP RING

RING - backup

1шт.

69

G110281

SPRING CUP

WASHER - retainer

2шт.

70

G108918

ORIFICE

WASHER - orifice

1шт.

71

G109275

SPRING

- pilot

1шт.

72

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

73

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

75

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

76

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

77

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk

1шт.

78

A30975

SNAP RING,1.188", Int, #118

1шт.

79

61-31016

HEX SOC SCREW,#10 - 24 x 1"

SCREW, Hex Soc Hd, #10-24 x 1"

3шт.

80

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64") #10

3шт.

1971801C2

CHECK VALVE

CHECK ASSEMBLY - load, Replaces: 1971801C1, Includes: Ref. 83 - 96

1шт.

83

NSS

NOT SOLD SEPARAT

BODY - check

1шт.

84

NSS

NOT SOLD SEPARAT

POPPET - main

1шт.

85

NSS

NOT SOLD SEPARAT

POPPET - pilot

1шт.

86

1957817C1

VALVE SPRING

SPRING - poppet

1шт.

87

1957964C1

RETAINER

- spring

1шт.

88

1957965C1

VALVE SPRING

SPRING - main

1шт.

89

NSS

NOT SOLD SEPARAT

CAP - load check, order 1971801C2

1шт.

91

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- poppet

1шт.

92

G110287

BACK-UP RING

RING - backup, inner

1шт.

93

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

RING - backup, outer

1шт.

94

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

95

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

96

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

97

1971475C1

PLUG

ASSEMBLY - lock check, if equipped, Includes: Ref. 98 - 101

1шт.

98

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

99

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- poppet

1шт.

100

G110287

BACK-UP RING

RING - backup, inner

1шт.

101

NSS

NOT SOLD SEPARAT

PLUG - lock check

1шт.
