Запчасти Case IH 7120 (8-59A) - FIRST AND SECOND CIRCUIT REMOTE HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0060500 AND AFTER (08) - HYDRAULICS

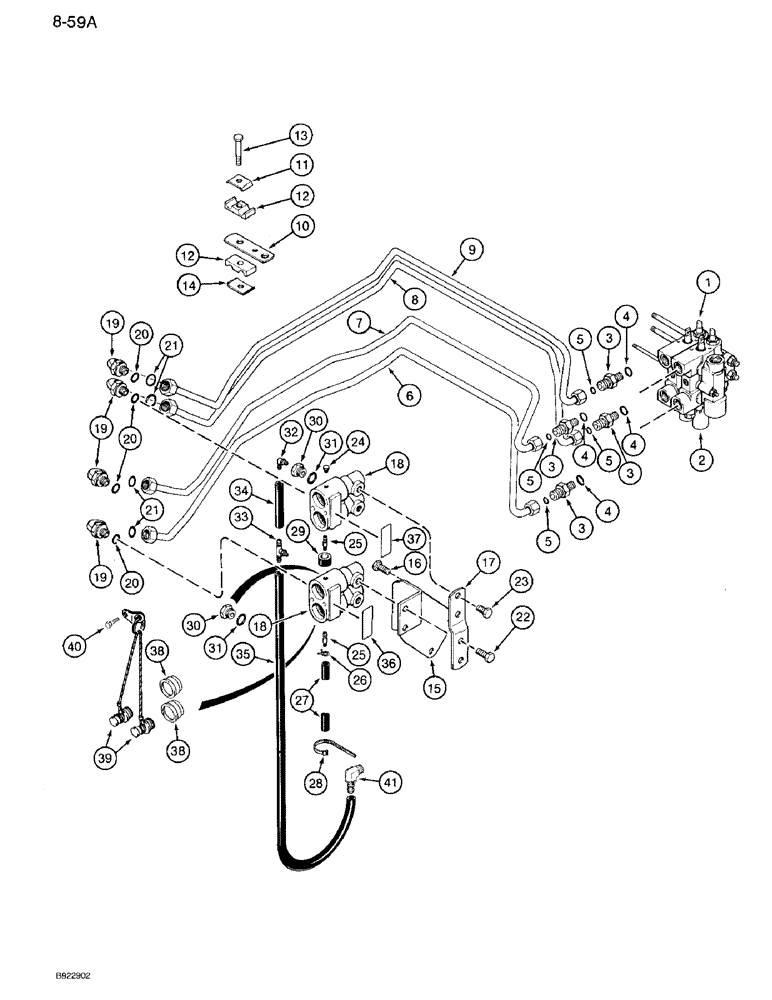

Схема запчастей Case IH 7120 - (8-59A) - FIRST AND SECOND CIRCUIT REMOTE HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0060500 AND AFTER (08) - HYDRAULICS
7
6
17
19
19
3
34
5
16
21
25
15
29
13
3
14
32
28
38
31
30
20
37
2
4
21
30
20
27
19
12
4
38
4
35
5
9
25
41
3
20
3
5
22
10
31
18
1
18
40
12
24
39
33
8
5
4
23
11
26
36

Артикул

Название

Примечание

Количество

1

1980311C7

DISTRIBUTOR

VALVE ASSEMBLY - control, first circuit, 20 gallon, parts list Figures 8-62 - 8-64, Replaces: 1980311C6

1шт.

2

1980450C6

VALVE, CONTROL

VALVE ASSEMBLY - control, second circuit, 30 gallon, parts list Figures 8-66 - 8-68, Replaces: 1980450C5

1шт.

3

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 4 and 5 1"-14 ORFS x 7/8"-14 ORB

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

6

102214A1

HYD TUBE,0.625" OD, 931, 505 mm Length

TUBE - raise, first valve

1шт.

7

102216A1

TUBE,0.625" OD, 932 mm Length

- drop, first valve

1шт.

8

102217A1

HYD TUBE,0.625" OD, 934 mm Length

TUBE - raise, second valve

1шт.

9

102218A1

TUBE,0.625" OD, 925, 549 mm Length

- drop, second valve

1шт.

10

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

11

486004R1

CLAMP

- tube, upper

1шт.

12

224968C2

STRIP

CLAMP - isomount strip, tube

2шт.

13

815-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

14

1348451C1

SUPPORT

CLAMP - tube, lower, includes nut

1шт.

15

102518A1

SUPPORT

BRACKET - coupler, left-hand

1шт.

16

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

17

120012C1

SUPPORT

- coupler

1шт.

18

103866A2

COUPLING

COUPLER ASSEMBLY - hydraulic, parts list Figure 8-70, Replaces: 103866A1

2шт.

19

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 20 and 21

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

2шт.

23

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- hex pipe, 1/8 inch PT

1шт.

25

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

2шт.

26

1348264C1

HOSE CLAMP

CLAMP - hose, 3/8 ID

1шт.

27

106514A1

HYDRAULIC HOSE

- 3/8 (9.5) x 30-13/16 inch (808 mm) long, Coupler drain

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

1272764C1

SEAL

SEAL - drain, coupler

1шт.

30

1334586C1

PLUG

ADAPTER - drain, coupler, special, Includes: Ref. 31

2шт.

31

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

32

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

- 90 degree, second coupler

1шт.

33

1289480C1

TEE

- branch, first coupler

1шт.

34

1289484C1

HOSE

- 1/4 (6.3) x 4-9/16 inch (115 mm) long, coupler to tee, cut from 427683C2, shown below

1шт.

35

1289487C1

HOSE

- 1/4 (6.3) x 22-7/16 inch (570 mm) long, coupler to tee at transmission, cut from 427683C2, shown below

1шт.

36

1334581C2

DECAL

- coupler, first, shown on Figure 9-154

1шт.

37

1334582C2

DECAL

- coupler, second, shown on Figure 9-154

1шт.

38

103871A1

CAP

SOCKET - dust plug

4шт.

39

109021A2

PLUG

- dust, coupler

2шт.

40

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

41

401967R1

ELBOW

- 90 degree, 1/8 PT x 1/4 inch barb end, used on models without hitch

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - 1/4 (6.3) ID x 600 inch (15240 mm) long

1шт.
