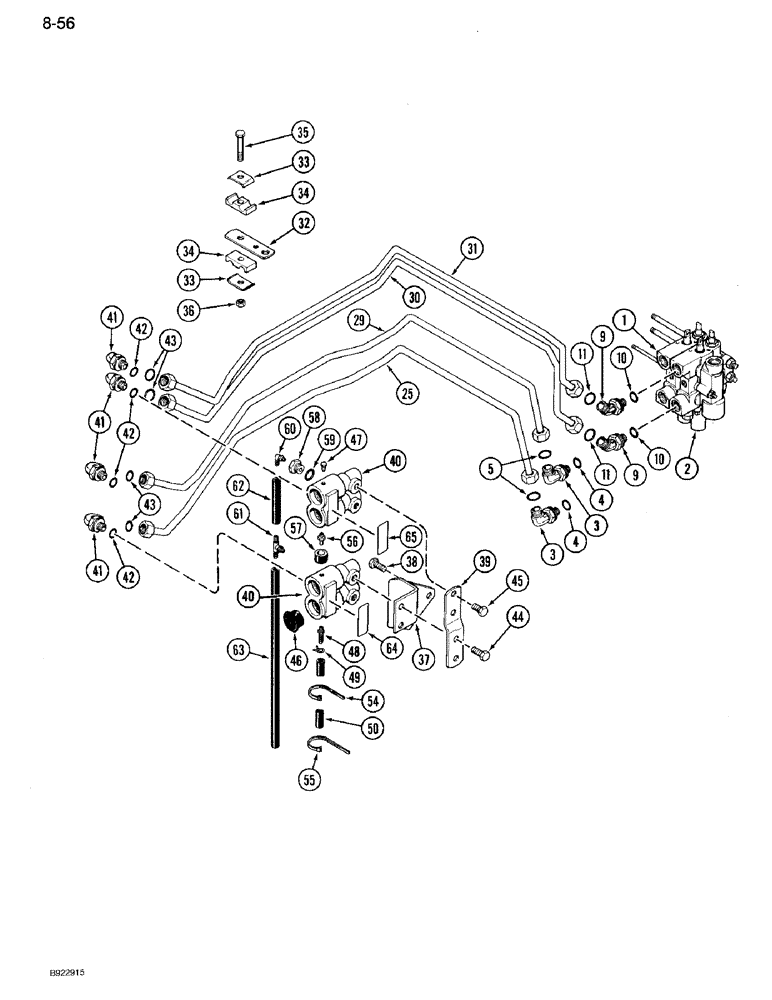

Запчасти Case IH 7120 (8-56) - TWO CIRCUIT REMOTE HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0018756 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, first circuit, 20 gallon, See Figure 8-62 - 8-64

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - control, second circuit, 30 gallon, See Figure 8-66 - 8-68

1шт.

3

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 4 and 5

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

9

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 10 and 11

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

25

1289152C1

TUBE

- raise, first valve

1шт.

29

1289151C1

HYD TUBE

TUBE - drop, first valve

1шт.

30

1289154C1

HYD TUBE

TUBE - raise, second valve

1шт.

31

1289153C1

HYD TUBE

TUBE - drop, second valve

1шт.

32

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

33

486004R1

CLAMP

- tube

2шт.

34

224968C2

STRIP

- isomount, tube

2шт.

35

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

1шт.

36

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10

1шт.

37

1334200C1

BRACKET

- coupler, left

1шт.

38

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

39

120012C1

SUPPORT

- coupler

1шт.

40

REF

INSTRUCTION

COUPLER ASSEMBLY - hydraulic, See Figure 8-70

2шт.

41

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8 x 1 inch thread, Includes: Ref. 42 and 43

4шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

44

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 25 mm, class 10.9

2шт.

45

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

46

1954126C1

PLUG

CAP - dust, coupler

4шт.

47

221-849

PLUG,Hex Soc, 1/8"-27

- hex pipe, 1/8 inch PT

1шт.

48

1282227C1

FITTING

- hose, drain

1шт.

49

210511R1

HOSE CLAMP,#8, 1/2", Spring

CLAMP - hose

1шт.

50

1272488C1

HYDRAULIC HOSE,6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

- Drain, Coupler 6.35 mm ID x 736.00 mm, SAE 30R6 or SAE 30R7

1шт.

54

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie

1шт.

55

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

56

1272765C1

FITTING,1/8" - 27 NPT

- drain, coupler

1шт.

57

1272764C1

SEAL

SEAL - drain, coupler

1шт.

58

1334586C1

PLUG

- drain, coupler

2шт.

59

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

60

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

- 90 degree, second coupler

1шт.

61

1289480C1

TEE

- branch, first coupler

1шт.

62

NSS

NOT SOLD SEPARAT

HOSE - cross, coupler to tee, 115 mm, order 427683C2 and, Serial Range: cut-length

1шт.

63

NSS

NOT SOLD SEPARAT

HOSE - coupler to tee, 510 mm, order 427683C2, Serial Range: cut-length

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - rubber, 1/4 inch ID, 50 foot roll

1шт.

64

1334581C2

DECAL

- coupler, first, shown on Figure 9-154

1шт.

65

1334582C2

DECAL

- coupler, second, shown on Figure 9-154

1шт.
