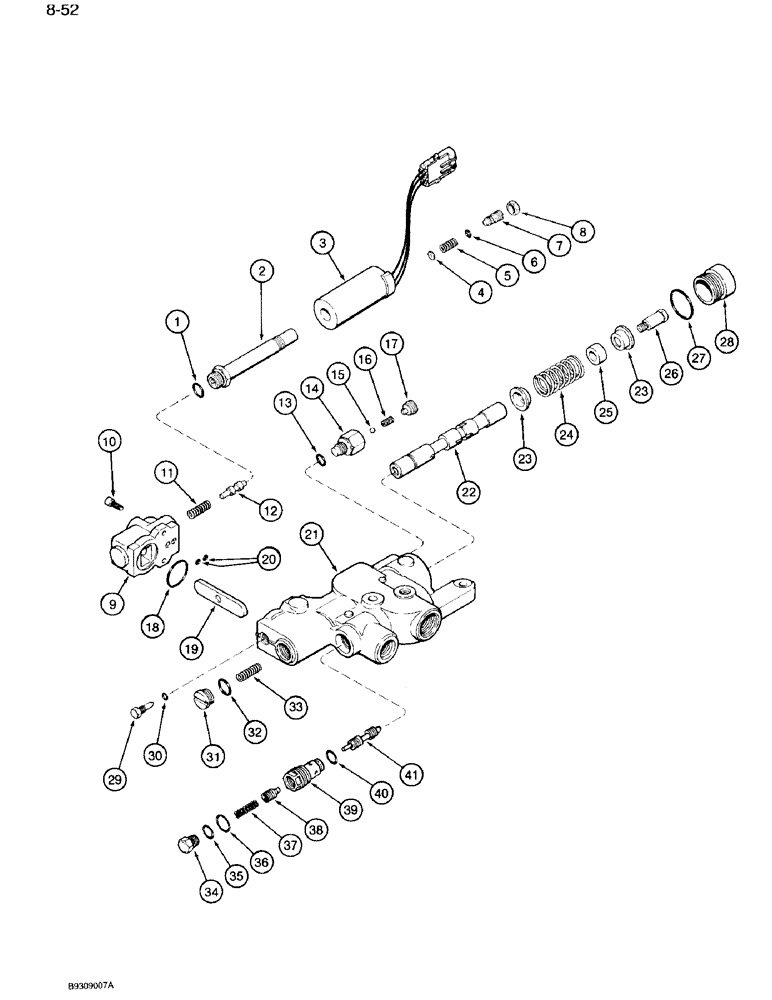

Запчасти Case IH 7120 (8-52) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS

92949C5

VALVE

ASSEMBLY - hitch, Includes: Ref. 1 - 41 and P/N 1346208C1

1шт.

13

N6617

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

1346208C1

SOLENOID

COIL AND CORE ASSEMBLY - solenoid, Includes: Ref. 1 - 8

1шт.

1

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

2

NSS

NOT SOLD SEPARAT

CORE - solenoid, order 1346208C1 coil and core assembly

1шт.

3

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY - solenoid, order 1346208C1 coil and core assembly

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - flat, order 1346208C1 coil and core assembly

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - solenoid, order 1346208C1 coil and core assembly

1шт.

6

A47983

O-RING,2.38mm Thk x 18.82mm ID

- 1/4 ID x 1/8 inch

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG - adjustment, order 1346208C1 coil and core assembly

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - hex, jam, 7/16 inch NF, order 1346208C1 coil and core assembly

1шт.

9

1986877C1

PACKAGE

BODY - solenoid mounting

1шт.

10

1971618C1

SCREW

- machine

2шт.

11

1971620C1

SPRING

- pivot lever

1шт.

12

1986877C1

PACKAGE

KIT - repair, servo, Replaces: 1971601C1

1шт.

1971611C1

PLUG

ASSEMBLY - sensing check, Includes: Ref. 13 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - plug, order 1971611C1 plug assembly

1шт.

15

211-1007

BALL,7/32" Dia

- 7/32", Gr 25, Chrome alloy steel

1шт.

16

1971612C1

VALVE SPRING

SPRING - sensing plug

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - sensing check, order 1971611C1 plug assembly

1шт.

18

1971617C1

O-RING

- 1-3/16 ID x 1/16 inch

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

19

1971609C1

LEVER

- pivot

1шт.

20

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-009, 70 Duro, .208" ID x .070" Thk

2шт.

Part of Seal Kit, P/N 1971624C2

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve, order 92949C5 valve assembly

1шт.

On right side where Ref. 22 fits in, there used to be a locknut plug that fit in 1971622C1 plug, 1971603C1 O-ring.

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - valve, order 92949C5 valve assembly

1шт.

23

1971599C1

WASHER

- special, deep

2шт.

24

1971621C1

SPRING

- valve spool

1шт.

25

1971619C1

SPACER

- valve spool

1шт.

26

1971615C2

SCREW

- spool, Includes: Ref. 27

1шт.

27

238-5125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

- 1-5/16 ID x 3/32 inch

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

28

1971616C1

END ASSY.

CAP ASSEMBLY - end

1шт.

29

1971603C1

PLUG

ASSEMBLY - pivot, Includes: Ref. 30

1шт.

30

1971604C1

O-RING

- 15/64 ID x 1/16 inch

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

31

1971614C1

PLUG

ASSEMBLY - slotted, Includes: Ref. 32

1шт.

32

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- plug

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

33

1971620C1

SPRING

- pivot lever

1шт.

1346209C1

PACKAGE

KIT - lockout, load check, Includes: Ref. 34 - 41

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - lockout, load check, order 1346209C1 kit, Includes: Ref. 34

1шт.

35

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- lockout plug

1шт.

36

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

37

NSS

NOT SOLD SEPARAT

SPRING - poppet, order 1346209C1 kit

1шт.

38

NSS

NOT SOLD SEPARAT

POPPET - lockout plunger, order 1346209C1 kit

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - lockout plunger, order 1346209C1 kit

1шт.

40

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N 1971624C2

1шт.

41

NSS

NOT SOLD SEPARAT

PLUNGER ASSEMBLY - lockout, order 1346209C1 kit

1шт.

1971624C2

SEAL KIT

KIT - seal, valve, Includes: Ref. 1, 6, 13, 18, 20, 27, 30, 32, 35, 36, and 40

1шт.
