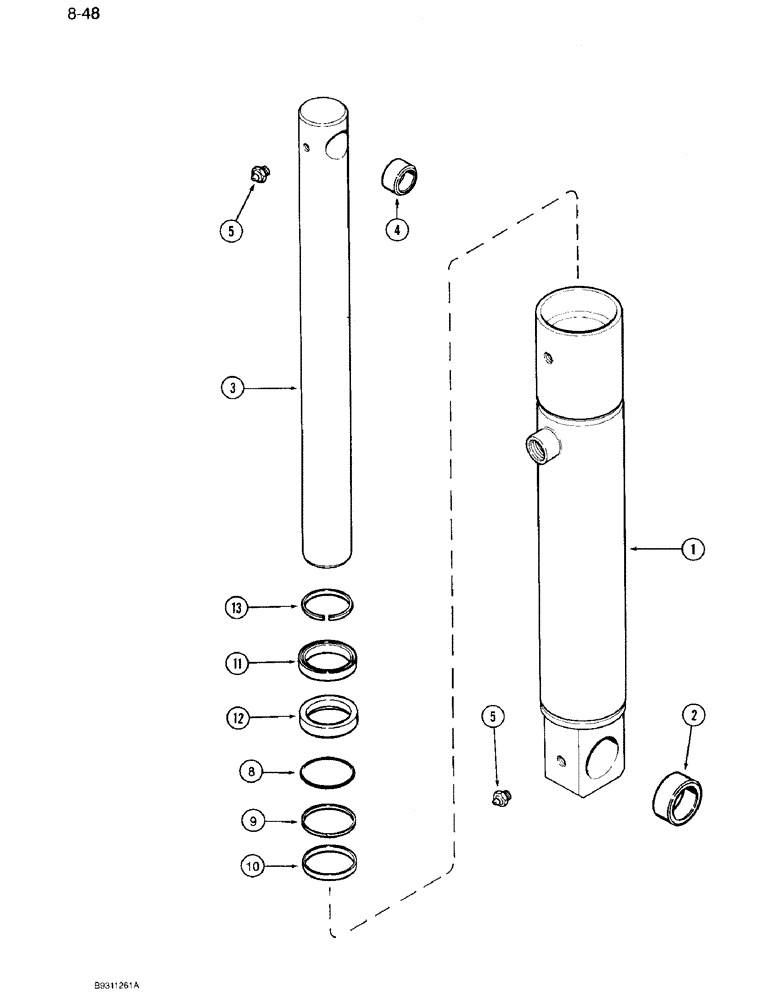

Запчасти Case IH 7120 (8-48) - HITCH CYLINDER ASSEMBLY, 1-3/4 INCH BORE, 7120 TRACTOR (08) - HYDRAULICS

1266760C4

CYLINDER ASSY.

CYLINDER ASSEMBLY - 1-3/4 inch bore x 10-3/4 inch stroke, hitch, Replaces: 1266760C1 and 1266760C3, Includes: Ref. 1 - 13

1шт.

1

1341304C3

BODY

ASSEMBLY - cylinder, Replaces: 1341304C2, Inlcudes: Ref. 2

1шт.

2

149638C1

BUSHING,31.8mm ID x 38.16mm OD x 16mm L

- pivot, cylinder

2шт.

3

1341303C2

PISTON ROD

ROD - piston

1шт.

4

149636C1

BUSHING,19.25mm ID x 25.46mm OD x 13mm L

- pivot, rod

2шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight 1/4 inch drive type

2шт.

80362C1

SEAL KIT

SEAL KIT - cylinder, Includes: Ref. 8 - 13

1шт.

8

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

70 Duro, 1.799" ID x .103" Thk

1шт.

9

145387C1

WASHER

RING - backup

1шт.

10

145388C1

SEALING RING

RING - seal

1шт.

11

403845R1

WIPER SEAL

WIPER- piston rod

1шт.

12

1261097C1

WIPER SEAL

- piston

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining, if used

1шт.
