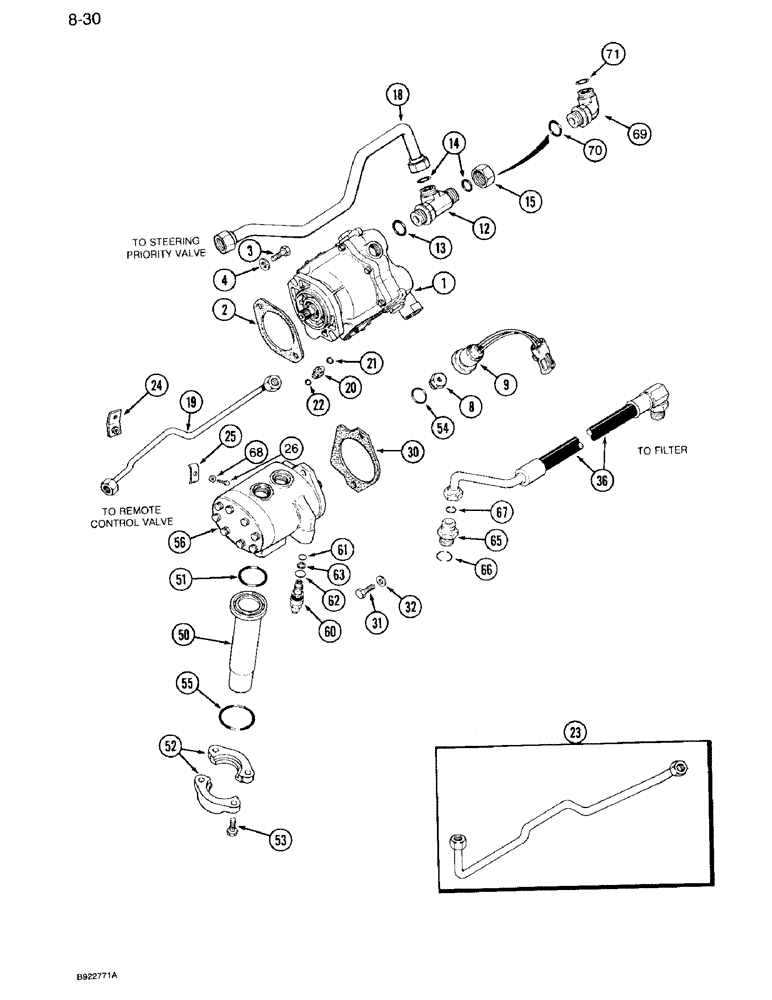

Запчасти Case IH 7120 (8-30) - HYDRAULIC PUMP SYSTEM, TRANSMISSION SERIAL NUMBER AJB0055386 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston hydraulic, See Figures 8-34 - 8-38

1шт.

2

144169C2

GASKET,0.79mm Thk

- mounting, pump

1шт.

3

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm

2шт.

8

1334586C1

PLUG

ADAPTER - coupler drain

1шт.

9

1546463C1

SWITCH, PRESSURE

SWITCH ASSEMBLY - low pressure, Replaces: A187770

1шт.

12

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

- adjustable, 1-5/16 x 1-7/16 x 1-7/16 inch thread, if used, Includes: Ref. 13 and 14

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- boss end, 1-11/64 ID x 1/8 inch

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

2шт.

15

201-901

CAP,1 7/16"-12 ORFS

- tube, 1-7/16 inch thread, if used

1шт.

18

1342131C1

TUBE

- supply, priority valve

1шт.

19

1342146C2

HYD TUBE

TUBE - signal, pump, with hitch

1шт.

20

1957867C1

FILTER SCREEN

SCREEN ASSEMBLY - pump, compensator, Includes: Ref. 21 and 22

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

23

1342147C2

HYD TUBE

TUBE - signal, pump, without hitch

1шт.

24

1334401C1

SUPPORT

BRACKET - clamp

1шт.

25

535307R1

CLAMP

- tube

1шт.

26

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

30

1349060C1

GASKET,0.79mm Thk

- mounting, pump

1шт.

31

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

32

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm

2шт.

36

REF

INSTRUCTION

HOSE - pump to filter, See Figure 8-6, ref. 36

1шт.

50

1340541C1

TUBE,194 mm Length

- inlet, dual pump

1шт.

51

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

52

300525R1

CLAMP

- split, flange halves

2шт.

53

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

55

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

56

115214A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, dual gear, Replaces: 1980421C1, Includes: Ref.60 - 63 and P/N 1986849C1

1шт.

432244A3R

REMAN-HYD PUMP

7110, 7120 all TRANSMISSION SERIAL NUMBER AJB0055386 AND AFTER (10/87-12/93); Reman for New P/N 115214A1

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

60

1986872C1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref.61 - 63

1шт.

61

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

62

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 ID x 3/32 inch

1шт.

63

N7319

RING

WASHER - backup

1шт.

1986849C1

SEAL KIT

KIT - seal repair

1шт.

65

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/16 inch O-ring, Incl. Ref. 66 and 67

1шт.

66

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

67

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

68

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

1шт.

69

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

- 90 deg, 1-7/16-12 face x 1-5/16-12 inch adj. O-ring, if used, Includes: Ref. 70 and 71

1шт.

70

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- boss end, 1-11/64 ID x 1/8 inch

1шт.

71

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

1шт.
