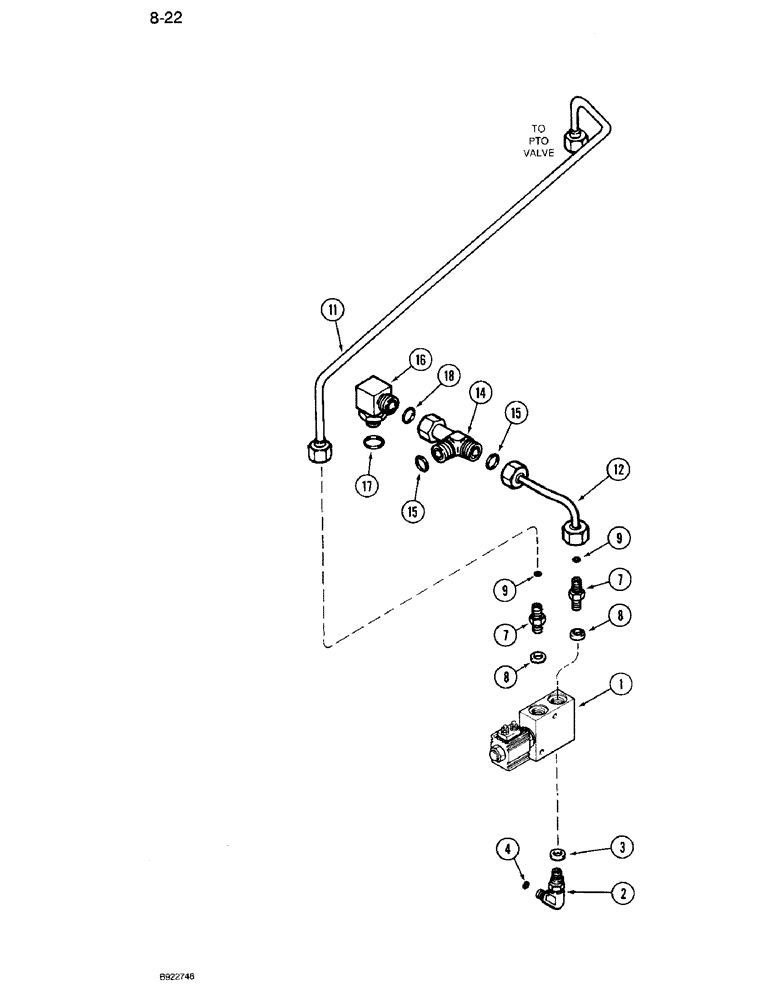

Запчасти Case IH 7120 (8-22) - DIFFERENTIAL LOCK SOLENOID VALVE TUBES, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0044915 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, See Figure 8-24

1шт.

2

201-322

ELBOW,90 Degree Elbow, 11/16" - 16 Female ORFS x 9/16" - 18 Male ORB

- 90 degree adjustable swivel, 9/16 x 11/16 inch thread, Includes: Ref. 3 and 4

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

7

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 8 and 9 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

11

1334356C1

HYD TUBE

TUBE - supply

1шт.

12

1974490C1

HYD TUBE

TUBE - return

1шт.

14

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

- swivel, 13/16 x 13/16 x 13/16 inch thread, Includes: Ref. 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

2шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º Adj, 9/16 x 13/16 inch thread, Incl Ref 17 and 18

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seal

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
