Запчасти Case IH 7120 (8-10) - PTO HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0044915 (08) - HYDRAULICS

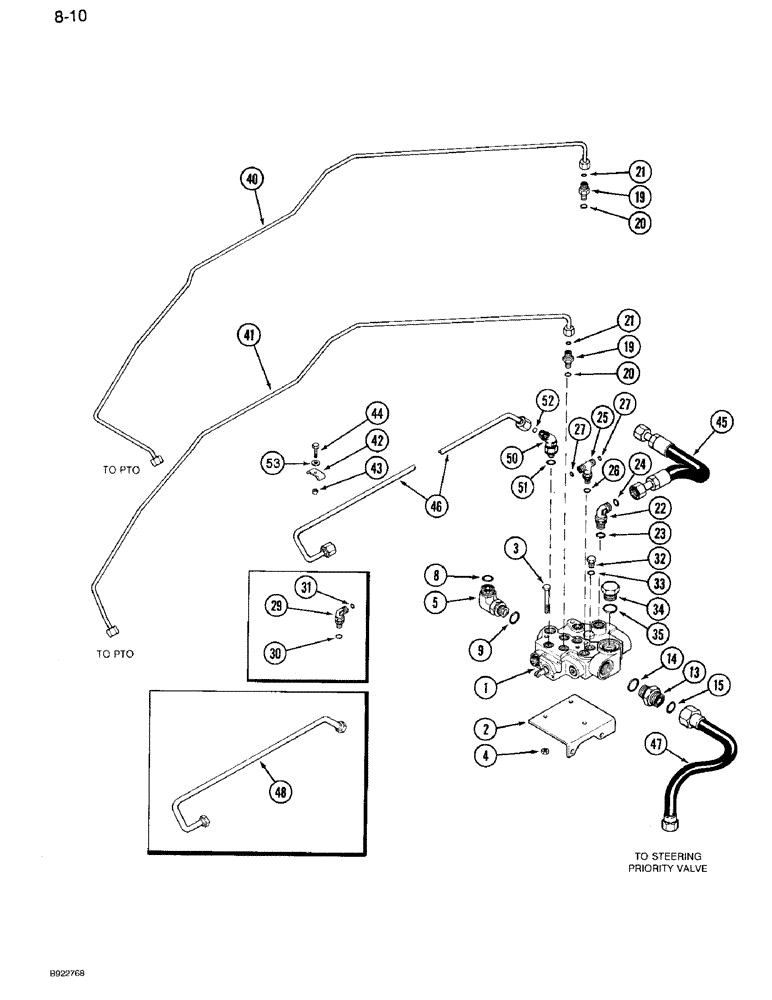

Схема запчастей Case IH 7120 - (8-10) - PTO HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0044915 (08) - HYDRAULICS
50
31
21
3
53
51
2
20
34
48
44
33
45
27
42
15
21
43
26
19
29
14
25
40
47
32
9
24
5
1
8
27
13
46
52
30
20
22
4
23
19
41
35

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - PTO, See Figures 8-14 and 8-16

1шт.

2

1334649C1

BRACKET

- mounting, valve

1шт.

3

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 x 70 mm, class 10.9

3шт.

4

30168R1

NUT,M10, Cl 10

- hex, 10 mm

3шт.

5

1957845C1

ELBOW

VALVE ASSEMBLY - check, Includes: Ref. 8 and 9

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

13

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

ADAPTER - straight, 1-5/16 x 1-3/16 inch, Includes: Ref. 14 and 15

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- boss end, 1-11/64 ID x 1/8 inch

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 20 and 21 11/16"-16 ORFS x 9/16"-18 ORB

5шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, adjustable, 3/4 x 13/16" thread, Incl. Ref. 23 and 24

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

25

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

- adjustable, 9/16 x 11/16 x 11/16 inch thread, with hitch, Includes: Ref. 26 and 27

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

2шт.

29

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree adjustable, 9/16 x 11/16 inch thread, without hitch, Includes: Ref. 30 and 31

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

32

76349

PLUG,9/16" - 18 ORB

Assy, Incl. Ref. 33 Hex Hd, 9/16"-18 ORB

2шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Includes Ref. 35 Hex Hd, 1 5/16"-12 ORB

1шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

40

1289236C1

TUBE

- clutch, PTO, Serial Range: -AJB0018756

1шт.

40

1978559C1

HYD TUBE

TUBE - clutch, PTO, Start Serial: AJB0018756

1шт.

41

1289237C1

TUBE

- brake, PTO, Serial Range: -AJB0018756

1шт.

41

1342097C1

TUBE

- brake, PTO, Start Serial: AJB0018756

1шт.

42

535307R1

CLAMP

- tube

2шт.

43

3072723R1

SPACER

- clamp

2шт.

44

30194R1

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, 6 x 25 mm

2шт.

45

1978417C1

HOSE ASSY.

HOSE - drain, PTO

1шт.

46

1974489C1

HYD TUBE,0.5" OD

TUBE - jump, PTO

1шт.

47

1974505C1

HOSE ASSY.,12.7mm ID x 558.8mm L, SAE 100R2

HOSE - inlet, PTO

1шт.

48

1348354C1

HYD TUBE,0.5" OD, 516.4, 55 mm Length

TUBE - return, regulator valve

1шт.

Use only with 1343635C4 valve assembly. See Figure 8-16.

1шт.

50

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree adjusting, 9/16 x 13/16 inch thread, Includes: Ref. 51 and 52

1шт.

51

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Face end

1шт.

53

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

2шт.

Выбрано товаров: 42
