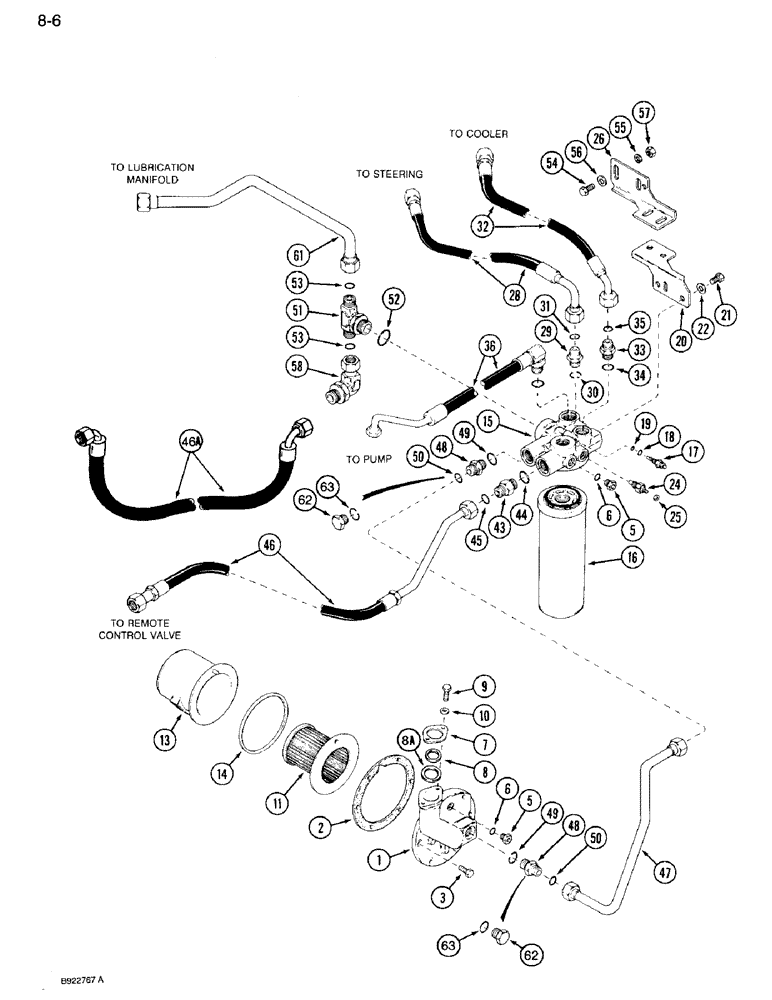

Запчасти Case IH 7120 (8-06) - HYDRAULIC TRANSMISSION FILTER, TRANSMISSION SERIAL NUMBER AJB0055386 AND AFTER (08) - HYDRAULICS

1

1342139C1

BASE

PLATE ASSEMBLY - base, dual pump

1шт.

2

139241C3

GASKET

- base, dual pump

1шт.

3

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Hd, 9/16"-18 ORB

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

7

1976758C1

MOUNTING CLIP

RETAINER - suction tube

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8a

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

9

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 25 mm

2шт.

10

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

- flat, 11 x 24 x 3 mm

2шт.

11

1348335C1

SCREEN

- pump inlet

1шт.

13

1348337C1

SHROUD

ASSEMBLY - suction screen, Includes: Ref. 14

1шт.

14

1342641C1

GASKET,183.6mm ID x 192mm OD x 3mm Thk

- shroud

1шт.

1343732C1

FILTER ASSY

FILTER ASSEMBLY - hydraulic, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

16

1971728C1

FILTER, ELEMENT

ELEMENT- filter

1шт.

17

1957801C1

PRESSURE SWITCH

SWITCH ASSEMBLY - pressure

1шт.

18

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

19

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

20

1348269C1

BRACKET

- filter mounting, lower

1шт.

21

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

2шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

24

A176566

TRANSMITTER

SENDER - temperature, coolant

1шт.

25

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

26

1348268C1

BRACKET

- filter mounting, upper

1шт.

28

1342123C1

HOSE ASSY.

HOSE - return, steering

1шт.

29

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 30 and 31 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

1348339C1

HOSE ASSY.,19.05mm ID x 3226mm L, SAE 100R1

HOSE - cooler return

1шт.

33

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 34 and 35 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

36

1348346C1

HOSE ASSY.,25.4mm ID x 595mm L, SAE 100R1

HOSE -, Serial Range: pump-filter

1шт.

43

1971848C2

UNION

VALVE ASSEMBLY - check, return hose, Includes: Ref. 44 and 45

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

45

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

46

1348272C1

HOSE ASSY.

HOSE - 535 mm long, auxiliary return, if used

1шт.

46a

109893A1

HOSE,25.4mm ID x 737mm L

- 737 mm long, auxiliary return, if used

1шт.

47

1348247C1

TUBE,1" OD, 509.3, 213.3 mm Length

- filter return, if used, may be replaced with Ref. 62 plug on some models

1шт.

48

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/16 inch O-ring, if used, Incl. Ref. 49 and 50

2шт.

49

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

50

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

51

201-405

TEE,2"-12 x 1 7/8"-12 Br, ORFS

- 1-7/8-12 adj O-ring branch x 2-12 inch face x face, Includes: Ref. 52 and 53

1шт.

52

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

53

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

54

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

55

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

56

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

57

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

58

201-353

ELBOW,90 Degree Elbow, 2" - 12 Female ORFS x 1-7/8" - 12 Male ORB

- 90 deg adjustable swivel

1шт.

61

1348257C1

TUBE,1.5" OD, 395.1, 265.8 mm Length

- lube manifold

1шт.

62

273916

PLUG,Hex, 1-5/16" - 12 ORB

if used, Includes Ref. 63 Hex Hd, 1 5/16"-12 ORB

2шт.

63

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 ID x 1-13/32 inch

1шт.
