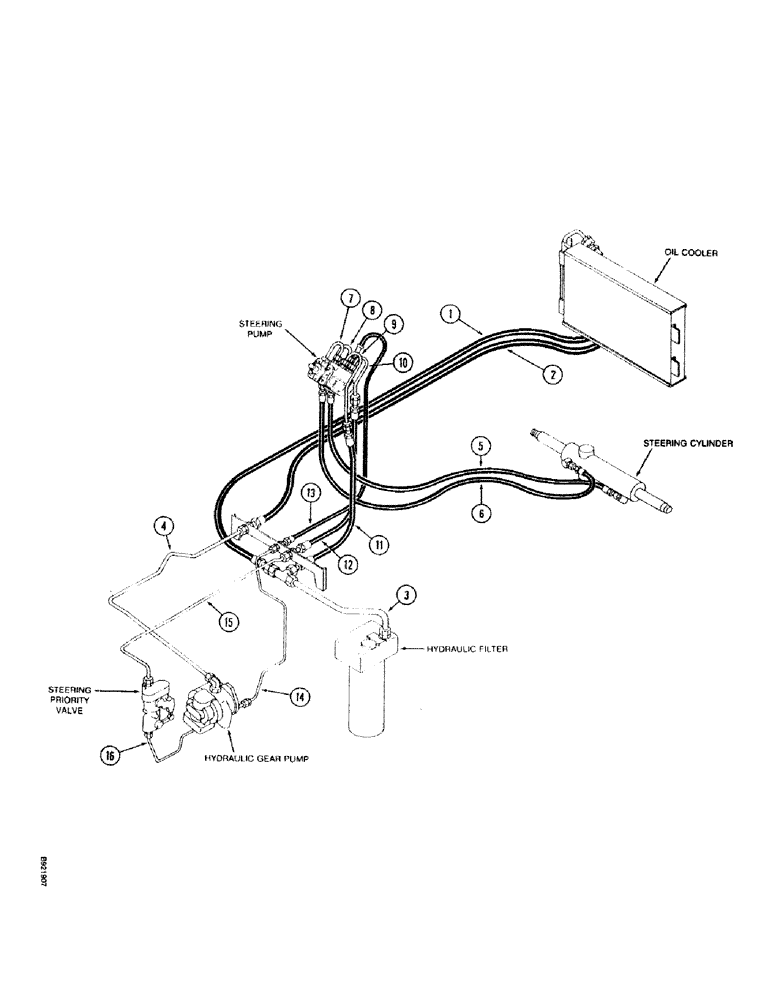

Запчасти Case IH 7120 (1-30) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE, PRIOR TO SERIAL NUMBER JJA0027701 (00) - PICTORIAL INDEX

1

Upper Oil Cooler Hose, Pg 5-19

1шт.

2

Lower Oil Cooler Hose, Pg 5-19

1шт.

3

Oil Cooler Return Tube, Pg 5-19

1шт.

4

Pump Bulkhead Tube, Pg 8-27

1шт.

5

Right Turn Steering Hose, Pg 5-11, 5-13

1шт.

6

Left Turn Steering Hose, Pg 5-11, 5-13

1шт.

7

Left Turn Steering Tube, Pg 5-11, 5-13

1шт.

8

Right Turn Steering Tube, Pg 5-11, 5-13

1шт.

9

Steering Return Tube, Pg 5-11, 5-13

1шт.

10

Steering Upper Supply Tube, Pg 5-11, 5-13

1шт.

11

Steering Return Hose, Pg 5-11, 5-13

1шт.

12

Steering Supply Hose, Pg 5-11, 5-13

1шт.

13

Steering Signal Hose, Pg 5-11, 5-13

1шт.

14

Front Signal Steering Tube, Pg 5-7

1шт.

15

Steering Supply Tube, Pg 5-7

1шт.

16

Rear Signal Steering Tube, Pg 5-7

1шт.
