Запчасти Case IH 7120 (7-14) - TRAILER BRAKE (07) - BRAKES

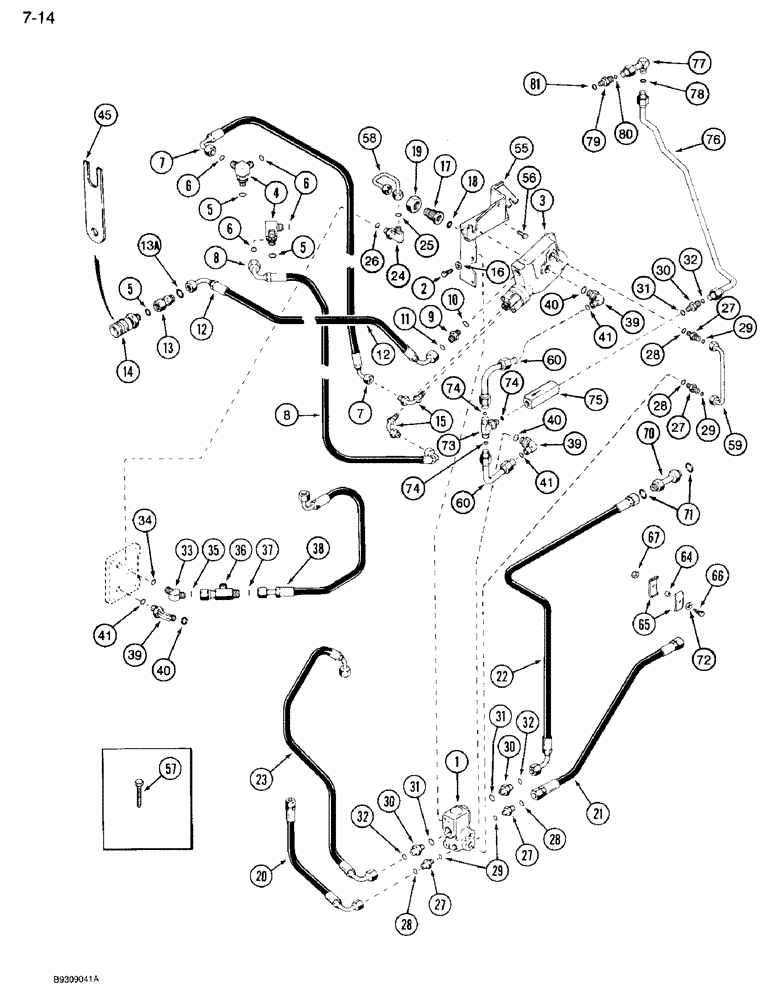

Схема запчастей Case IH 7120 - (7-14) - TRAILER BRAKE (07) - BRAKES
41
22
10
9
26
7
28
20
11
12
28
17
30
32
71
74
1
38
77
28
39
45
36
60
5
37
70
78
35
23
76
64
2
40
57
74
65
27
21
60
30
33
80
58
74
13
4
56
25
30
41
32
29
19
27
72
29
34
5
24
40
6
67
75
16
14
8
27
3
32
31
6
31
12
5
81
39
13a
66
27
40
79
7
18
28
15
55
29
73
39
6
59
31
41
8

Артикул

Название

Примечание

Количество

1

1346284C1

VALVE

ASSEMBLY - priority, trailer brake, includes seal repair kit

1шт.

1986932C1

PACKAGE

KIT - seal repair, trailer brake priority valve

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

2шт.

3

1343653C2

VALVE

- trailer brake, includes seal repair kit

1шт.

1986883C1

SEAL KIT

KIT - seal repair, trailer brake valve

1шт.

4

1975204C1

FITTING,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- special tee, Includes: Ref. 5 and 6

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

7

1955121C1

HOSE ASSY.

HOSE - trailer brake left

1шт.

8

1955122C2

HOSE

- trailer brake right

1шт.

9

1975213C2

ADAPTER

- trailer brake coupler, Includes: Ref. 10 and 11

1шт.

10

1328179C1

O-RING,15.4mm ID x 2.1mm Width

- 15.4 ID x 2.1 mm

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

103774A2

HOSE

- coupler

1шт.

13

1975266C1

HYD TUBE,12 mm OD

TUBE - coupler adapter

1шт.

13a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

3131463R91

QUICK MALE COUPLING

COUPLER - trailer brake

1шт.

15

1975290C1

HYD TUBE,0.312" OD

TUBE - brake supply

2шт.

16

895-10008

WASHER,M8 x 16 x 1.6

- flat, 9 x 17 x 1.6 mm, for slotted mounting hole

1шт.

17

1975206C1

FITTING

- adapter return, Includes: Ref. 18

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

19

825-1424

NUT,M24, Cl 8

- hex, 24 mm

1шт.

20

1955123C1

HOSE ASSY.

HOSE - priority pilot inlet

1шт.

21

1955126C2

HOSE

- steering pilot

1шт.

22

1955134C2

HOSE ASSY.

HOSE - steering supply

1шт.

23

1955135C1

HOSE ASSY.

HOSE - priority valve supply

1шт.

24

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 deg adj., 11/16-16 face x 9/16-18 inch O-ring, Includes: Ref. 25 and 26

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - short, Incl Ref. 28 and 29 11/16"-16 ORFS x 9/16"-18 ORB

4шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

30

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 31 and 32 13/16"-16 ORFS x 3/4"-16 ORB

3шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSEMBLY - 45 degree adjustable jumpsize, 9/16-18 x 13, Includes: Ref. 34 and 35

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

36

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

ASSEMBLY - swivel, 13/16 x 13/16 x 13/16 inch thread, Includes: Ref. 37

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

38

1978404C1

HOSE ASSY.,9.5mm ID x 787mm L, SAE 100R1

HOSE - marker return 31" overall length - 100R17 - 3/8" hose - both female ends - (1) 90 degree end w/o-ring face seal, 13/16"-16 thread - (1) straight o-ring face seal end with 11/16"-16 thread

1шт.

39

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Assy - 90º Adj, 9/16 x 13/16 inch, Incl Ref 40 and 41

3шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

103118A1

SUPPORT ASSY.

SUPPORT - trailer brake

1шт.

55

1955283C2

SUPPORT ASSY.

BRACKET - cable and valve mounting

1шт.

56

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

3шт.

57

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

1шт.

58

1955333C1

HYD TUBE,10 mm OD

TUBE - trailer brake valve return

1шт.

59

102562A1

TUBE,0.375" OD, 190, 35 mm Length

- trailer brake pilot

1шт.

60

102563A1

TUBE,0.5" OD, 70.17 mm Length

- trailer brake priority

2шт.

64

3072723R1

SPACER

- clamp

1шт.

65

535307R1

CLAMP

- tube

2шт.

66

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

67

832-41306

NUT,M6 x 1, Cl 10

NUT, LOCK, M6 x 1, Cl 10

1шт.

70

1348300C1

TUBE,0.5" OD, 104.2 mm Length

- steering supply

1шт.

71

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

72

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12.5 x 1.6 mm

1шт.

73

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

- 3/4-16 adj O-ring branch x 13/16-16 inch face x face, Includes: Ref. 74

1шт.

74

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

75

1348540C1

CHECK VALVE

VALVE - check

1шт.

76

106510A1

HYD TUBE,0.5" OD, 353.7,92.8 mm Length

TUBE - trailer brake pressure, used with Ref. 77 elbow

1шт.

77

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

- 90 degree, 13/16-16 inch face seal x swivel face, attaches to Ref. 76 pressure tube, Includes: Ref. 78

1шт.

78

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

79

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring, replaces park lock cover plug on some models, Includes: Ref. 80 and 81

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

246116A1

PACKAGE

KIT hydraulic trailer brake, dealer installed, available through wholegoods system.

1шт.

81

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
