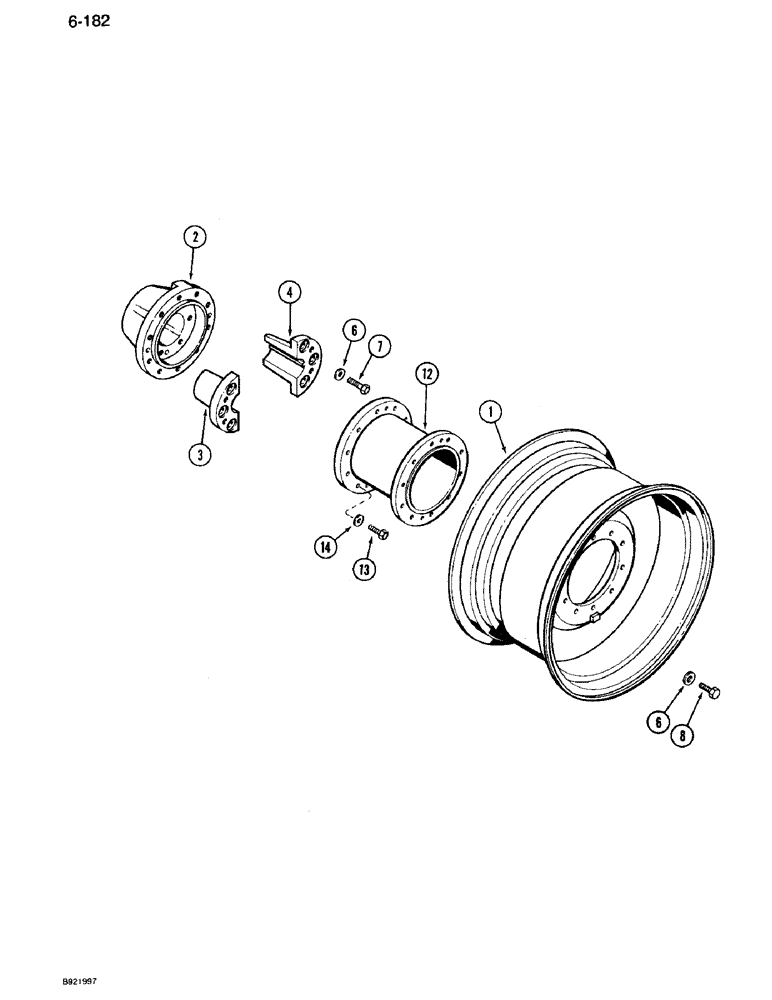

Запчасти Case IH 7120 (6-182) - STEEL DUAL WHEELS FOR 118 INCH AXLES, 32 AND 34 INCH, 7120 TRACTOR (06) - POWER TRAIN

1978514C1

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1978542C1

WHEEL

- rear, steel, for 24.5-32 tire

2шт.

1978513C1

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

1978541C1

WHEEL

- rear, steel, for 23.1-34 tire, 10 bolt rim, if used

2шт.

107411A1

WHEEL ASSY.

WHEEL ATTACHMENT - dual, machinery item, Includes: Ref. 1

1шт.

1

102890A1

WHEEL

- rear, steel, for 23.1-34 tire, 8 bolt rim, if used, not shown

2шт.

1334527C3

HUB

- wheel, rear 10 bolt, machinery item, Replaces: A67687, Includes: Ref. 2 - 8

2шт.

2

A180916

HUB

- wheel

1шт.

3

1334526C2

BUSHING

- wheel, 4 inch ID

1шт.

4

1334525C2

BUSHING

- wheel, keyed, 4 inch ID

1шт.

6

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

16шт.

7

113-839

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 8, Full Thd

Used as jackscrew Hex, 7/8"-9 x 3 1/2", G8, Full Thd

6шт.

8

426-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- hex, 7/8 NC x 2 inch, Grade 8

10шт.

A67939

COUPLING

SPACER KIT - dual wheel, 13 inch, machinery item, Includes: Ref. 12 - 14

1шт.

12

1974405C1

SPACER

- dual wheel, 13 inch, Replaces: 1960858C1

2шт.

13

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

20шт.

14

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

- flat, 15/16 x 1-3/4 x 7/32 inch, hardened

20шт.
