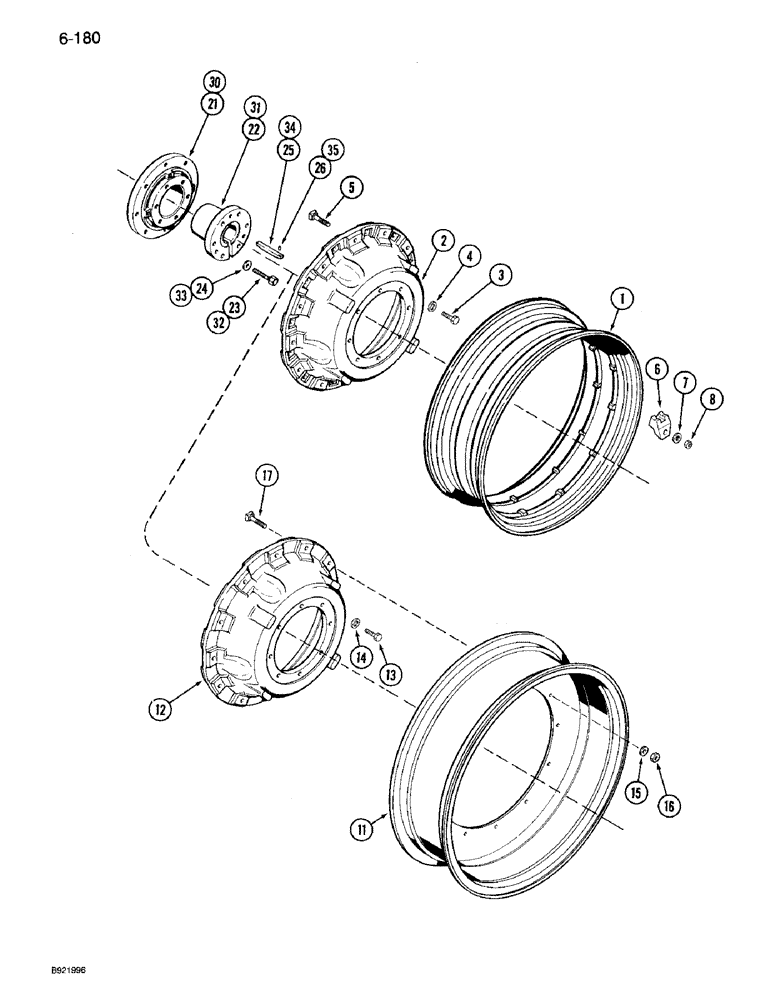

Запчасти Case IH 7120 (6-180) - UNIVERSAL CAST REAR WHEELS, SINGLE OR DUAL, 38, 42 AND 46 INCH RIMS (06) - POWER TRAIN

A67688

WHEEL ASSY.

WHEEL ATTACHMENT - rear, universal cast, machinery item, Includes: Ref. 1 - 8

1шт.

1

1334480C1

RIM

- wheel, for 18.4-38 tire

2шт.

A67690

RIM

WHEEL ATTACHMENT - rear, universal cast, machinery item, Includes: Ref. 1 - 8

1шт.

1

1334481C1

RIM

- wheel, for 20.8-38 tire

2шт.

A67779

WHEEL ASSY.

WHEEL ATTACHMENT - rear, universal cast, machinery item, Includes Ref. 1 - 8

1шт.

1

1334482C1

RIM

- wheel, for 18.4-42 tire

2шт.

A67933

WHEEL ASSY.

WHEEL ATTACHMENT - rear, universal cast, machinery item, Includes Ref. 1 - 8

1шт.

1

1334482C1

RIM

- wheel, for 18.4-42 tire

2шт.

2

A145464

WHEEL

- rear, universal cast

2шт.

3

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, Grade 8

16шт.

4

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

5

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch

24шт.

6

A57654

CLAMP

- adjusting, double ramp

24шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel

24шт.

8

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

1340516C1

WHEEL ATTACHMENT - rear, universal cast, machinery item, Includes: Ref. 11 - 17

1шт.

11

1978549C3

RIM

- wheel, for 14.9-46 tire

2шт.

11

1348323C1

RIM

- wheel, for 18.4-46 tire, not in 1340516C1

2шт.

12

1348284C1

RIM

WHEEL - rear, universal cast, Replaces: 1978551C1

2шт.

13

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, Grade 8

16шт.

14

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

15

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- flat, wheel

24шт.

16

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

17

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, grade 5

24шт.

A67686

HUB

ATTACHMENT - wheel, 8 bolt, machinery item, 7110 Tractor, Includes: Ref. 21 - 26

1шт.

21

A145322

HUB

- wheel, tapered, 7110 Tractor

2шт.

22

1334322C1

HUB

BUSHING - wheel, 3-1/2 inch ID, 7110 Tractor

2шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing, 7110 Tractor

12шт.

24

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

7110 Tractor 13/16" x 1 1/2" x .219", HDN

12шт.

25

1530716C1

BUCKET TOOTH KEY

KEY - axle, 5/8 x 5 inch, 6 inch key, Replaces: A34890, 7110 Tractor

2шт.

26

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 7110 Tractor 1/4" x 1/2", Slotted

2шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, machinery item, 7120 Tractor, Includes: Ref. 30 - 35

1шт.

30

A145322

HUB

- wheel, tapered, 7120 Tractor

2шт.

31

1289233C1

HUB

BUSHING - wheel, 4 inch ID, 7120 Tractor

2шт.

32

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - 3/4 inch, hub to bushing, 7120 Tractor

12шт.

33

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

7120 Tractor 13/16" x 1 1/2" x .219", HDN

12шт.

34

A63219

KEY

- axle, 3/4 x 6 inch, 7120 Tractor

2шт.

35

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , 7120 Tractor 1/4" x 1/2", Slotted

2шт.
