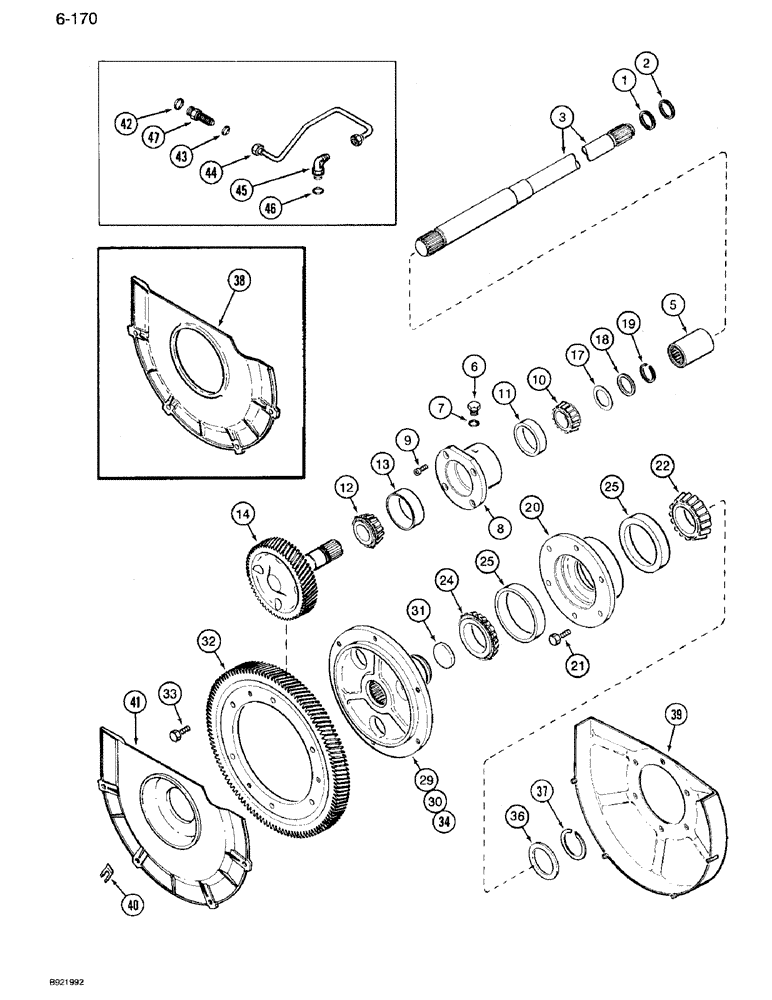

Запчасти Case IH 7120 (6-170) - PTO REDUCTION GEARS (06) - POWER TRAIN

1

1286051C1

WASHER

- shaft, PTO, if used

1шт.

2

1286050C1

RING

- seal, oil, if used

1шт.

3

1981239C1

SHAFT

- drive, rear, Replaces: 1286049C2 and 93267C1

1шт.

5

109651C1

COUPLING,21T

- shaft

1шт.

6

76349

PLUG,9/16" - 18 ORB

1шт.

8

1349450C1

BEARING HOUSING

- bearing, Start Serial: JJA0027701

1шт.

8

93265C1

CAGE

- bearing, Serial Range: -JJA0027701

1шт.

9

905260R1

HEX SOC SCREW,M10 x 20mm, Cl 12.9

- hex socket head, 10 x 20 mm

4шт.

10

93292C1

BEARING ASSY,1.375" ID x 2.717" OD x 0.7813"

CONE - bearing, front

1шт.

11

ST991

BEARING CUP

CUP - bearing, front

1шт.

12

93294C1

TAPERED BEARING,35 mm ID x 28 mm

CONE ASSEMBLY - bearing, rear

1шт.

13

93295C1

BEARING, CUP,72 mm OD x 22 mm

CUP - bearing, rear

1шт.

14

93264C1

GEAR WHEEL

GEAR - drive, PTO

1шт.

94653C1

PACKAGE,SERVICE

SHIM KIT - gear, Includes: Ref. 17

1шт.

17

92809C1

SHIM

- gear, 0.25 mm, 2 in kit

1шт.

17

92808C1

SHIM

- gear, 0.30 mm, 2 in kit

1шт.

17

92807C1

SHIM

- gear, 0.41 mm, 2 in kit

1шт.

18

1264649C1

SHIM

- gear

1шт.

19

1259828C1

RING

- retaining

1шт.

20

139307C3

BEARING HOUSING

- bearing

1шт.

21

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 25 mm

6шт.

22

496535C1

BEARING ASSY,61.912 mm ID x 110 mm OD x 22 mm

CONE - bearing, front

1шт.

24

ST753B

BEARING ASSY,66.67mm ID x 22mm W

CONE - bearing, rear, 2-5/8 inch ID

1шт.

25

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, rear

2шт.

29

1264951C1

HUB

HUB ASSEMBLY - gear, PTO driven, used with ref. 38, Includes Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

HUB - gear, driven

1шт.

31

70129R1

PLUG,Cup, 2"

- cup, 2 inch diameter

1шт.

32

1277012C1

GEAR WHEEL

GEAR - driven

1шт.

33

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 30 mm

6шт.

34

1264960C2

HUB

- gear, PTO driven, used with Ref. 41

1шт.

1968278C1

SHIM

KIT - bearing, Includes: Ref. 36

1шт.

36

1264638C1

WASHER

SHIM - bearing, 3.44 mm

1шт.

36

1259699C1

WASHER

SHIM - bearing, 3.48 mm

1шт.

36

1259700C1

WASHER

SHIM - bearing, 3.52 mm

1шт.

36

1259701C1

WASHER

SHIM - bearing, 3.56 mm

1шт.

36

1259702C1

WASHER

SHIM - bearing, 3.60 mm

1шт.

36

1259703C1

WASHER

SHIM - bearing, 3.64 mm

1шт.

36

1259704C1

WASHER

SHIM - bearing, 3.68 mm

1шт.

36

1264639C1

WASHER

- bearing, 3.72 mm

1шт.

37

1259698C1

CIRCLIP

RING - retaining, external

1шт.

38

139335C3

COVER

- shield, oil, used with Ref. 29, hub assembly

1шт.

39

139329C1

SHIELD

- gear

1шт.

40

139327C1

CLIP

- retaining, cover

4шт.

41

1997579C1

HOUSING

COVER - shield, oil, used with Ref. 34, hub

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Serial Range: -AJB0044915

1шт.

44

139315C2

HYD TUBE,0.375" OD, 354.48 mm Length

TUBE - lubrication gear, Serial Range: -AJB0044915

1шт.

45

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 46, Serial Range: -AJB0044915

1шт.

47

93187C1

HYD CONNECTOR,9/16" - 18 ORFS x 13/16" - 16 ORFS

ADAPTER - bulkhead, 13/16-16 face seal x 9/16-18 inch flare, Serial Range: -AJB0044915

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Serial Range: -AJB0044915

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Serial Range: -AJB0044915

1шт.
