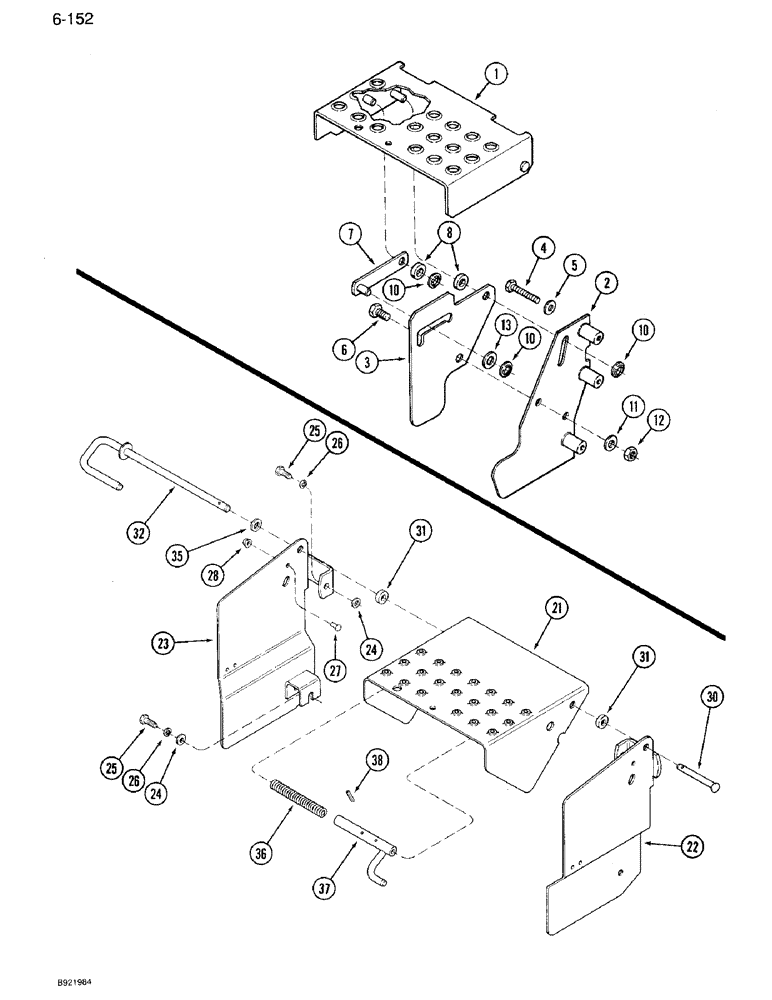

Запчасти Case IH 7120 (6-152) - PTO SHIELD, PRIOR TO P.I.N. JJA0020937 (06) - POWER TRAIN

1

1968034C1

SHIELD

- safety, PTO, with decal, with welded bushing support plate

1шт.

2

1968109C1

PLATE ASSY.

PLATE - shield support, inner left, shown, with welded bushing

1шт.

2

1968110C1

PLATE ASSY.

PLATE - shield support, inner right, with welded bushing

1шт.

3

A187043

PLATE ASSY.

PLATE - shield, outer left, shown, with welded bushing support

1шт.

3

1974483C1

PLATE ASSY.

PLATE - shield, outer right, with welded bushing support

1шт.

4

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

- hex, 3/8 NC x 2-1/2 inch, with welded bushing support plate

6шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), with welded bushing support plate 3/8"

6шт.

6

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 x 25 mm, with welded bushing support plate

2шт.

7

A185823

DRAG LINK

LINK - lock, with welded bushing support plate

1шт.

8

A185838

SPACER

- shield, 10 mm, with welded bushing support plate

3шт.

10

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , With welded bushing support plate Push, 1/2"

4шт.

11

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

with welded bushing support plate M13.5 x 24 x 2.5

2шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10, with welded bushing support plate

2шт.

13

1974431C1

WASHER

- flat, nylon, with welded bushing support plate

1шт.

21

1978558C1

GUARD

SHIELD - safety, PTO, also order 1960744C2 decal on Figure 9-158, with welded bracket support plate

1шт.

22

1340512C2

SUPPORT

PLATE - shield support, right, with welded bracket, Used w/ PTO cover 148661C2

1шт.

23

1340511C2

SUPPORT

PLATE - shield support, left, with welded bracket, Used w/ PTO cover 148661C2

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm, With welded bracket support plate

4шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

With welded bracket support plate Hex, 3/8"-16 x 1", G8, Full Thd

4шт.

26

492-11038

LOCK WASHER,3/8"

with welded bracket support plate 3/8"

4шт.

27

147-212

RIVET,But Hd, 5/16" x 1/2"

- round head, 5/16 x 1/2 inch, with welded bracket support plate

1шт.

28

131-868

PUSH-ON NUT,5/16", Sq, Push-on

- cap, 1/4 inch push on, with welded bracket support plate

1шт.

30

22388R1

HEADED PIN,1/2" x 4"

PIN - head, 1/2 x 4 inch, with welded bracket support plate

1шт.

31

1340500C1

SPACER

- bracket, upper, with welded, support plate

2шт.

32

1340501C1

STEM

ROD - pivot, shield, with welded bracket support plate

1шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, with welded bracket support plate

1шт.

36

399635R1

VALVE SPRING

SPRING - tension, pivot rod, with welded bracket support plate

1шт.

37

1340505C1

SLEEVE ASSY

SLEEVE - pivot, with welded bracket support plate

1шт.

38

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, , w/welded bracket support plate 3/16" x 7/8", Slotted

2шт.
