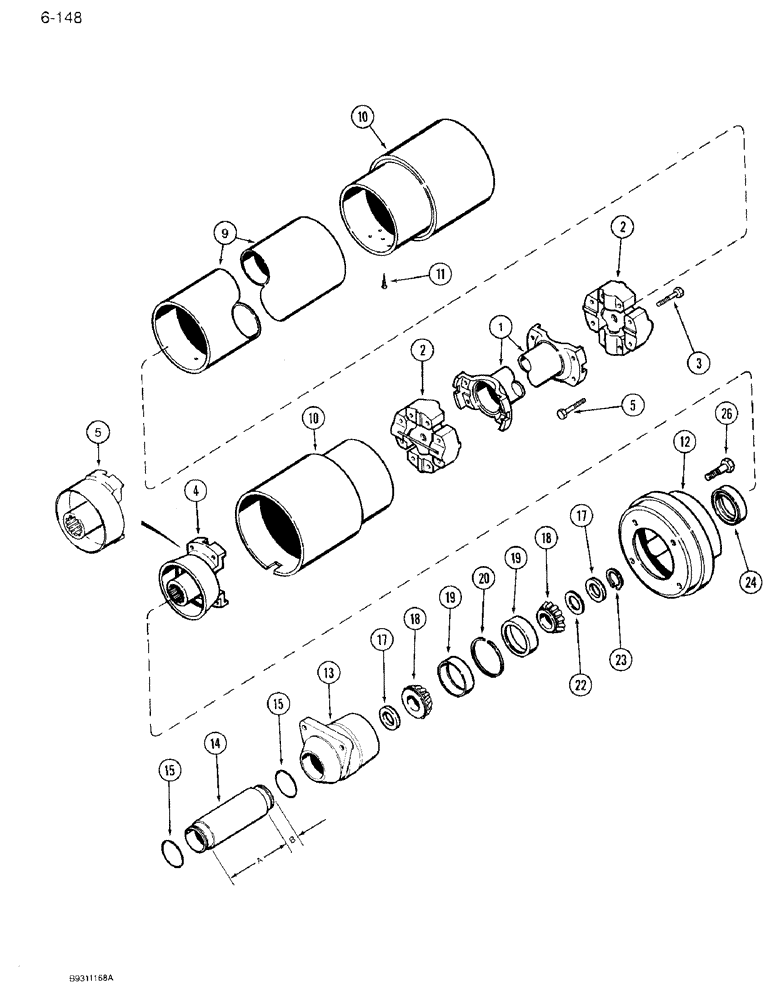

Запчасти Case IH 7120 (6-148) - FRONT AXLE DRIVE SHAFT, MFD TRACTOR (06) - POWER TRAIN

1

93381C1

SHAFT

ASSEMBLY - drive

1шт.

2

93326C1

U-JOINT SPIDER

SPIDER ASSEMBLY - shaft, Includes: Ref. 3

2шт.

3

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, spider

4шт.

4

92908C1

YOKE

ASSEMBLY - shaft, no longer available, for service order ref. 5, 110840A1

1шт.

5

110840A1

YOKE

ASSEMBLY - shaft

1шт.

6

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8

8шт.

1349323C1

GUARD ASSY.

SHIELD SET - matched, drive shaft, Replaces: 1975650C1, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GUARD - drive, order shield set

1шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE - outer, order shield set

2шт.

11

93199C1

FASTENER

- ratchet

2шт.

12

93061C1

SUPPORT ASSY.

SUPPORT - guard, drive, if equipped

1шт.

13

1981200C1

CAGE

- shaft output, Replaces: 92810C1

1шт.

14

1981201C1

TUBE,41.275 mm ID, 55 mm OD

- front,cage, 178 mm long; A dimension is 134 mm, B dimension is 22 mm long, Replaces: 92810C1

1шт.

14

1997786C1

TUBE,41.275 mm ID, 55 mm OD

- front cage, 178 mm long; A dimension is 140 mm, B dimension is 19 mm long

1шт.

15

238-7132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 7, 75 Duro

Viton (Replaces: 238-5132) 1 3/4" ID X 1 15/16" OD, Cl 7

2шт.

17

1264649C1

SHIM

- bearing, 3.81 mm

2шт.

18

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

CONE - bearing

2шт.

19

ST991

BEARING CUP

CUP - bearing

2шт.

20

597793R1

SNAP RING,#268, 2.868", Int

RING - snap, internal

1шт.

94653C1

PACKAGE,SERVICE

SHIM KIT - bearing, Includes: Ref. 22

1шт.

22

92807C1

SHIM

- bearing, 0.41 mm, 2 in kit

1шт.

22

92808C1

SHIM

- bearing, 0.30 mm, 2 in kit

1шт.

22

92809C1

SHIM

- bearing, 0.25 mm, 2 in kit

1шт.

23

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

1шт.

24

1342254C1

SEAL

SEAL - oil, shaft, Replaces: 92814C1

1шт.

26

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 x 45 mm

2шт.
