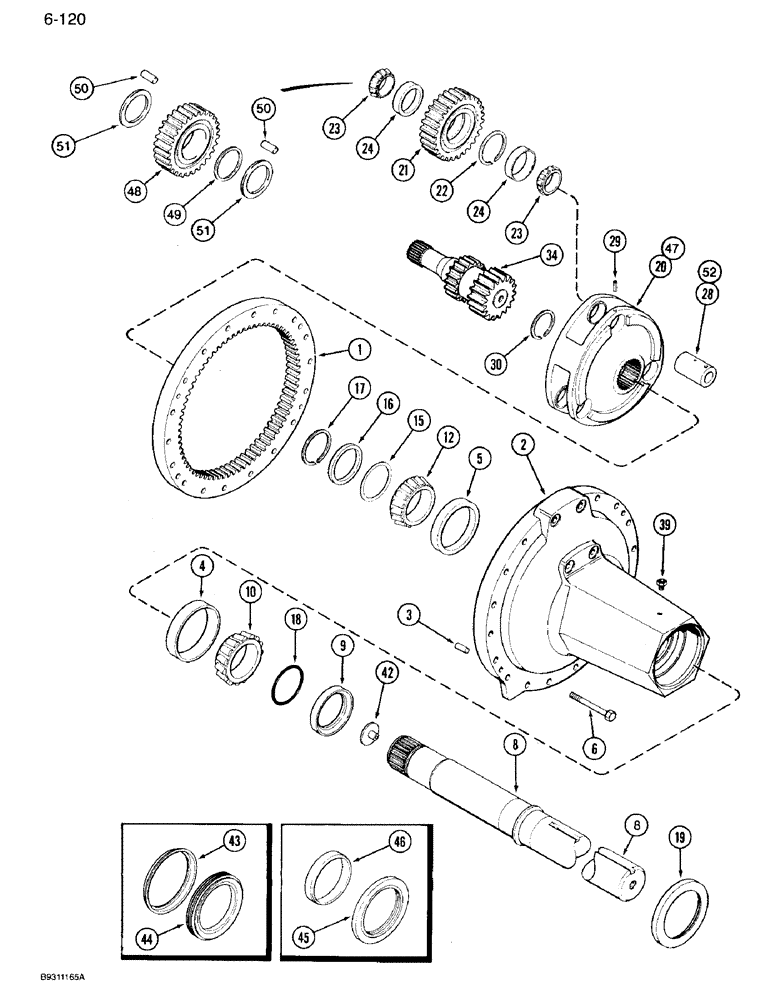

Запчасти Case IH 7120 (6-120) - REAR AXLE AND CARRIERS, 118 INCH AXLE, 7120 TRACTOR (06) - POWER TRAIN

1

120942C2

GEAR

- 72T, ring, axle, Replaces: 120942C1

2шт.

2

1342268C1

CARRIER

ASSEMBLY - axle, Replaces: 1975518C3, Includes: Ref. 3 - 5

2шт.

3

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm

2шт.

4

1975500C1

BEARING CUP,180.987 mm OD x 38.15 mm

CUP - bearing, outer

1шт.

5

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

CUP - bearing, inner

1шт.

6

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 x 120 mm

32шт.

Changed on the earlier tractor serial numbers and a rear axle insert was positioned Ref. 9 on the end. The dealer will need to order this to complete the repair.

1шт.

8

1342484C2

AXLE, REAR

AXLE ASSEMBLY - rear, 4 inch diameter, Replaces: 1975545C2 and 1342484C1, Includes: Ref. 9

2шт.

P/N 1975545C2 axle is not a one-for-one replacement. P/N 1975545C2 subs to P/N 1342484C3 plus 4 other P/N's. See sub screen.

1шт.

9

1963837C1

BUSHING,104.83mm ID x 132.65mm OD x 18mm L

- spacer, bearing, Replaces: 1968492C1

1шт.

10

1975499C1

TAPERED BEARING,104.187 mm ID x 47.68 mm

CONE - bearing, outer

2шт.

12

1963841C1

ROLLER BEARING,95.26mm ID x 36.22mm W

CONE - bearing, inner

2шт.

1264591C1

SHIM KIT

- bearing, Includes: Ref. 15

1шт.

15

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

Bearing, 3 in kit 0.760mm Thk

1шт.

15

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

Bearing, 3 in kit 0.300mm Thk

1шт.

15

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

- bearing, 0.18 mm, 3 in kit

1шт.

15

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

Bearing (0.10 to 0.13 mm), 3 in kit 0.100mm Thk

1шт.

15

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

Bearing (0.06 to 0.09 mm), 3 in kit 0.076mm Thk

1шт.

16

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

- thrust, axle

2шт.

17

1277020C2

RING

- retaining, axle, Replaces: 1277020C1

2шт.

18

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

(Replaces 1968449C1 and 1975504C1) -155, 70 Duro, 3.987" ID x .103" Thk

2шт.

19

1963839C1

OIL SEAL

- oil, shaft, Replaces: 1968447C1

2шт.

20

109893C1

PINION CARRIER

CARRIER - gear, planet, if used, 58 teeth, 92.075 mm ID minor

2шт.

21

1251840C1

GEAR

GEAR ASSEMBLY - planet, if used, Includes: Ref. 22

6шт.

22

67240C1

RING

- retaining, internal, if used

1шт.

23

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

CONE - bearing, if used

12шт.

24

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, if used

12шт.

28

120461C5

SHAFT

- bearing, planet gear, if used

6шт.

29

30355R1

PIN,M8 x 26, Coiled

- spiral, 8 x 26 mm

6шт.

30

598318R1

RING, SNAP

RING - retaining

2шт.

34

1981238C1

SHAFT

- sun gear final drive, Replaces: 1259732C1, 327059R1, 1259753C1, and 94803C1

2шт.

39

A50096

VALVE

- pressure relief, if equipped

2шт.

42

1981270C1

INSERT

- rear axle

2шт.

43

1968446C1

SLEEVE CYLINDER

SLEEVE - wear, if equipped

2шт.

44

1968447C1

SEAL

SEAL - grease, if equipped

2шт.

1349182C1

SEAL KIT

SEAL AND SLEEVE KIT - axle, Includes: Ref. 45 and 46

1шт.

45

1349183C1

OIL SEAL

SEAL - oil, oversize

1шт.

46

1349184C1

SLEEVE,132.67mm ID x 142.8mm OD x 23mm L

- wear

1шт.

47

1349351C1

PINION CARRIER

CARRIER - gear, planet, if used

2шт.

48

1349354C1

PINION

GEAR ASSEMBLY - planet, if used, Includes: Ref. 49

2шт.

49

1349348C1

THRUST RING

RING - thrust, if used

6шт.

50

1349353C1

NEEDLE BEARING

BEARING - needle, if used

348шт.

51

1997886C1

THRUST WASHER

WASHER - thrust, if used

12шт.

52

1349352C1

SHAFT

- bearing, planet gear, if used

6шт.
