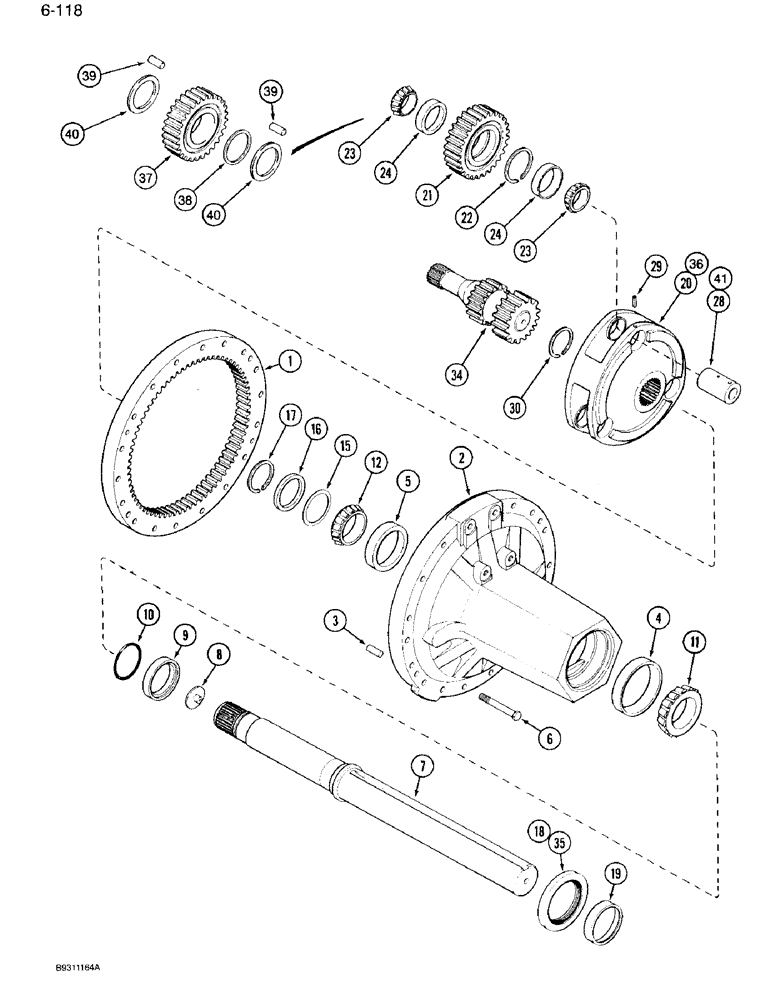

Запчасти Case IH 7120 (6-118) - REAR AXLE AND CARRIERS, 96 AND 112 INCH AXLE, 7120 TRACTOR (06) - POWER TRAIN

1

120942C2

GEAR

- 72T, ring, axle, Replaces: 120942C1

2шт.

2

1968489C1

CARRIER

ASSEMBLY - axle, Replaces: 109851C91, Includes: Ref. 3 - 5

2шт.

3

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm

2шт.

4

630899C1

BEARING CUP

CUP - bearing

2шт.

5

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

CUP - bearing, inner

2шт.

6

813-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

- hex, 16 x 120 mm

32шт.

7

1968338C4

SHAFT

AXLE ASSEMBLY - rear, 4 inch diameter x 112 inch, Replaces: 1968338C2, Includes: Ref. 8 and 9

2шт.

7

1968339C3

SHAFT ASSY.

AXLE ASSEMBLY - rear, 4 inch diameter x 96 inch, Replaces: 1968339C2, Includes: Ref. 8 and 9

2шт.

Changed on the earlier tractor serial numbers and a rear axle insert was positioned Ref. 9 on the end. The dealer will need to order this to complete the repair.

1шт.

8

1981270C1

INSERT

- rear axle

2шт.

9

1968334C1

BUSHING,100.41mm ID x 119.85mm OD x 19.5mm L

- spacer, bearing

1шт.

10

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

2шт.

11

630874C1

ROLLER BEARING,99.99mm ID x 41mm W

CONE - bearing, outer

2шт.

12

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

CONE - bearing, inner

2шт.

1264591C1

SHIM KIT

- bearing, Includes: Ref. 15

1шт.

15

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

Bearing, 3 in kit 0.760mm Thk

1шт.

15

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

Bearing, 3 in kit 0.300mm Thk

1шт.

15

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

- bearing, 0.18 mm, 3 in kit

1шт.

15

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

Bearing (0.10 to 0.13 mm), 3 in kit 0.100mm Thk

1шт.

15

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

Bearing (0.06 to 0.09 mm), 3 in kit 0.076mm Thk

1шт.

16

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

- thrust, axle

2шт.

17

1277020C2

RING

- retaining, axle, Replaces: 1277020C1

2шт.

94547C1

SEAL KIT

SEAL AND SLEEVE KIT - axle, Includes: Ref. 18 and 19

2шт.

18

92687C1

SLEEVE

- wear

1шт.

19

92689C1

SEAL

- oil, oversize

1шт.

20

109893C1

PINION CARRIER

CARRIER - gear, planet, has 58 teeth, if used

2шт.

21

1251840C1

GEAR

GEAR ASSEMBLY - planet, if used, Includes: Ref. 22

6шт.

22

67240C1

RING

- retaining, internal, if used

1шт.

23

625742C1

ROLLER BEARING,2.1654" ID x 3.5433" OD x 0.9055" W

CONE - bearing, if used

12шт.

24

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, if used

12шт.

28

120461C5

SHAFT

- bearing, planet gear, if used

6шт.

29

30355R1

PIN,M8 x 26, Coiled

- spiral, 8 x 26 mm

6шт.

30

598318R1

RING, SNAP

RING - retaining

2шт.

34

1981238C1

SHAFT

- sun gear final drive, Replaces: 1259732C1, 327059R1, 1259753C1, and 94803C1

2шт.

35

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

SEAL - oil, regular, See 94547C1 kit

2шт.

36

1349351C1

PINION CARRIER

CARRIER - gear, planet, has 52 teeth, if used

2шт.

37

1349354C1

PINION

GEAR ASSEMBLY - planet, if used, Includes: Ref. 38

2шт.

38

1349348C1

THRUST RING

RING - thrust, if used

6шт.

39

1349353C1

NEEDLE BEARING

BEARING - needle, if used

348шт.

40

1997886C1

THRUST WASHER

WASHER - thrust, if used

12шт.

41

1349352C1

SHAFT

- bearing, planet gear, if used

6шт.
