Запчасти Case IH 7120 (6-108) - TRANSMISSION, PINION SHAFT AND GEAR (06) - POWER TRAIN

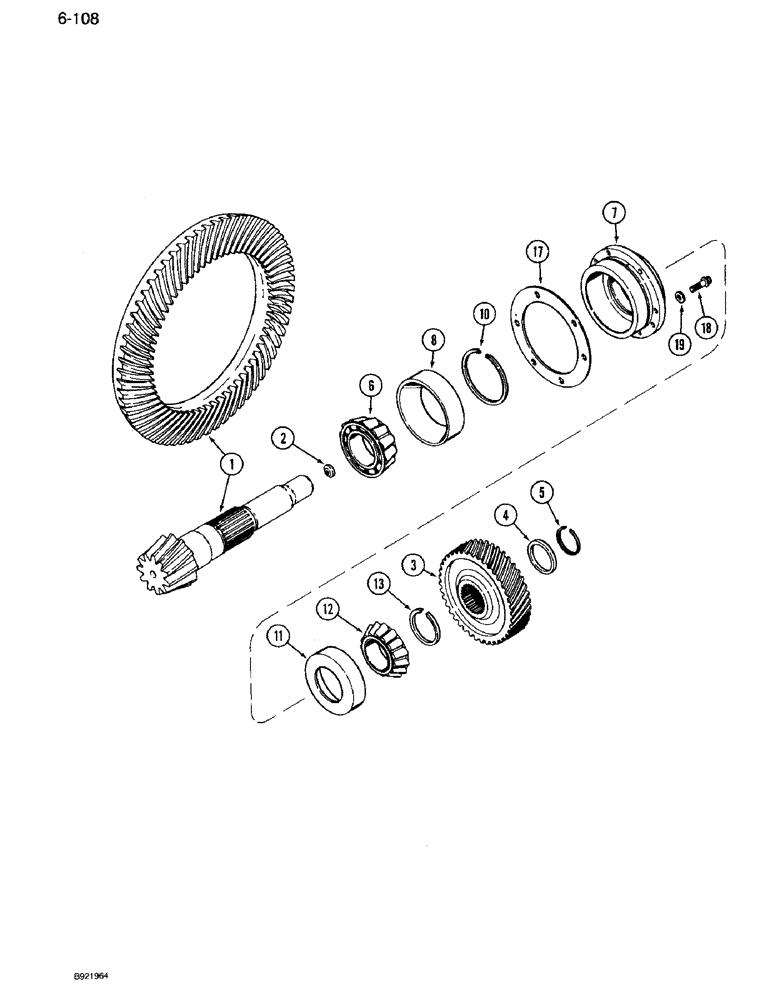

Схема запчастей Case IH 7120 - (6-108) - TRANSMISSION, PINION SHAFT AND GEAR (06) - POWER TRAIN
19
5
17
4
1
13
12
3
11
18
8
6
7
10
2

Артикул

Название

Примечание

Количество

1

92817C2

GEAR, BEVEL

GEAR AND SHAFT SET - bevel pinion, Includes: Ref. 2

1шт.

2

92825C1

CAP WASHER

PLUG - shaft

1шт.

3

1285991C2

PINION

GEAR - driven, constant mesh, 46T

1шт.

4

1286039C1

SPACER

- shaft

1шт.

5

143906C1

SNAP RING

RING - retainer, gear

1шт.

6

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

CONE - bearing

1шт.

7

1068263C1

BEARING HOUSING

- bearing, Includes: Ref. 8

1шт.

8

921683C1

BEARING CUP,5.7087" OD x 1.6535"

CUP - bearing

1шт.

10

120965C1

SNAP RING

RING - retaining, bearing

1шт.

11

108326H

BEARING CUP,3.81" ID x 4.71" OD x 0.92"

CUP - bearing, front

1шт.

12

94666C1

TAPERED BEARING,73.03mm ID x 30.16mm W

CONE - bearing, front

1шт.

94669C1

RING

KIT - pinion, Includes: Ref. 13

1шт.

13

94661C1

RING,Rtng, Ext, 68.91mm ID x 3.70mm

- pinion, 3.70 mm, 1 in kit

1шт.

13

94662C1

RING,Rtng, Ext, 68.91mm ID x 3.78mm

- pinion, 3.78 mm, 1 in kit

1шт.

13

94663C1

RING,Rtng, Ext, 68.91mm ID x 3.86mm

- pinion, 3.86 mm, 1 in kit

1шт.

13

94664C1

RING,Rtng, Ext, 68.91mm ID x 4.02mm

- pinion, 4.02 mm, 1 in kit

1шт.

13

110042C1

RING,Rtng, Ext, 68.91mm ID x 3.94mm

- pinion, 3.94 mm, 1 in kit

1шт.

1264590C1

SHIM KIT

- bearing, Includes: Ref. 17

1шт.

17

120977C1

SHIM,171mm ID x 228mm OD x 0.08mm Thk

Bearing cage, 2 in kit 0.076mm Thk

1шт.

17

120978C1

SHIM,171mm ID x 228mm OD x 0.1mm Thk

Bearing cage, 2 in kit 0.100mm Thk

1шт.

17

120979C1

SHIM,171mm ID x 228mm OD x 0.13mm Thk

Bearing cage, 2 in kit 0.130mm Thk

1шт.

17

120980C1

SHIM,171mm ID x 228mm OD x 0.3mm Thk

Bearing cage, 2 in kit 0.300mm Thk

1шт.

18

30451R1

12 PT SCREW,M10 x 35mm, Cl 12.9

SCREW - 12 point head, 12 x 35 mm

6шт.

19

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

- flat, cage screw

6шт.

Выбрано товаров: 24
