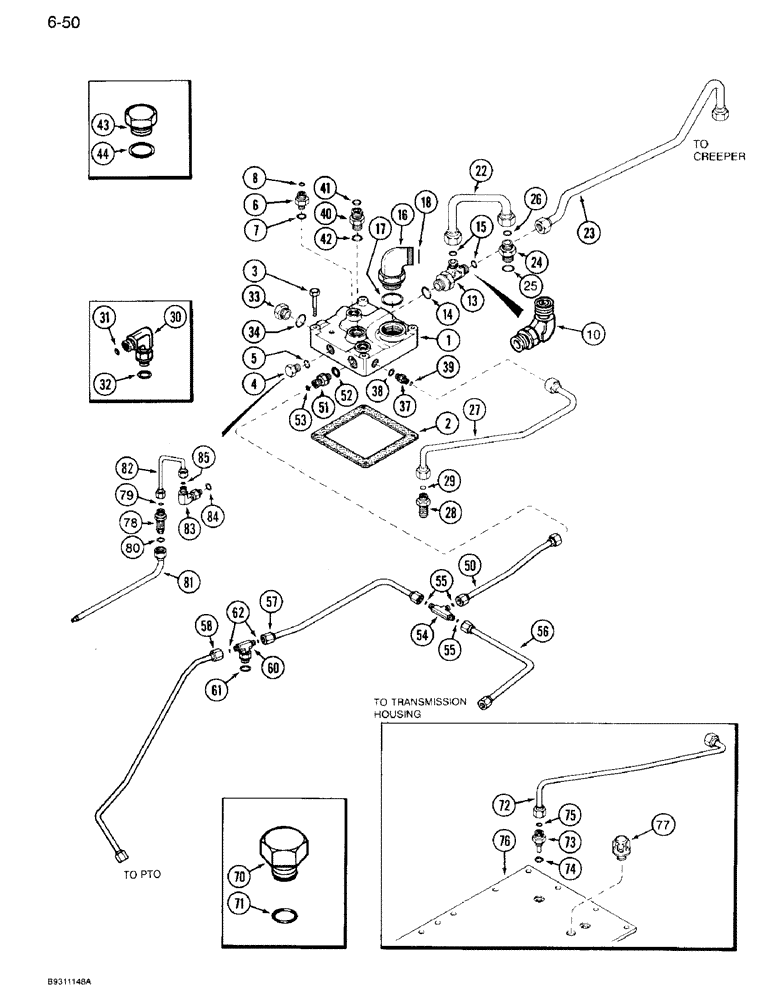

Запчасти Case IH 7120 (6-050) - TRANSMISSION, RANGE HOUSING TUBES AND MANIFOLD, TRANSMISSION SERIAL NUMBER AJB0055133 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1342863C2
MANIFOLD
- lubrication
1шт.
2
145400C2
MANIFOLD GASKET,0.91mm Thk
- manifold
1шт.
4
71100209
PLUG,Hex Soc, 3/4"-16 ORB
If used, Incl Ref 5 Hex Soc, 3/4"-16 ORB
2шт.
5
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, If used
1шт.
6
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Adapter - straight, Incl Ref. 7 and 8 11/16"-16 ORFS x 9/16"-18 ORB
1шт.
7
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
8
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
10
201-306
90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB
- 90 deg 1-14 x 7/8-14 inch, without creep
1шт.
13
201-420
TEE,1"-14 x 7/8"-14 Run, ORFS
- 1-14 face x face x 7/8-14 inch, with creep, Includes: Ref. 14 and 15
1шт.
14
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
15
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
16
201-310
ELBOW,90 Degree Elbow, 2" - 12 Male ORFS x 1-7/8" - 12 Male ORB
- 90 degree, 2-12 face x 1-7/8 inch adj O-ring boss, Includes: Ref. 17 and 18
1шт.
17
237-6024
O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro
24-1, 90 Duro, 1.72" ID x .118" Thk
1шт.
18
238-6029
O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro
1шт.
22
1342029C1
TUBE,0.625" OD, 132.6 mm Length
- lubrication, odd/even
1шт.
23
1348316C1
HYD TUBE,0.5" OD, 548.8, 32.6 mm Length
TUBE - lubrication, creeper drive
1шт.
24
1981204C1
FITTING,1" - 14 ORFS x 7/8" - 14 ORB
- lube, Includes: Ref. 25 and 26
1шт.
25
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
26
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
27
1349444C1
HYD TUBE,0.375" OD, 518, 61 mm Length
TUBE - lubrication, draft cylinder, with hitch
1шт.
28
201-120
HYD CONNECTOR,11/16"-16, Blkhd, ORFS
ADAPTER - straight, 11/16-16 inch face seal x bulkhead face, Includes: Ref. 29
1шт.
29
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
30
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
- 90 deg adj, 9/16 x 11/16 inch, without hitch, Includes: Ref. 31 and 32
1шт.
31
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
32
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
34
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
37
201-125
HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB
ADAPTER - straight, 11/16-16 face seal x 7/16-20 inch O-ring, Includes: Ref. 38 and 39
1шт.
38
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
40
201-103
HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB
CONNECTOR, HYD., , Includes Ref. 41 and 42 1"-14 ORFS x 7/8"-14 ORB
1шт.
41
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
42
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
43
9672438
PLUG,7/16" - 20 ORB
without hitch, Incl. Ref. 44 Hex Hd, 7/16"-20 ORB
1шт.
44
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
50
1289215C1
HYD TUBE,0.5" OD, 328.2, 17.6 mm Length
TUBE - lube main supply
1шт.
51
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
CONNECTOR, HYD., , Includes Ref. 52 and 53 13/16"-16 ORFS x 3/4"-16 ORB
1шт.
52
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
54
201-409
TEE,13/16"-16 ORFS
- 13/16-16 inch face seal branch x face seal x face seal, Includes: Ref. 55
1шт.
56
1289214C1
HYD TUBE,0.5" OD, 263.8, 205 mm Length
TUBE - lube, right brake
1шт.
57
1289212C1
HYD TUBE,0.5" OD, 380,146.1 mm Length
TUBE - lube, left brake
1шт.
58
1955485C1
HYD TUBE
TUBE - lubrication, PTO rear
1шт.
60
201-402
TEE,13/16"-18 x 3/4"-16 Br, ORFS
- 3/4-16 adj O-ring branch x 13/16-16 inch face x face, Includes: Ref. 61 and 62
1шт.
61
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
70
76349
PLUG,9/16" - 18 ORB
without MFD, Incl. Ref. 71 Hex Hd, 9/16"-18 ORB
1шт.
71
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
72
1340696C2
HYD TUBE,0.375" Diameter, 518 mm Length
TUBE - bevel pinion lube, without hitch
1шт.
73
1349199C2
FITTING
- bevel gear and bearing lube, without hitch, Includes: Ref. 74 and 75
1шт.
74
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
75
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
76
1342229C3
COVER
- housing, rear frame
1шт.
78
93103C1
UNION
- bulkhead, lube
1шт.
79
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
80
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
81
124306A1
TUBE,12.7 mm OD, 469, 181 mm Length
- lube
1шт.
82
1289222C1
HYD TUBE
TUBE - lube, range spray
1шт.
83
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
- 90 degree adjustable, 9/16 x 11/16 inch thread, with MFD, Includes: Ref. 84 and 85
1шт.
84
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Boss end
1шт.
85
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face end -012, 90 Duro, .364" ID x .070" Thk
1шт.
Выбрано товаров: 64
