Запчасти Case IH 7120 (6-034) - TRANSMISSION SPEED, OUTPUT SHAFT AND FRONT CLUTCH, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0051028 (06) - POWER TRAIN

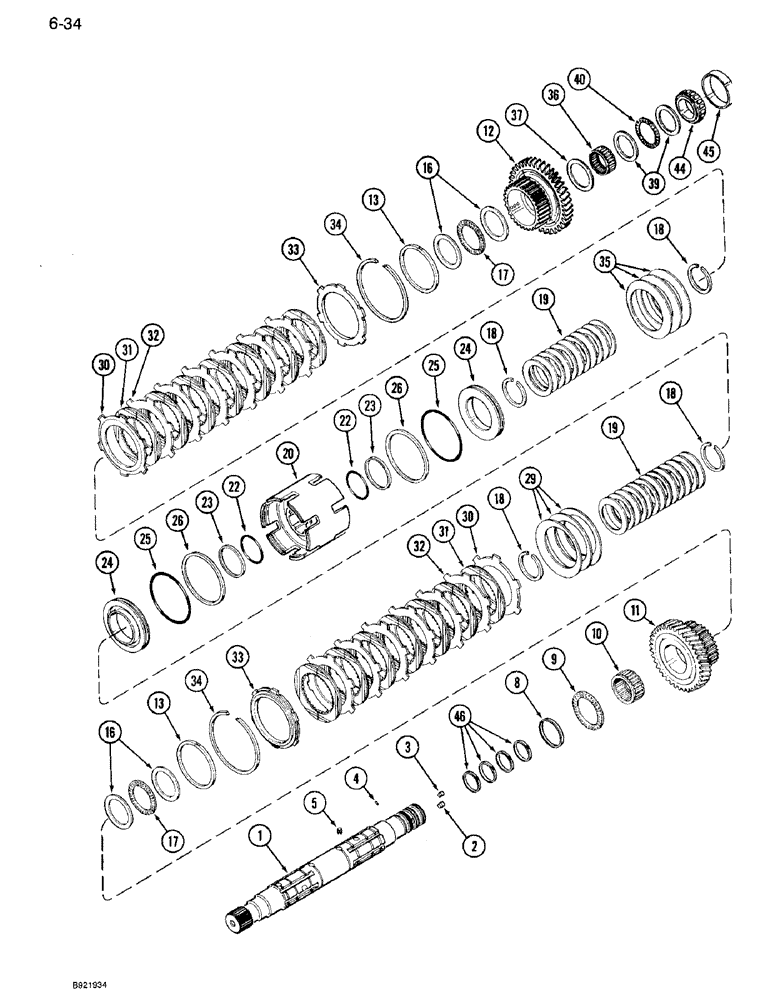

Схема запчастей Case IH 7120 - (6-034) - TRANSMISSION SPEED, OUTPUT SHAFT AND FRONT CLUTCH, PRIOR TO TRANSMISSION SERIAL NUMBER AJB0051028 (06) - POWER TRAIN
30
46
36
33
3
35
13
32
4
16
34
30
26
37
23
2
18
19
39
18
32
26
17
22
1
34
11
31
23
17
40
18
9
16
12
22
44
31
29
25
33
18
19
45
5
24
25
8
10
13
24
20

Артикул

Название

Примечание

Количество

1

1963886C1

SHAFT

ASSEMBLY - output, Includes: Ref. 2 - 5

1шт.

2

1286084C1

PIN,12.02mm OD x 11mm L

- dowel, 12 mm

3шт.

3

1286085C1

LARGE PIN,10.02mm OD x 11mm L

PIN - dowel, 10 mm

1шт.

4

20747R1

PIN,3/32" x 5/16", Coiled

5шт.

5

1963875C1

COTTER PIN

PIN - slotted spring

4шт.

8

1286040C2

SEAL,63.6mm ID x 69.8mm OD x 6.5mm Thk

- support, bearing

1шт.

9

80908C1

BEARING ASSY

- needle, caged

1шт.

10

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

BEARING ASSEMBLY - needle, caged

1шт.

11

1285985C1

GEAR

GEAR - speed, fifth and sixth, 34T

1шт.

12

1285987C1

PINION

GEAR - driven, reverse, 39T

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal, clutch

2шт.

16

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, bearing

4шт.

17

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle

2шт.

18

93350C1

RING

- retaining, external

4шт.

19

1286012C2

BELLEVILLE WASHER

- Belleville, return

24шт.

20

93304C2

CLUTCH HOUSING

CARRIER - clutch, fifth and reverse

1шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, clutch low

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

- piston, clutch

2шт.

24

1285998C1

PISTON

- clutch

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - piston, clutch low

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston, clutch

2шт.

29

93129C1

BELLEVILLE WASHER

- Belleville, cushion

3шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction, spring

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction, Replaces: 92935C4

14шт.

32

92934C2

DISC

- separator

12шт.

33

1342854C1

DISC

- backing, clutch, Replaces: 1285994C1

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

RING - retaining

2шт.

35

93129C1

BELLEVILLE WASHER

- Belleville, cushion, with creeper only

3шт.

36

80906C1

BEARING ASSY,57.14mm ID x 66.7mm OD x 31.75mm W

BEARING ASSEMBLY - needle, caged, 1-1/4 inch, if equipped

1шт.

36

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING ASSEMBLY - needle, caged, 1 inch

1шт.

37

1342513C1

SPACER

- bearing

1шт.

39

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER - thrust, bearing

2шт.

40

K620185

THRUST BEARING

BEARING ASSEMBLY - thrust, needle

1шт.

44

219530H1

BEARING ASSY,49.99mm ID x 24.71mm W

CONE - bearing

1шт.

45

ST964

BEARING CUP,2.063" ID x 3.626" OD x 0.9768"

CUP - bearing

1шт.

46

1286024C1

SEALING RING,Locking, 46.61mm ID x 50.61mm OD x 2.87mm Thk

- seal

4шт.

Выбрано товаров: 36
