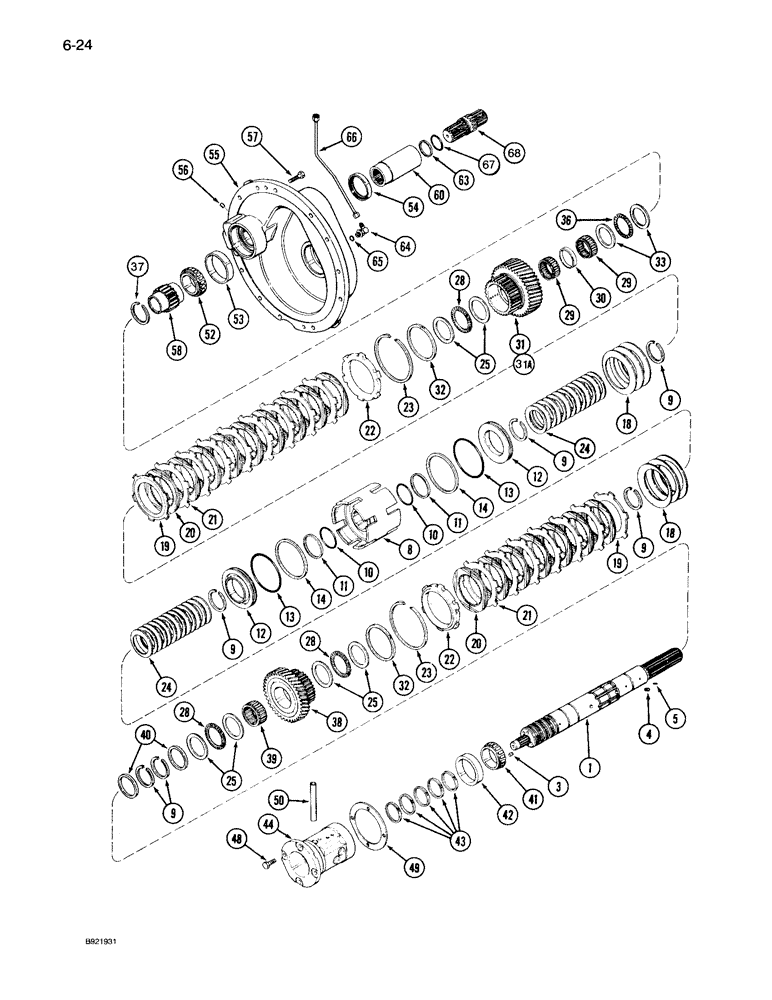

Запчасти Case IH 7120 (6-024) - TRANSMISSION SPEED, INPUT SHAFT WITH CREEPER, TRANSMISSION SERIAL NUMBER AJB0055133 AND AFTER (06) - POWER TRAIN

1

1963894C1

SHAFT

ASSEMBLY - input, Includes: Ref. 3 - 5

1шт.

3

1286085C1

LARGE PIN,10.02mm OD x 11mm L

PIN - dowel

4шт.

4

1963888C1

PIN,12.7mm OD x 14mm L

- slotted spring

2шт.

5

38-3605

PIN,3/32" x 5/16", Coiled

Replaces: 20747R1 3/32" x 5/16", Coiled

5шт.

8

93304C2

CLUTCH HOUSING

CARRIER - clutch, fifth and reverse

1шт.

9

93350C1

RING

- retaining, external

6шт.

10

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, low clutch inner

2шт.

11

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

- piston, clutch

2шт.

12

1285998C1

PISTON

- clutch, shift

2шт.

13

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - piston, low clutch outer

2шт.

14

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston, shift

2шт.

18

93129C1

BELLEVILLE WASHER

- Belleville, cushion, clutch

6шт.

19

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction, spring

2шт.

20

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction

14шт.

21

92934C2

DISC

- separator, clutch

12шт.

22

1342645C2

CLUTCH DISC

DISC - backing, clutch, Replaces: 1285994C1

2шт.

23

1285996C1

SNAP RING,151mm OD, Internal

RING - retainer, plate

2шт.

24

1286012C2

BELLEVILLE WASHER

- Belleville, piston return

26шт.

25

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, bearing

6шт.

28

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle

3шт.

29

80907C1

NEEDLE BEARING,Needle, 57.15mm ID x 66.7mm OD x 25.4mm W

BEARING ASSEMBLY - needle, caged

2шт.

30

93297C1

SPACER,62.45mm ID x 66.48mm OD x 9.98mm L

- bearing, input

1шт.

31

1285988C1

GEAR WHEEL

GEAR - second, fourth and sixth, 37 teeth, if used, Serial Range: -AJB0056477

1шт.

31a

1342495C1

DRIVEN GEAR

GEAR - second, fourth and sixth, 37 teeth, if used, Start Serial: AJB0056477

1шт.

32

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal, clutch

2шт.

33

1286042C1

THRUST WASHER,57.21mm ID x 76.05mm OD x 2.37mm Thk

WASHER - thrust, bearing

2шт.

36

K620185

THRUST BEARING

BEARING - thrust, needle, Replaces: 374011R1

1шт.

37

92793C1

RING

- snap, external

1шт.

38

1285985C1

GEAR

GEAR - odd/even clutch and fifth, 34 teeth

1шт.

39

1286016C1

NEEDLE BEARING,Needle, 63.49mm ID x 73.05mm OD x 31.75mm W

BEARING ASSEMBLY - needle, caged

1шт.

40

1286039C1

SPACER

- bearing

2шт.

41

364465C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

BEARING - tapered roller

1шт.

42

258452C1

BEARING ASSY,2.47" ID x 3.937" OD x 1"

CUP - bearing

1шт.

43

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

- seal, input shaft

5шт.

44

1981213C1

NEEDLE BEARING CAGE,63.1 mm ID x 113.95 mm OD x 156.6 mm

CAGE - bearing, input

1шт.

48

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm

4шт.

94654C1

SHIM

KIT - bearing, Includes: Ref. 49

1шт.

49

1286071C1

SHIM,115mm ID x 148mm OD x 0.08mm Thk

Bearing, 2 in kit 0.080mm Thk

1шт.

49

1286072C1

SHIM,115mm ID x 148mm OD x 0.1mm Thk

Bearing, 2 in kit 0.100mm Thk

1шт.

49

1286073C1

SHIM,115mm ID x 148mm OD x 0.13mm Thk

Bearing, 2 in kit 0.130mm Thk

1шт.

49

1286074C1

SHIM,115mm ID x 148mm OD x 0.3mm Thk

Bearing, 2 in kit 0.300mm Thk

1шт.

49

1286075C1

SHIM,115mm ID x 148mm OD x 0.76mm Thk

Bearing, 2 in kit 0.760mm Thk

1шт.

50

1981207C1

TUBE,15.913 mm OD

- lube

1шт.

52

659458R1

ROLLER BEARING,2.25" ID x 0.864"

BEARING - tapered roller

1шт.

53

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - bearing

1шт.

54

108935A1

SEAL,60.33mm ID x 79.38mm OD x 9.5mm Thk

- shaft, input, Replaces: 92840C1

1шт.

55

92837C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - bearing, front, Includes: Ref. 56

1шт.

56

20229R1

DOWEL,1/2" x 1/2"

PIN - dowel, 1/2 x 1/2 inch

8шт.

57

30044R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 40 mm, class 10.9

11шт.

58

92794C1

PINION

GEAR - creeper

1шт.

60

92841C1

SPLINED COUPLING,13T

COUPLING - shaft input

1шт.

61

92842C2

SHAFT

- driven, damper, with 2.63 mm wide O-ring groove, order 108932A1 O-ring, 108933A1, and 108935A1 Seal, Ref. 67, 68 and 54

1шт.

62

92843C1

RING,3.53mm Thk x 40.87mm ID

RING - seal, coupling, used with 92842C2 shaft, ref. 61

1шт.

63

92844C1

RING

- seal, coupling, used with 92842C2 shaft, ref. 61

1шт.

64

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16 inch thread, Includes: Ref. 65

1шт.

65

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

66

92836C1

TUBE,.25" OD

- supply, lube

1шт.

67

108932A1

O-RING,1.609" ID x 1.887" OD x 0.139"

- 40.87 ID x 3.53 mm wide, used with 108933A1 shaft

1шт.

68

108933A1

SHAFT

- driven, damper, with 4.45 mm wide O-ring groove

1шт.
