Запчасти Case IH 7120 (5-50) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING

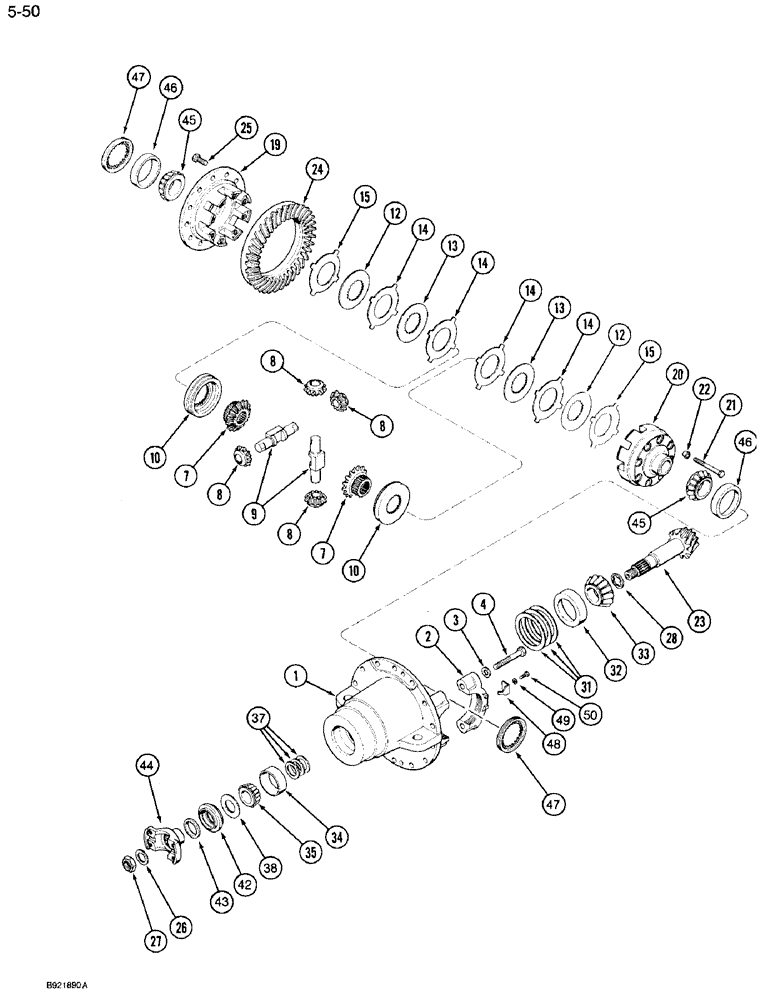

Схема запчастей Case IH 7120 - (5-50) - CARRIER AND DIFFERENTIAL, MFD TRACTOR (05) - STEERING
49
4
50
34
15
8
47
8
24
48
19
22
7
14
26
9
43
3
14
13
20
27
15
46
10
14
38
47
14
12
46
31
10
2
8
12
8
1
28
33
35
45
44
23
21
13
7
32
25
45
42
37

Артикул

Название

Примечание

Количество

1349307C1

AXLE, FRONT

AXLE ASSEMBLY - front, with four pin planetary, Includes: Ref. 1 - 50 and P/N 1961741C1

1шт.

1342604C2

AXLE

ASSEMBLY - front, with three pin planetary, Includes: Ref. 1 - 50 and P/N 1961741C1

1шт.

1961734C1

DIFFERENTIAL

CARRIER AND DIFFERENTIAL ASSEMBLY - axle, front, Includes: Ref. 1 - 50

1шт.

1961741C1

HOUSING

CARRIER ASSEMBLY - differential, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - bearing, differential

2шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

434320R1

BOLT,Hex, 5/8" - 18 x 3 3/4", Gr 8

- hex, 5/8 NF x 3-3/4 inch, grade 8

4шт.

1277225C2

DIFFERENTIAL

ASSEMBLY - axle, front, Includes: Refs. 7 - 22

1шт.

1277225C2 includes : 1277402C1 (kit diff case inner), 1997853C1 (bolt, diff case washer head), 296362A1 (housing MFD differential haft) and 296363A1(housing differential gear haft).

1шт.

1277402C1

KIT

DIFFERENTIAL KIT - axle, Includes: Refs. 7 - 15, also oil seal gasket

1шт.

1277402C1 includes : 1968294C1 (disc and plate kit-differential) and Refs. 7, 8, 9 and 10

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - side

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - pinion

4шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - differential

2шт.

10

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

2шт.

1968294C1

KIT

DISC AND PLATE KIT - differential, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

DISC - dished

2шт.

13

NSS

NOT SOLD SEPARAT

DISC - flat

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - flat

4шт.

15

NSS

NOT SOLD SEPARAT

PLATE - dished

2шт.

NSS

NOT SOLD SEPARAT

GASKET - oil seal, not used this application

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear half, differential

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - half, differential

1шт.

21

1997853C1

BOLT

- differential case washer head

8шт.

22

NSS

NOT SOLD SEPARAT

ADAPTER - bolt

8шт.

1968293C1

BEVEL GEAR

GEAR SET - pinion, differential, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - pinion

1шт.

24

NSS

NOT SOLD SEPARAT

GEAR - ring, front differential

1шт.

25

1287668C1

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 8

BOLT - drive gear

12шт.

26

912716R1

WASHER

- pinion nut

1шт.

27

912726R1

NUT

- pinion shaft

1шт.

28

1969538C1

SPACER

- pinion

1шт.

1277229C1

PACKAGE

SHIM KIT - pinion adjusting, Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.003 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.005 inch

5шт.

31

NSS

NOT SOLD SEPARAT

SHIM - pinion adjusting, 0.010 inch

5шт.

32

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

CUP - bearing, inner

1шт.

33

1968296C1

TAPERED BEARING

BEARING - inner

1шт.

34

1968289C1

BEARING ASSY

CUP - bearing, outer

1шт.

35

1968288C1

BEARING ASSY

BEARING - outer

1шт.

37

1961745C1

KIT

SHIM KIT - pinion adjust, includes shim's below

1шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.003 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.005 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.010 inch

5шт.

NSS

NOT SOLD SEPARAT

SHIM - pinion adjust, 0.030 inch

5шт.

38

912712R1

WASHER

- pinion oil seal

1шт.

42

1277230C1

OIL SEAL

- oil, pinion shaft

1шт.

43

345427C1

SLINGER

SHIELD - dust

1шт.

44

1961747C1

YOKE

- shaft, pinion

1шт.

45

1968291C1

ROLLER BEARING

BEARING - differential mounting

2шт.

46

1968292C1

BEARING

CUP - bearing, differential mounting

2шт.

47

1277233C1

RING NUT,14T

- adjusting, differential bearing

2шт.

48

1277234C1

CLIP

CLIP - bearing, adjusting ring

2шт.

49

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 1/16 inch

2шт.

50

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

Выбрано товаров: 57
