Запчасти Case IH 7120 (5-48) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING

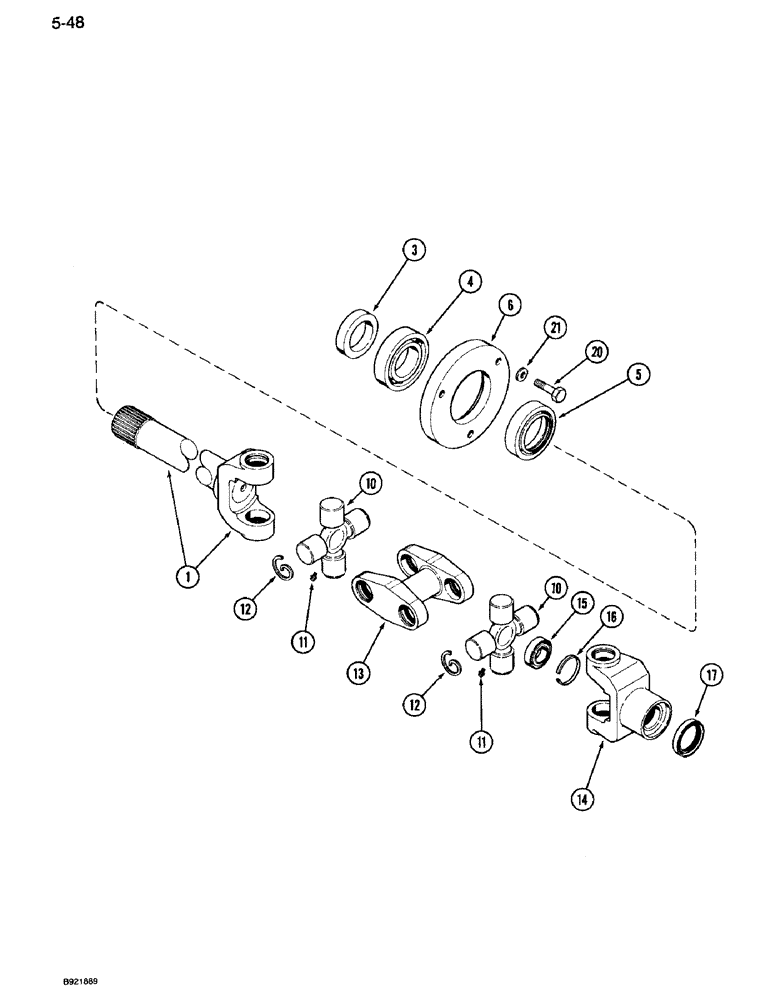

Схема запчастей Case IH 7120 - (5-48) - FRONT AXLE SHAFT, MFD TRACTOR (05) - STEERING
12
6
4
17
21
15
16
11
14
3
5
13
11
1
20
10
10
12

Артикул

Название

Примечание

Количество

1349307C1

AXLE, FRONT

AXLE ASSEMBLY - front, with four pin planetary, Includes: Ref. 1 - 21

1шт.

1342604C2

AXLE

ASSEMBLY - front, with three pin planetary, Includes: Ref. 1 - 21

1шт.

1

1961775C1

SHAFT

ASSEMBLY - axle, left, Includes: Ref. 3 - 6

1шт.

1

1968286C1

SHAFT ASSY.

SHAFT ASSEMBLY - axle, right, shown, Includes: Ref. 3 - 6

1шт.

1277253C1

PACKAGE

BEARING AND SEAL KIT - axle, Includes: Ref. 3 - 5

1шт.

3

N8429

RETAINER

- bearing, NSS

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

5

A76014

OIL SEAL

- oil

1шт.

6

1997795C1

SHIN

RETAINER - axle

1шт.

10

1961778C1

BEARING ASSY

KIT - bearing, axle shaft, Includes: Ref. 11 and 12

4шт.

11

NSS

NOT SOLD SEPARAT

FITTING - grease

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

13

1961777C1

YOKE

- center, front axle

2шт.

14

1961798C1

YOKE

- outer, front axle, Includes: Ref. 15, 16, and 17

2шт.

15

1961753C1

SEAL

- yoke, inner

1шт.

16

1277405C1

RING

- retaining

1шт.

17

1287608C1

SEAL

- outer, yoke

1шт.

See NTR SB 014 195 JDS

1шт.

If the tractor is already updated with new seal kit 193075A1 the correct yoke seal is 185760A1, not the one shown. The one shown is the original seal before going to the new kit. BB-TSG 3/7/2001

1шт.

20

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

6шт.

21

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- flat, 13/32 x 13/16 x 1/16 inch

6шт.

Выбрано товаров: 21
