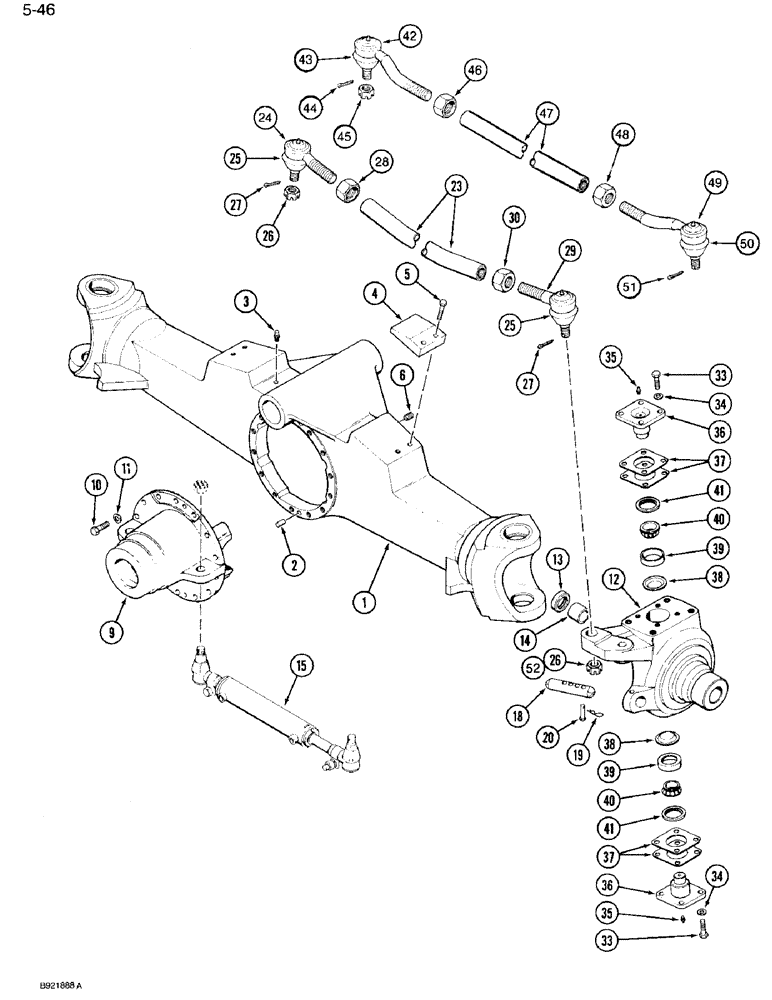

Запчасти Case IH 7120 (5-46) - FRONT AXLE HOUSING, STEERING KNUCKLE AND TIE ROD, MFD TRACTOR (05) - STEERING

1349307C1

AXLE, FRONT

AXLE ASSEMBLY - front, with four pin planetary, Replaces: A183552, includes parts list Figures 5-46 through 5-54, 5-58, and 5-60, Includes: Ref. 1 - 52

1шт.

1342604C2

AXLE

ASSEMBLY - front, with three pin planetary, includes parts list Figures 5-46 through 5-52 and 5-56 through 5-60, Includes: Ref. 1 - 52

1шт.

1

1961740C1

CENTER AXLE

HOUSING ASSEMBLY - axle, front, Includes: Ref. 2

1шт.

2

19904R1

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch

2шт.

3

78787C1

BREATHER

FITTING - vent, axle

1шт.

4

1969527C1

PLATE

- stop, front axle

2шт.

5

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

6

NLS

NO LONGER SERVICED

- square socket, 3/4-14 automotive pipe

2шт.

9

REF

INSTRUCTION

CARRIER AND DIFFERENTIAL ASSEMBLY - front axle, See Figure 5-50

1шт.

10

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

14шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

12

128867A1

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, left, Replaces: 1981277C1, which uses 6 bolt hub retainer and 1961750C1 which uses 3 bolt hub retainer, Includes: Ref. 13

1шт.

12

128875A1

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering, right, Replaces: 1981276C1, which uses 6 bolt hub retainer and 1961756C1 which uses 3 bolt hub retainer, Includes: Ref. 13

1шт.

13

1277242C1

OIL SEAL

- oil, 1961750C1, 1961756C1, 1981276C1 or 1981277C1 knuckle

1шт.

13

128647A1

OIL SEAL

- oil, 128867A1 or 128875A1 knuckle

1шт.

For 7100/7200 series tractors order 193075A2. For 8900 series after axle S/N 92777 order individual seal.

1шт.

14

1961754C1

BUSHING

- spindle

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, left, See Figure 5-58 or 5-60

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, right, See Figure 5-58 or 5-60, shown

1шт.

18

1969526C1

ROD

- stop, steering

2шт.

18

1974526C1

ROD

- stop, steering, use with 13.6 x 28 tires only

2шт.

19

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair

2шт.

20

20243R1

CLEVIS PIN,3/4" x 2.672"

PIN - clevis, 3/4 x 2-43/64 inch

2шт.

23

1969842C1

TUBE

tie rod, oal is 49.62, if used

1шт.

24

1277452C1

BALL JOINT

END ASSEMBLY - tie rod, left hand thread, if used, Includes: Ref. 25, 26, and 27

1шт.

25

1342940C1

BOOT

- dust, rod end

1шт.

26

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF, grade 8

1шт.

27

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

28

1287611C1

JAM NUT

- hex jam, 1-1/8 inch NF, left hand thread, if used

1шт.

29

1277451C1

BALL JOINT

END ASSEMBLY - tie rod, right hand thread, Includes: Ref. 25, 26, and 27, if used

1шт.

30

1287610C1

JAM NUT

- hex jam, 1-1/8 inch NF, if used

1шт.

33

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

16шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

35

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, used on P/N 1277406C1 pin

4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, used on P/N 1277406C2 pin

4шт.

36

1277406C1

BALL STUD

BALL PIN

4шт.

37

473001C1

SHIM

- king pin, 0.005 inch

1шт.

37

78810C1

SHIM

- king pin, 0.010 inch

1шт.

38

1277271C1

RETAINER

- grease

4шт.

39

671033R1

BEARING, CUP

CUP - bearing

4шт.

40

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

BEARING - tapered

4шт.

41

1277270C1

OIL SEAL

SEAL - king pin

4шт.

122421A1

TIE-ROD

TIE ROD ASSEMBLY - complete, front axle, if used, Includes: P/N 128609A1 & Ref. 42 - 52

1шт.

128609A1

BALL JOINT

JOINT ASSEMBLY - ball, tie rod, left-hand thread, Includes: Ref. 42 - 45

1шт.

42

NSS

NOT SOLD SEPARAT

JOINT - ball, left-hand thread

1шт.

43

1342940C1

BOOT

- ball joint

1шт.

44

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

45

429-1314

NUT,7/8"-14, G8

NUT - castle, 7/8 inch NF, grade 8

1шт.

46

128591A1

NUT

- hex, left-hand thread

1шт.

47

128642A1

TUBE

ROD tie, oal is 37.44

1шт.

48

128589A1

NUT

- hex, right-hand thread

1шт.

128604A1

BALL JOINT

JOINT ASSEMBLY - ball, tie rod, right-hand thread, Includes: Ref. 49 - 52

1шт.

49

NSS

NOT SOLD SEPARAT

JOINT - ball, right-hand thread

1шт.

50

1342940C1

BOOT

- dust, ball joint

1шт.

51

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

52

429-1314

NUT,7/8"-14, G8

NUT - castle, 7/8 inch NF, grade 8

1шт.

1277406C1

BALL STUD

BALL PIN

1шт.
