Запчасти Case IH 7120 (5-44) - FRONT AXLE SUPPORT, MFD TRACTOR (05) - STEERING

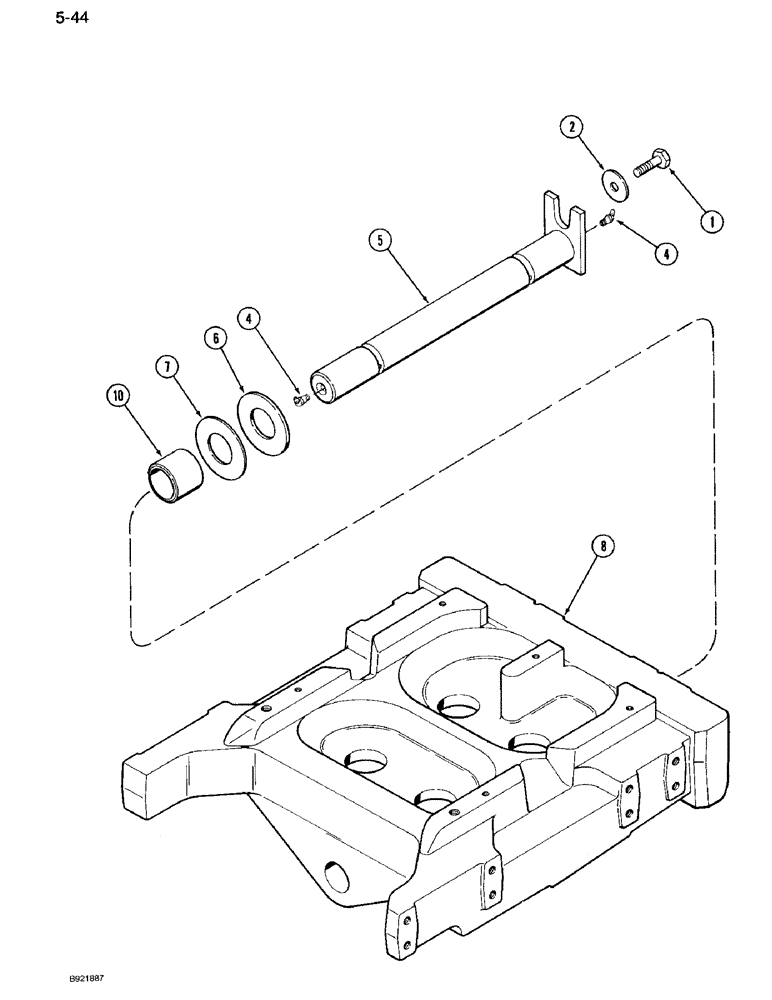

Схема запчастей Case IH 7120 - (5-44) - FRONT AXLE SUPPORT, MFD TRACTOR (05) - STEERING
5
10
6
4
4
1
2
8
7

Артикул

Название

Примечание

Количество

1

30225R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

- hex, 12 mm - 1.75 x 30 mm

1шт.

2

101936C2

WASHER

- pivot, support pin

1шт.

4

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

2шт.

5

1348230C1

PIVOT PIN,49.95mm OD x 530mm L

PIN - pivot, front axle, Replaces: 1334279C2

1шт.

6

A177855

SEALING WASHER,50.3mm ID x 90mm OD x 4.9mm Thk

thrust, axle pivot

2шт.

7

A177854

WASHER,50.3mm ID x 90mm OD x 1.6mm Thk

pivot, front axle

1шт.

8

A185918

SUPPORT ASSY.

SUPPORT - axle, front

1шт.

10

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- pivot, front

2шт.

Выбрано товаров: 9
