Запчасти Case IH 7120 (5-40) - ADJUSTABLE FRONT AXLE, SPINDLE AND WHEEL HUB, TWO WHEEL DRIVE (05) - STEERING

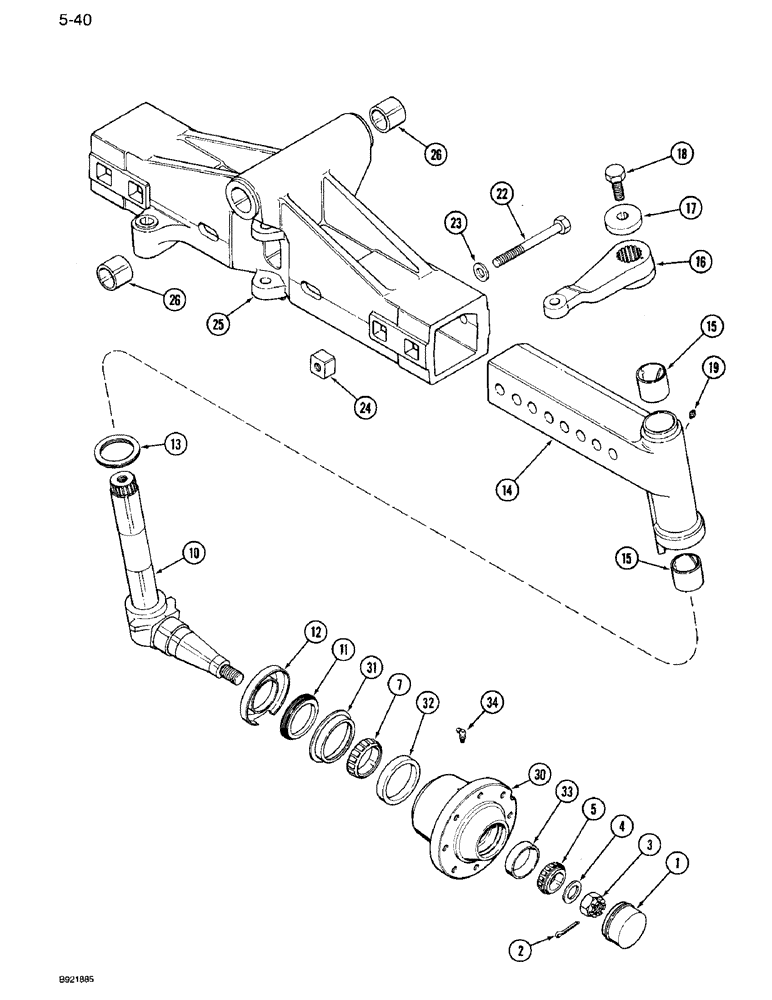

Схема запчастей Case IH 7120 - (5-40) - ADJUSTABLE FRONT AXLE, SPINDLE AND WHEEL HUB, TWO WHEEL DRIVE (05) - STEERING
1
18
34
14
30
7
23
2
17
12
32
24
31
10
13
15
15
26
26
25
19
11
16
5
3
22
33
4

Артикул

Название

Примечание

Количество

1

189425C1

HUB CAP

CAP - wheel hub

2шт.

2

732-6350

COTTER PIN,M6.3 x 50

PIN, SPLIT (COTTER), M6.3 x 50

2шт.

3

1259683C1

NUT

- hex slotted, spindle

2шт.

4

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

- flat, 33 x 56 x 5 mm

2шт.

5

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING - outer

2шт.

7

ST753B

BEARING ASSY,66.67mm ID x 22mm W

BEARING - inner, 2-5/8 inch ID

2шт.

10

1259519C2

STEERING KNUCKLE

SPINDLE ASSEMBLY - front wheel, Includes: Ref. 11 and 12

2шт.

11

491641C1

SEAL

- front wheel spindle

1шт.

12

1259522C1

SHIELD

- front wheel spindle

1шт.

13

1270815C1

THRUST BEARING

- thrust wheel spindle

2шт.

14

1264574C2

EXTENSION ASSY.

AXLE ASSEMBLY - section, left, Incl. Ref. 15

1шт.

14

1264575C2

EXTENSION ASSY.

AXLE ASSEMBLY - section, right, shown

1шт.

15

1259518C1

BUSHING,63.53mm ID x 67.21mm OD x 50.8mm L

- spindle

2шт.

16

1259526C2

ARM

- steering spindle left

1шт.

16

1259527C2

STEERING ARM

ARM - steering spindle right, shown

1шт.

17

1259669C2

WASHER

- steering arm retainer

2шт.

18

614-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd

2шт.

19

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16"

2шт.

22

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

4шт.

23

896-12024

WASHER,26mm ID x 44mm OD x 5mm Thk

- flat, 24 mm ID

4шт.

24

1264635C1

NUT

- axle clamping

4шт.

25

1289100C3

CENTER AXLE

AXLE ASSEMBLY - section, center, Includes: Ref. 26

1шт.

26

A177916

BUSHING,50.3mm ID x 64.96mm OD x 50mm L

- front pivot

2шт.

30

1259528C1

HUB

ASSEMBLY - wheel, front, Includes: Ref. 31 - 33

2шт.

31

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

RETAINER - hub seal

1шт.

32

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, inner

1шт.

33

130503H

BEARING CUP

CUP - bearing, inner

1шт.

34

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45°, 3/16 drive type x 13/16"

2шт.

1978511C1

AXLE standard, complete, machinery item only, not valid at parts.

1шт.

B93177

BEARING

KIT, Includes: P/N's ST753B, 29214G, 130504H, 130513H, 1264549C1, and 491641C1

1шт.

ST753B

BEARING ASSY,66.67mm ID x 22mm W

1шт.

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP

1шт.

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

CONE

1шт.

130513H

CUP

1шт.

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

WASHER

1шт.

491641C1

SEAL

1шт.

Выбрано товаров: 36
