Запчасти Case IH 7120 (5-36) - STEERING CYLINDER ASSEMBLY, TWO WHEEL DRIVE (05) - STEERING

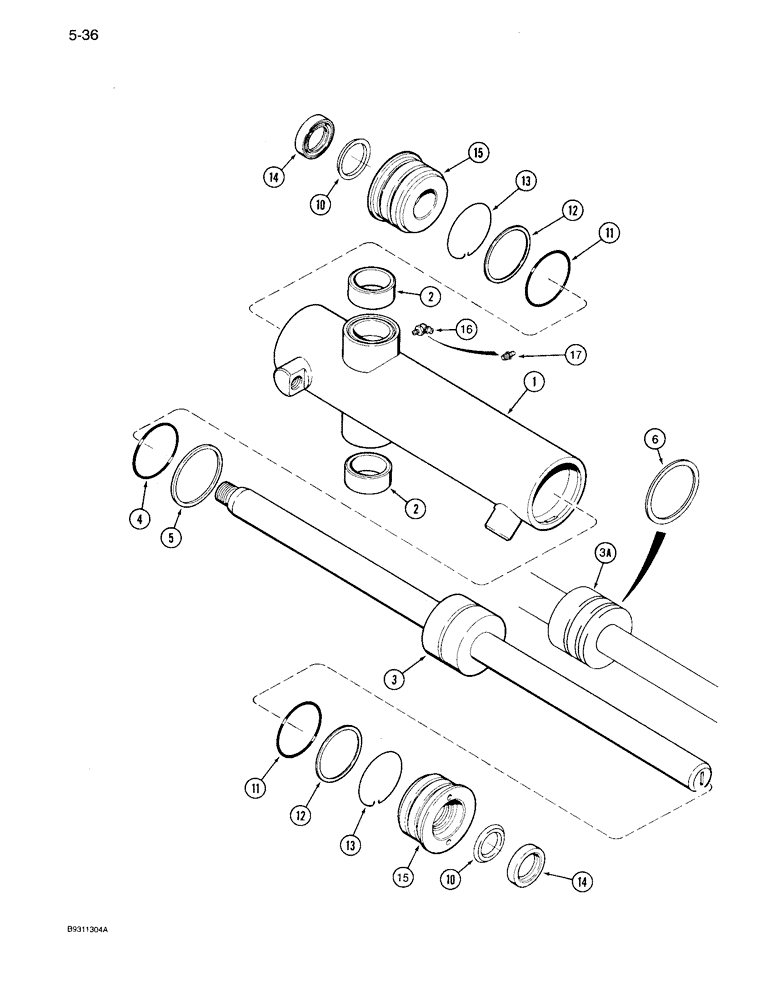

Схема запчастей Case IH 7120 - (5-36) - STEERING CYLINDER ASSEMBLY, TWO WHEEL DRIVE (05) - STEERING
15
4
3
10
2
3a
13
10
13
1
16
6
12
2
11
12
17
5
15
14
11
14

Артикул

Название

Примечание

Количество

93194C6

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, uses ref. 16, 65 degree fitting, no longer available, order 93194C8 cylinder, Includes: Ref. 1 - 15

1шт.

93194C9R

REMAN-HYD CYLINDER

7110, 7120, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), CYLINDER ASSEMBLY - steering (10/87-12/93), Reman For New PN 93194C6

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

93194C7

CYLINDER

ASSEMBLY - steering, uses ref. 17, straight fitting, no longer available, order 93194C8 cylinder, Includes: Ref. 1 - 15

1шт.

93194C9R

REMAN-HYD CYLINDER

7110, 7120, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), CYLINDER ASSEMBLY - steering (10/87-12/93), Reman For New PN 93194C7

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, uses ref. 17, straight fitting, Includes: Ref. 1 - 15

1шт.

93194C9R

REMAN-HYD CYLINDER

7110, 7120, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), CYLINDER ASSEMBLY - steering (10/87-12/93), Reman For New PN 93194C8

1шт.

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1

1954124C4

HYD CYL SLEEVE

TUBE - cylinder body, Replaces: 1954124C3, Includes: Ref. 2

1шт.

2

1255304C1

BUSHING

- pivot

2шт.

3

1255306C4

PISTON ROD

ROD - piston, cylinder, Replaces: 1255306C2, no longer available, order 1255306C5 and 80448C2 seal kit

1шт.

3a

1255306C5

PISTON ROD

ROD - piston, cylinder, used with ref. 6 bearing

1шт.

80448C2

SEAL KIT

KIT - seal, Replaces: 80448C1, Includes: Ref. 4 - 14

1шт.

4

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

5

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

SEAL - piston, cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - 1255306C5 piston rod

1шт.

10

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- piston rod

2шт.

11

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

End -143, 90 Duro, 2.425" ID x .103" Thk

2шт.

12

1255311C1

WASHER

- backup

2шт.

13

1255312C1

RETAINING WIRE

RING - retaining

2шт.

14

D95141

WIPER SEAL

SEAL - wiper, piston rod

2шт.

15

1255310C1

HEAD (CYLINDER)

GLAND - end, cylinder

2шт.

16

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch, available, order 1255306C5 rod and 80448C2 seal kit

2шт.

17

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32", Used with 93194C7 or 93194C8 cylinder only, if used

2шт.

Выбрано товаров: 25
