Запчасти Case IH 7120 (5-34) - STEERING PRIORITY VALVE ASSEMBLY, P/N G108966 (05) - STEERING

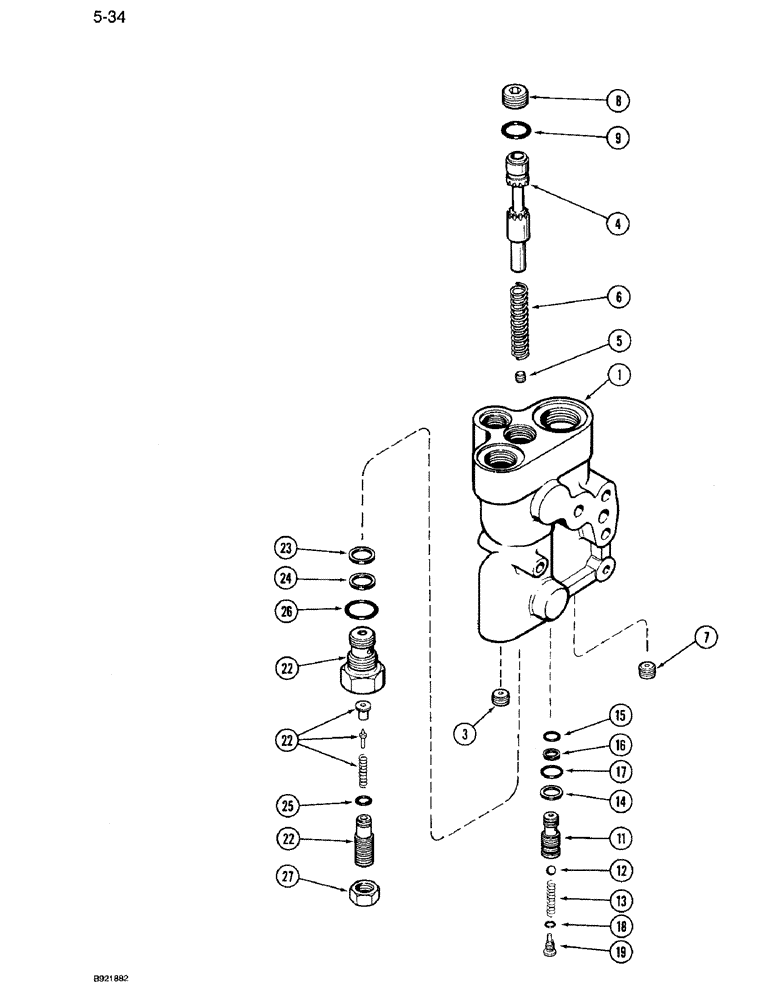

Схема запчастей Case IH 7120 - (5-34) - STEERING PRIORITY VALVE ASSEMBLY, P/N G108966 (05) - STEERING
13
17
5
22
15
26
7
9
8
6
16
25
23
11
12
1
22
3
27
14
19
18
22
24
4

Артикул

Название

Примечание

Количество

G108966

LOCK VALVE

VALVE ASSEMBLY - priority, steering, no longer available, order 1994591C3 on Figure 5-35A, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order G108966

1шт.

3

G110017

PLUG

- orifice

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, order G108966

1шт.

5

G108700

PLUG

- orifice, spool

1шт.

6

G110111

VALVE SPRING

SPRING - priority

1шт.

7

G110240

PLUG

- orifice

1шт.

8

86625138

PLUG,7/18" - 14

Assy, Spool, 5/8 inch PT, Includes Ref. 9 Hex Soc, 7/8"-14 ORB

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 7/64 inch

1шт.

11

G108633

CHECK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 12 - 19

1шт.

12

211-256

BALL

- steel, 7/32 inch diameter

1шт.

13

G108938

VALVE SPRING

SPRING - load

1шт.

14

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

15

G108724

BACK-UP RING

RING - backup

1шт.

16

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- 3/8 x 1/2 x 1/16 inch

1шт.

17

392382R1

O-RING,0.551" ID x 0.07" Width

- 9/16 x 11/16 x 1/16 inch

1шт.

18

218-5001

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

19

G108612

PLUG

- seat

1шт.

22

G108868

VALVE PRESSURE RELIE

RELIEF ASSEMBLY - pilot, Includes: Ref. 23 - 27

1шт.

23

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- pilot relief

1шт.

24

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup

1шт.

25

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- 3/8 x 1/2 x 1/16 inch

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

1шт.

Выбрано товаров: 24
