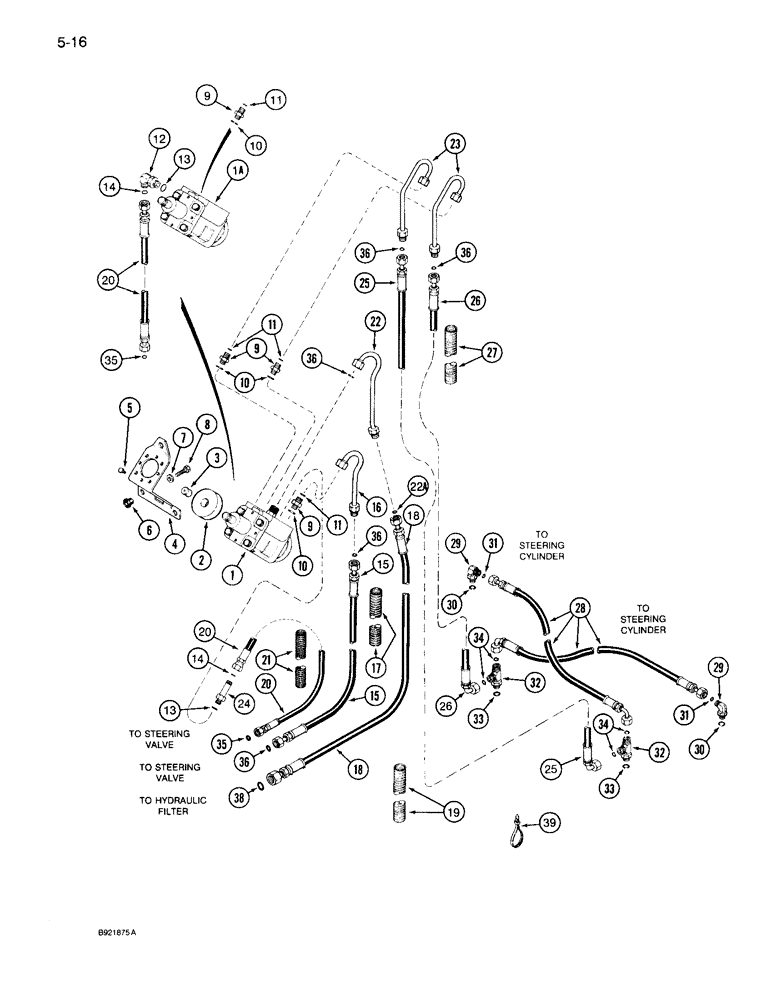

Запчасти Case IH 7120 (5-16) - HYDROSTATIC STEERING SYSTEM, STEERING PUMP TO STEERING CYLINDER, EATON PUMP, MFD TRACTOR (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering, hydrostatic, See Figure 5-32, no longer available, for service order 1542617C1, (1) 1542766C1 hose, and (1) 201-303 elbow, ref. 1A, 12 and 20

1шт.

If Eaton pump is ordered as replacement for TRW pump, also order 1 each of Ref. 2, 9, 12, 16, 20, 21, 22 and order 2 of Ref. 23.

1шт.

1a

1542617C2

PUMP

ASSEMBLY - steering, parts list Figure 5-33A

1шт.

225390A2R

REMAN-HYD PUMP

7110, 7120, all (10/87 - 12/93), Reman for New P/N 1542617C2

1шт.

225390A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

1977683C1

SEAL

SEAL - dust, shaft

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR - vibration, shaft

1шт.

4

1344478C1

SUPPORT

BRACKET - mounting, pump, Replaces: 96965C1

1шт.

5

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

6

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

- isomount, pump

3шт.

7

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch

3шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 x 35 mm

3шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 10 and 11 13/16"-16 ORFS x 3/4"-16 ORB

3-4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

12

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

- 90 deg, 9/16-18 face x 7/16-20 inch adj. O-ring, if used, Includes: Ref. 13 and 14

1шт.

S/B NTR SB 059 88 FOR CONNECTORS

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

1шт.

15

1334378C1

HOSE ASSY.,12.7mm ID x 533mm L

HOSE - steering supply

1шт.

16

1978481C1

HYD TUBE

TUBE - steering supply, upper

1шт.

17

1342026C2

PIPE

TUBING - corrugated

1шт.

18

1289468C1

HOSE ASSY.,15.88mm ID x 457.2mm L, SAE 100R3

HOSE - return, steering, Serial Range: -JJA0027701

1шт.

18

1342123C2

HOSE,15.88mm ID x 967mm L, SAE 100R3

- return, steering, Start Serial: JJA0027701

1шт.

19

NSS

NOT SOLD SEPARAT

TUBING - corrugated, 41 ID x 475 mm, order 1334592C3 and, Serial Range: cut-length

1шт.

20

1542766C1

HOSE,6.35mm ID x 650mm L

- steering signal, 1/4 x 24 inch, if equipped

1шт.

20

1978483C2

HOSE ASSY.

HOSE - steering signal, 1/4 x 43 inch, if equipped

1шт.

21

NSS

NOT SOLD SEPARAT

TUBING - corrugated, order 1968083C3 and, Serial Range: cut-length

1шт.

22

1978482C1

HYD TUBE

TUBE - steering return, Includes: Ref. 22A

1шт.

22a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

1978480C1

HYD TUBE

TUBE - right and left turn

2шт.

24

1342126C1

FITTING

ADAPTER - straight, 3-1/4 inch long, includes O-rings, ref. 13 and 14, if used

1шт.

25

1976786C1

HOSE ASSY.,12.7mm ID x 2515mm L

HOSE - left turn

1шт.

26

1976799C1

HOSE ASSY.,12.7mm ID x 2108mm L

HOSE - right turn

1шт.

27

1342026C2

PIPE

TUBING - corrugated

2шт.

28

1978404C1

HOSE ASSY.,9.5mm ID x 787mm L, SAE 100R1

HOSE - crossover 31" overall length - 100R17 - 3/8" hose - both female ends - (1) 90 degree end w/o-ring face seal, 13/16"-16 thread - (1) straight o-ring face seal end with 11/16"-16 thread

2шт.

29

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 deg adjustable, 11/16-16 face x 9/16-18 inch O-ring, Includes: Ref. 30 and 31

2шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

32

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 13/16-16 face branch x face x 3/4-16 inch adj. O-ring, Includes: Ref. 33 and 34

2шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

2шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4-5шт.

38

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
