Запчасти Case IH 7120 (5-10) - HYDROSTATIC STEERING SYSTEM, STEERING PUMP TO STEERING CYLINDER, TRW PUMP, TWO WHEEL DRIVE (05) - STEERING

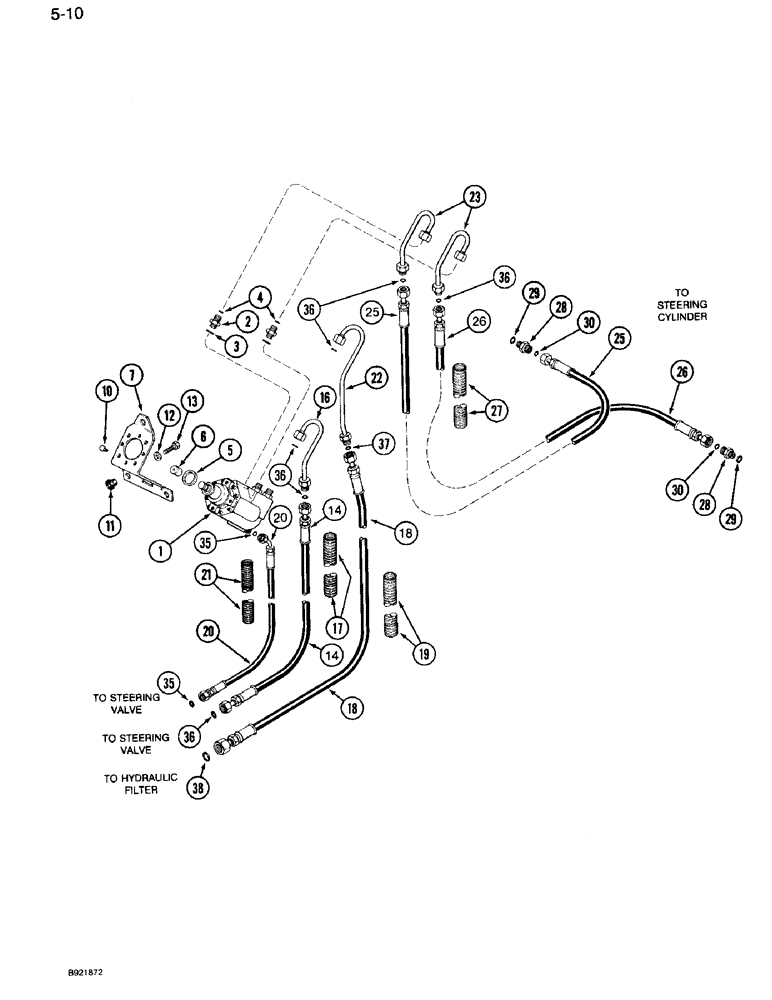

Схема запчастей Case IH 7120 - (5-10) - HYDROSTATIC STEERING SYSTEM, STEERING PUMP TO STEERING CYLINDER, TRW PUMP, TWO WHEEL DRIVE (05) - STEERING
17
29
14
27
1
36
11
36
35
16
21
5
25
29
13
18
2
26
26
25
30
6
22
4
10
20
12
7
37
18
36
38
23
36
28
19
35
14
3
30
20
28

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering, hydrostatic, See Figure 5-22

1шт.

If TRW pump is replaced with Eaton pump, additional parts must be replaced also. See Figure 5-12.

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 3 and 4 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

5

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

- dust, shaft

1шт.

6

104008C1

RUBBER INSULATOR

INSULATOR - vibration, shaft

1шт.

7

1344478C1

SUPPORT

BRACKET - mounting, pump, Replaces: 96965C1

1шт.

10

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

11

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

- isomount, pump

3шт.

12

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 13/32 x 1-1/16 x 3/32 inch

3шт.

13

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

14

1334378C1

HOSE ASSY.,12.7mm ID x 533mm L

HOSE - steering supply

1шт.

16

1334397C1

HYD TUBE

TUBE - steering supply, upper

1шт.

17

1334592C3

TUBE

TUBING - corrugated, 41 ID x 585 mm

1шт.

18

1289468C1

HOSE ASSY.,15.88mm ID x 457.2mm L, SAE 100R3

HOSE - return, steering, Serial Range: -JJA0027701

1шт.

18

1342123C2

HOSE,15.88mm ID x 967mm L, SAE 100R3

- return, steering, Start Serial: JJA0027701

1шт.

19

NSS

NOT SOLD SEPARAT

TUBING - corrugated, 41 ID x 475 mm, order 1334592C3 and, Serial Range: cut-length

1шт.

20

1334384C2

HOSE ASSY.,9.53mm ID x 558.8mm L, SAE 100R2

HOSE - steering signal

1шт.

21

1334591C3

TUBE,27 mm ID, 34 mm OD

TUBING - corrugated, 27 ID x 585 mm, order 1968083C3 and cut to length

1шт.

22

1334202C1

HYD TUBE

TUBE - steering return

1шт.

23

1334379C1

HYD TUBE

TUBE - right and left turn

2шт.

25

1334208C1

HOSE ASSY.,9.53mm ID x 2692mm L

HOSE - left turn

1шт.

26

1976794C1

HOSE ASSY.,9.53mm ID x 2108mm L

HOSE - right turn

1шт.

27

1334593C3

TUBE,31.8 mm ID, 36.8 mm OD, 500 mm Length

TUBING - corrugated, 32 ID x 500 mm

2шт.

28

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter, Incl Ref. 29 and 30 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

38

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
