Запчасти Case IH 7120 (5-06) - HYDROSTATIC STEERING SYSTEM, PRIORITY VALVE TO STEERING PUMP, PRIOR TO P.I.N. JJA0027701 (05) - STEERING

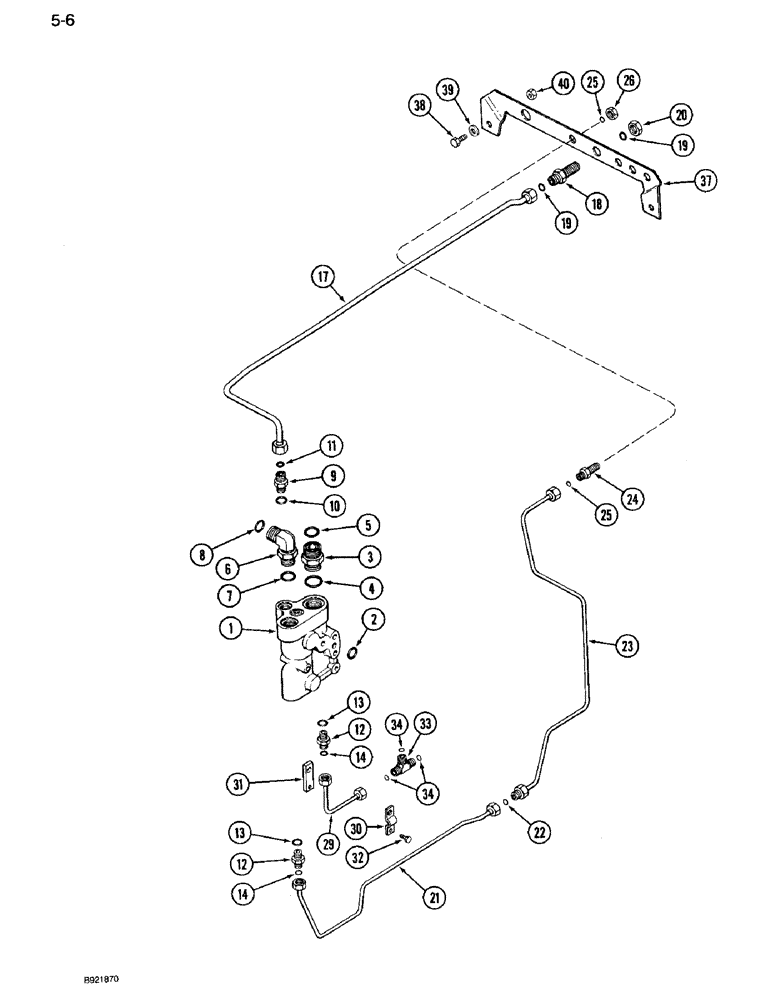

Схема запчастей Case IH 7120 - (5-06) - HYDROSTATIC STEERING SYSTEM, PRIORITY VALVE TO STEERING PUMP, PRIOR TO P.I.N. JJA0027701 (05) - STEERING
12
33
17
20
6
13
10
1
34
37
25
13
19
26
32
40
34
21
25
8
9
31
30
14
12
11
38
5
22
7
14
39
2
3
29
24
23
18
4
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - priority steering, See Figures 5-34 and 5-35A

1шт.

2

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- priority, valve seal

1шт.

3

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16 x 1-5/16 inch thread, Incl. Ref. 4 and 5

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- boss end, 1-11/64 ID x 1/8 inch

1шт.

5

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

1шт.

6

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16 x 1-1/16 inch thread, Includes: Ref. 7 and 8

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 10 and 11 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 13 and 14 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

17

1289466C1

HYD TUBE

TUBE - steering, supply

1шт.

18

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

CONNECTOR, HYD, , Includes Ref. 19 13/16"-16, Blkhd, ORFS

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

2шт.

20

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

21

1289489C2

TUBE ASSY.

TUBE - steering, signal rear

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

23

1289488C2

HYD TUBE

TUBE - steering, signal front

1шт.

24

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

CONNECTOR - bulkhead, 11/16 inch thread, Includes: Ref. 25

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

2шт.

26

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

29

1289370C2

HYD TUBE,0.375" OD, 99.1, 85.2 mm Length

TUBE - pump, signal short

1шт.

30

1334536C2

CLAMP

- 3/8 inch OD tube

1шт.

31

1334535C2

SUPPORT

PLATE - tube, clamp

1шт.

32

615-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, 6 x 12 mm

1шт.

33

201-408

TEE,11/16"-16 ORFS

- union, 11/16 x 11/16 x 11/16 inch thread, Includes: Ref. 34

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

3шт.

37

1334402C2

SUPPORT

BRACKET - support, bulkhead fitting

1шт.

38

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

39

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

40

825-1410

NUT,M10, Cl 8

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
