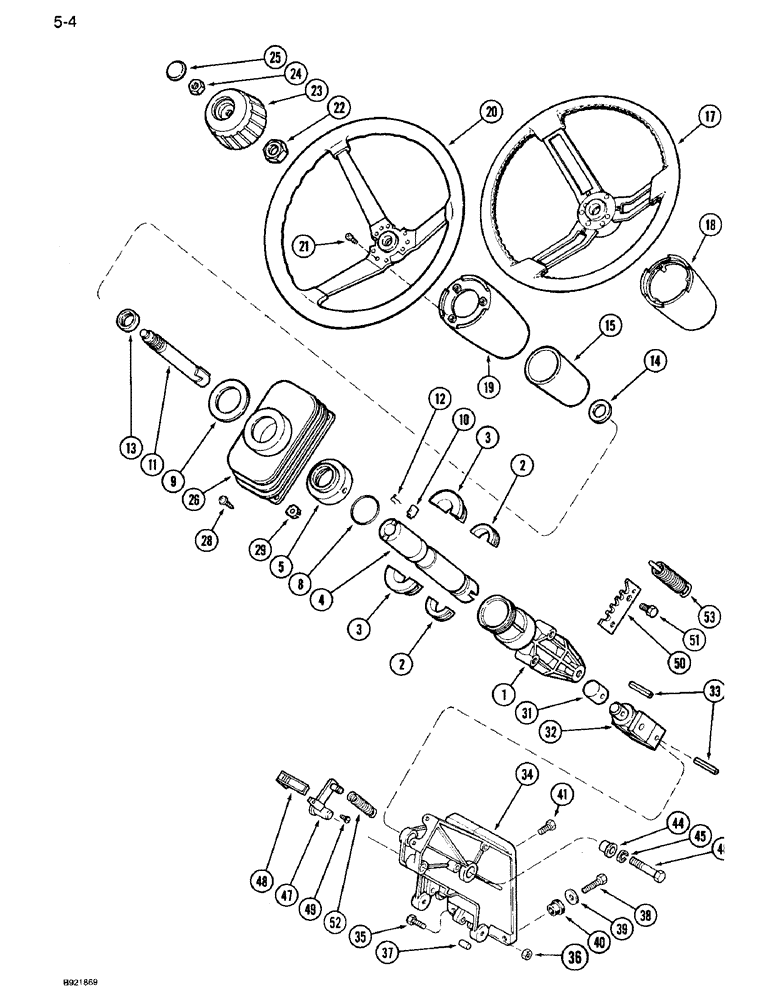

Запчасти Case IH 7120 (5-04) - STEERING WHEEL AND COLUMN, DELUXE (05) - STEERING

1

1989917C1

HOUSING

- support, steering, Replaces: 148422C3

1шт.

2

148424C2

BUSHING,19.1mm ID x 35.05mm OD x 19.05mm L

- column, lower

2шт.

3

103985C1

BUSHING,35.05mm ID x 50.9mm OD x 38.1mm L

- column, upper

2шт.

4

1954243C2

TUBE

- telescoping

1шт.

5

148921C1

CAP

- column

1шт.

8

1348393C1

O-RING,1.984" ID x 0.139" Width

- steering column cap

1шт.

9

1954246C1

WASHER

- shield

1шт.

10

1954248C1

PIN

- stop

1шт.

11

1954247C1

SHAFT

ASSEMBLY - telescoping

1шт.

12

1954249C2

LINCH PIN

CLIP - pin, stop

1шт.

13

1954250C1

GASKET

COLLAR - shaft

1шт.

14

1974758C1

SPACER

- wheel, steering

1шт.

15

1954244C1

PROTECTOR

SHIELD - inner

1шт.

17

1340252C1

STEERING WHEEL

WHEEL - steering, Rectangular Slots in Spokes, Start Serial: JJA0020365

1шт.

18

1340455C1

HUB CAP

- column, Start Serial: JJA0020365

1шт.

19

1974669C1

HUB CAP

HUB - column, Serial Range: -JJA0020365

1шт.

20

1974627C1

SCREW

WHEEL - steering, Tapered Slots in Spokes, Serial Range: -JJA0020365

1шт.

21

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW self tapping, pan Phillips, No. 6-20 x 5/8 inch

3шт.

22

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

23

1974628C1

HUB

- lock, wheel

1шт.

24

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

25

A180055

CAP ASSY.

INSERT - steering wheel, emblem, Case globe and eagle, Replaces: 1342054C1

1шт.

26

1974720C2

BOOT

- column

1шт.

28

1975919C1

SELF-TAP SCREW

- special, No. 10-16 x 1 inch, black

4шт.

29

104036C1

NUT

- hex, expansion

4шт.

31

104008C1

RUBBER INSULATOR

INSULATOR - shaft

1шт.

32

148431C1

JOINT

ASSEMBLY - universal

1шт.

33

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

34

148426C2

SUPPORT ASSY.

SUPPORT ASSEMBLY - column, Includes: Ref. 35, 36, and 37

1шт.

35

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 x 25 mm

2шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

37

837-10016

DOWEL,M10 x 16

PIN - dowel, 10 x 16 mm

2шт.

38

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

39

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, hardened, 13/32 x 1-1/16 x 3/32 inch

3шт.

40

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

ISOMOUNT - mounting

3шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

44

148920C1

BUSHING

- pivot, column

2шт.

45

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

46

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

47

97109C1

LEVER

ASSEMBLY - release, tilt

1шт.

48

97111C4

HANDLE

- lever

1шт.

49

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

- pan head, No. 8 x 5/16 inch

1шт.

50

96972C1

PLATE ASSY.

PLATE - detent, tilt

1шт.

51

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 x 16 mm

2шт.

52

538321R1

SPRING

- detent

1шт.

53

148480C1

SPRING

- support, tilt

1шт.
