Запчасти Case IH 7120 (4-60) - WINDSHIELD WIPER ASSEMBLY (04) - ELECTRICAL SYSTEMS

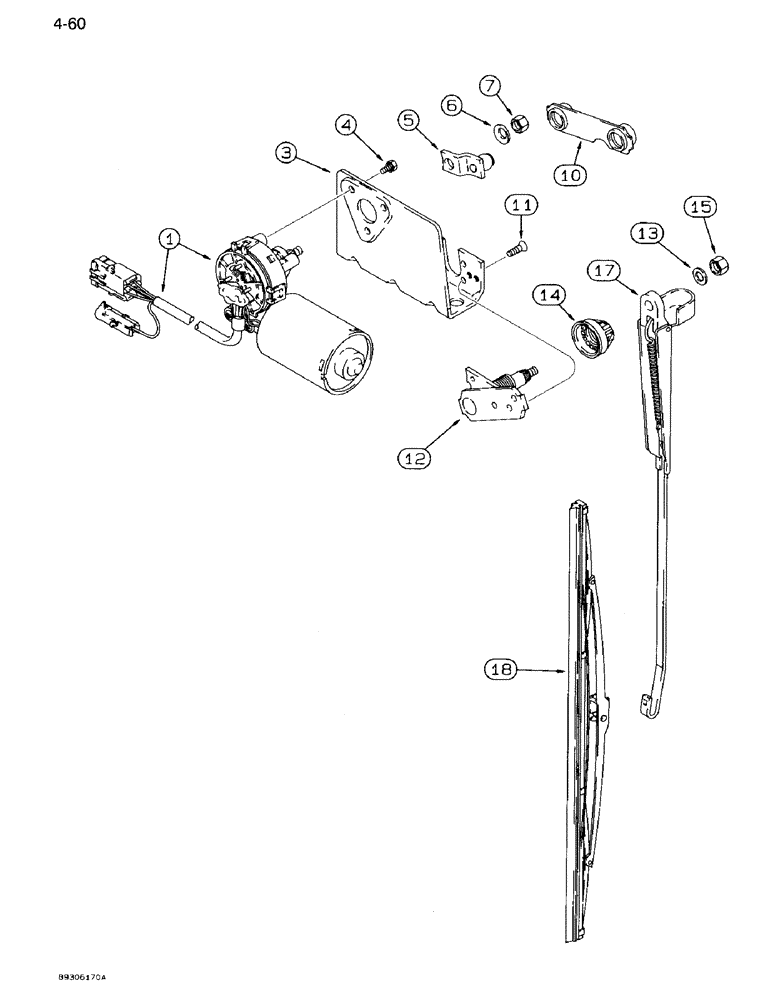

Схема запчастей Case IH 7120 - (4-60) - WINDSHIELD WIPER ASSEMBLY (04) - ELECTRICAL SYSTEMS
6
3
15
13
4
11
7
1
10
14
18
5
12
17

Артикул

Название

Примечание

Количество

A186171

WIPER MOTOR

WIPER ASSEMBLY - windshield, Includes: Ref. 1 - 12

1шт.

1

A186256

WIPER MOTOR,12V

MOTOR ASSEMBLY - wiper 12V

1шт.

3

N8359

SUPPORT

BRACKET - wiper

1шт.

4

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW ASSEMBLY - mounting

3шт.

5

N8360

SUPPORT

ARM - drive

1шт.

6

N8361

SPRING WASHER

- spring, retaining

1шт.

7

L112090

NUT

- hex, 8 mm, retaining

1шт.

10

N8358

LINK

LINK - pivot, wiper

1шт.

11

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- bracket

1шт.

12

N14112

SHAFT

- wiper, with pivot

1шт.

13

L112089

WASHER

- wave

1шт.

14

L112081

CAP

- wiper

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

17

A186222

WIPER ARM,Single, 475mm L

ARM - wiper

1шт.

18

132024A1

WIPER BLADE

BLADE - wiper arm

1шт.

18

132025A1

WIPER BLADE

BLADE - windshield wiper refill

1шт.

Выбрано товаров: 16
