Запчасти Case IH 7120 (4-56) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

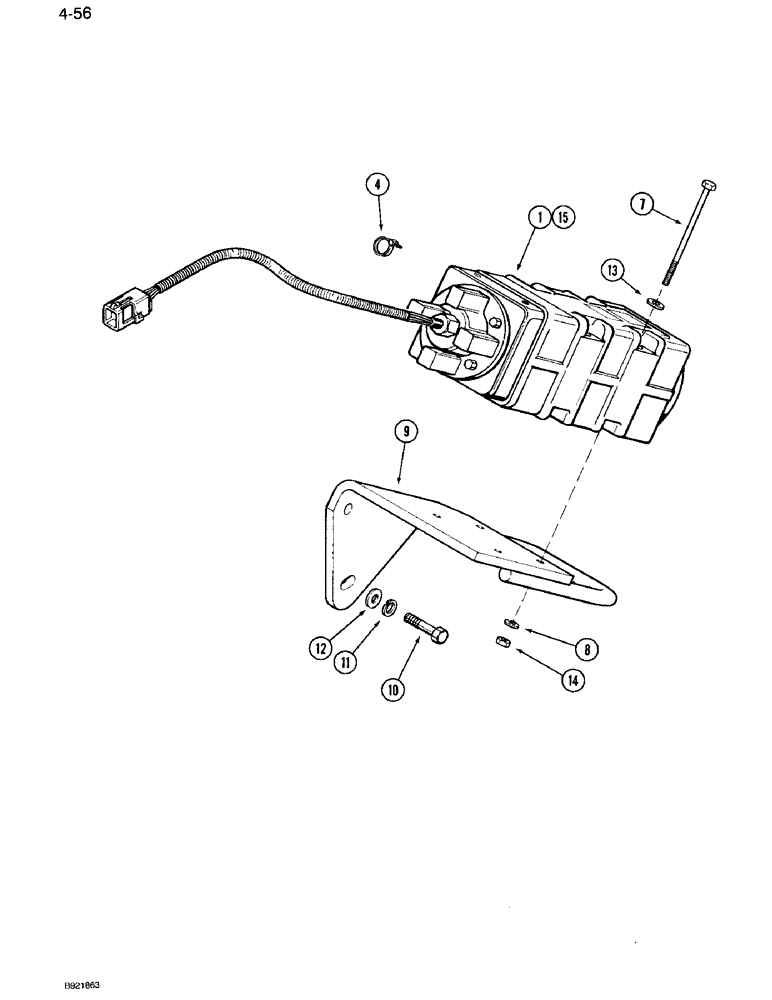

Схема запчастей Case IH 7120 - (4-56) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS
12
15
8
1
4
9
14
7
11
13
10

Артикул

Название

Примечание

Количество

A67922

SENSOR

KIT - ground speed, machinery item, Includes: Ref. 1 - 14

1шт.

1

1935112C1

SPEED LIMITER

SENSOR - ground speed, remanufactured sensor, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

87733890R

REMAN-SENSOR

7110, 7120, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), SENSOR - ground speed (10/87-12/93), Reman for New PN 1935112C1

1шт.

1

87733890C

CORE-SENSOR

Return Number

1шт.

1

1935111C1

CORE-MONITOR

RETURN NUMBER - use this part number to return sensor core for credit when using a remanufactured assembly

1шт.

1

1983294C1

SPEED LIMITER

SENSOR - ground speed, new, Includes warning decal

1шт.

1

87733890R

REMAN-SENSOR

7110, 7120, Both CASE IH MAGNUM TRACTOR (NORTH AMERICA), SENSOR ASSEMBLY new, includes decal (10/87-12/93), Reman for New PN 1983294C1

1шт.

1

87733890C

CORE-SENSOR

Return Number

1шт.

REF

INSTRUCTION

DECAL - warning, to avoid possible eye damage, See Figure 9-158, Ref. 7

3шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

7

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

1960847C2

SUPPORT

BRACKET - speed sensor, Replaces: 1960847C1

1шт.

10

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Used with ref. 11 lock washer Hex, M10 x 30, 8.8

2шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used without ref. 11 lock washer Hex, M10 x 20, 8.8, Full Thd

2шт.

11

892-11010

LOCK WASHER,M10

If used M10

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

15

A187582

RELAY

SENSOR - ground speed, not North America, with decal, See Figure 9-158, Ref. 7

1шт.

Выбрано товаров: 20
