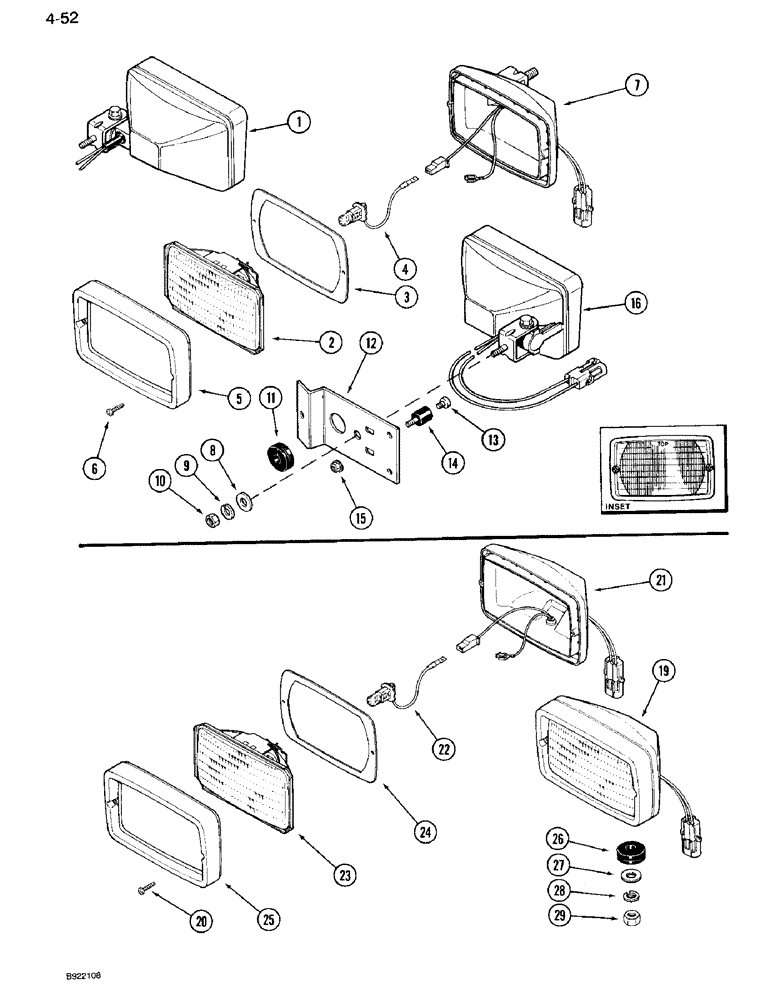

Запчасти Case IH 7120 (4-52) - LAMP ASSEMBLIES, LOWER FRONT FLOOD LAMP ASSEMBLY, FENDER FLOOD LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

A187547

LAMP

FLOOD LAMP KIT - lower front, machinery item, assembly, Includes: Ref. 1 - 16

2шт.

1

92266C1

HEADLIGHT

LAMP ASSEMBLY - flood, left, lower front, Includes: Ref. 2 - 7

1шт.

2

1964807C1

LAMP BASE

LENS - reflector, lamp, lower front, flood, assembly, Includes: Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens, lower front flood lamp assembly

1шт.

4

1312210C1

BULB

- lamp, lower front, flood, assembly

1шт.

5

1964806C1

BEZEL

HOUSING - front, lamp, lower, flood, assembly

1шт.

6

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

SCREW - pan head, 1/4-20 x 3/8 inch, Lower front flood lamp assembly

2шт.

7

NSS

NOT SOLD SEPARAT

BASE - lamp, lower front, flood, assembly

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Lower front flood lamp assembly M11 x 24 x 2

1шт.

9

892-11010

LOCK WASHER,M10

Lower front flood lamp assembly M10

1шт.

10

825-1410

NUT,M10, Cl 8

Lower front flood lamp assembly M10, Cl 8

1шт.

11

96901C1

GROMMET

- lamp wiring, lower front, flood, assembly

1шт.

12

1334607C2

BRACKET

- mounting, flood lamp, lower front, assembly

1шт.

13

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

BOLT - special, 1/4 NC x 3/8 inch, lower front flood lamp assembly

3шт.

14

1334650C1

SHOCK ABSORBER

MOUNT - rubber, lower front flood lamp assembly

3шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Lower front flood lamp assembly Flg, USR, 1/4"-20

3шт.

16

92265C1

LAMP

ASSEMBLY - flood, right, lower front, Includes: Ref 2 - 7

1шт.

A187548

LIGHT

FLOOD LAMP KIT - fender, machinery item, assembly, Includes: Ref. 19 - 29

2шт.

19

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

LAMP ASSEMBLY - flood, fender, Includes: Ref. 20 - 25

1шт.

20

760-14319

SELF-TAP SCREW,Pan Hd, M4.2 x 19

SCREW - pan head, 1/4-20 x 3/8 inch, Fender flood lamp assembly

2шт.

21

NSS

NOT SOLD SEPARAT

BASE - lamp, fender flood lamp assembly

1шт.

22

1312210C1

BULB

- lamp, fender flood, assembly

1шт.

23

1964807C1

LAMP BASE

LENS - reflector, lamp, fender flood, assembly, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET - lens, fender flood lamp assembly

1шт.

25

1964806C1

BEZEL

HOUSING - front, lamp, fender flood, assembly

1шт.

26

96901C1

GROMMET

- lamp wiring, fender flood, assembly

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Fender flood lamp assembly M11 x 24 x 2

1шт.

28

892-11010

LOCK WASHER,M10

Fender flood lamp assembly M10

1шт.

29

825-1410

NUT,M10, Cl 8

Fender flood lamp assembly M10, Cl 8

1шт.
