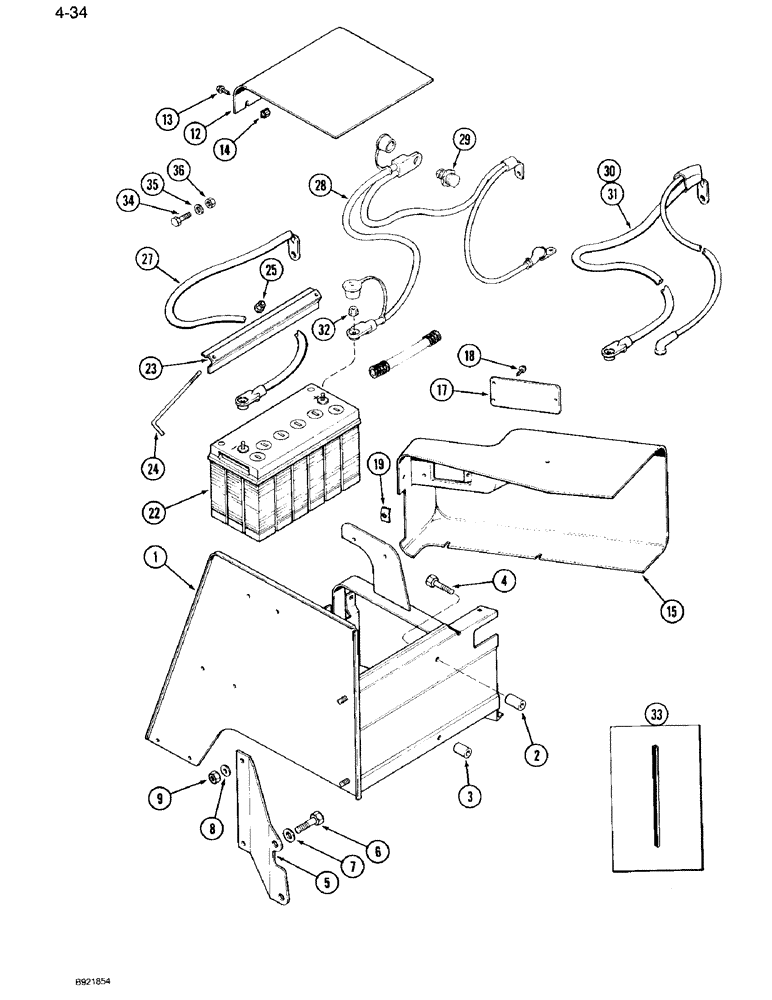

Запчасти Case IH 7110 (4-34) - BATTERY, BATTERY BOX AND CABLES, STUD TYPE CABLES (04) - ELECTRICAL SYSTEMS

1

1955202C1

ELECTRICAL CABINET

BOX - battery, Replaces: 96650C3

1шт.

2

96867C2

SPACER

- box mounting, upper

1шт.

3

96868C2

SPACER

- box mounting, lower

1шт.

4

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

5

96636C1

SUPPORT

- box, rear

1шт.

6

813-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

2шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

9

825-1112

NUT,M12, Cl 8

- hex, 12 mm

2шт.

12

96656C1

COVER

- battery, top

1шт.

13

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

2шт.

14

104036C1

NUT

- tapping screw

6шт.

15

96657C2

COVER

- battery box, front

1шт.

17

1334657C1

LARGE PLATE

PLATE - cover

1шт.

Used on tractors without lower flood lamps.

1шт.

18

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

- pan head, 1/4 NC x 3/8 inch

1шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

22

A186009

DRY BATTERY

- tractor, 12 volt

2шт.

23

96635C1

ANGLE

BRACKET - hold down, battery

2шт.

24

97052C1

TRUSS ROD,5/16" - 18 x 287mm

BOLT - hold down, battery

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

27

1983334C1

CABLE

- battery, negative, 620 mm

1шт.

27

1964845C1

CABLE

- battery, negative, 700 mm

1шт.

28

1983596C1

CABLE

ASSEMBLY - battery, positive, Replaces: 1964843C2

1шт.

29

1983630C1

TERMINAL CONNECTOR

TERMINAL - jump start, positive terminal, Replaces: 1964554C1

1шт.

What a Positive Booster cable attaches to. For the items the negative cable attaches to see Figure 4-2, Refs. 38, 39, 40 and 41.

1шт.

30

1964618C1

POS BATTERY CABLE

CABLE battery, positive, 1300 mm

1шт.

31

1964619C1

CABLE

battery, positive, 1850 mm, single head cable, (art not correct)

1шт.

31

1964844C1

CABLE

battery, positive, 1500 mm, single head cable, (art not correct)

1шт.

32

476074C1

NUT

- battery terminal, if used

5шт.

32a

1964775C1

NUT

- dome, if used, not shown

5шт.

33

1978410C1

MOLDING

TRIM - edge, battery box

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

35

492-11038

LOCK WASHER,3/8"

1шт.

36

425-106

NUT,3/8"-16, Cl 5

1шт.
