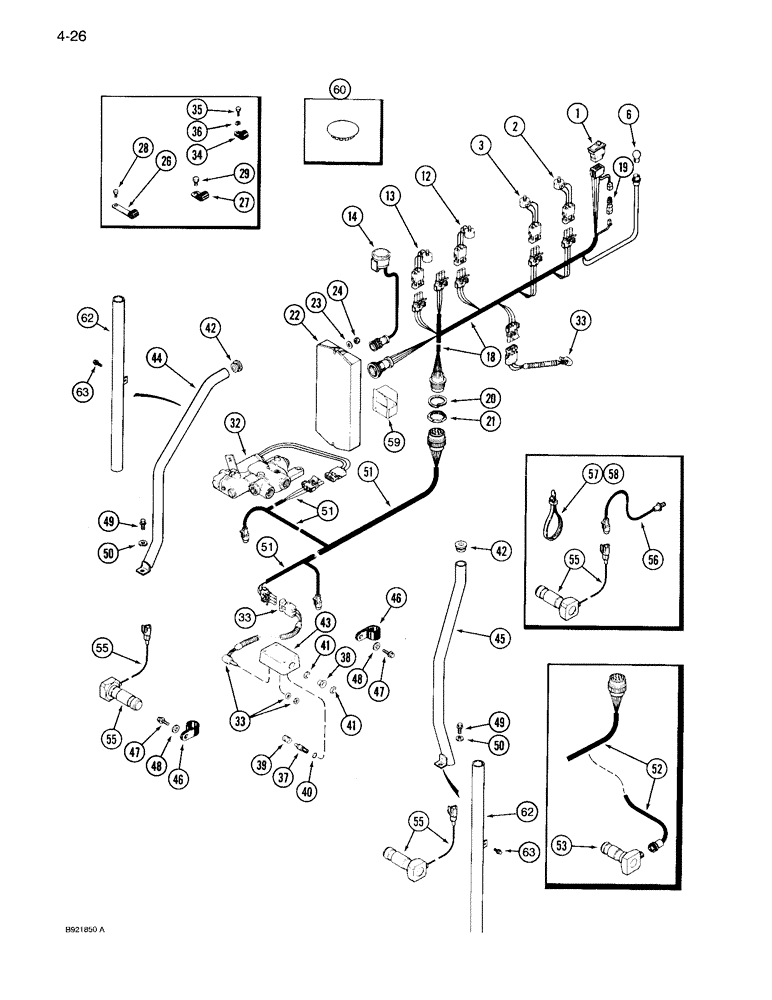

Запчасти Case IH 7110 (4-26) - HITCH CONTROL HARNESSES (04) - ELECTRICAL SYSTEMS

1

1964507C1

SWITCH

- transport, field, Includes rocker switch, bulb, socket and decal

1шт.

91951C1

SWITCH

- rocker, Includes bulb and socket

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

- 2 watt

1шт.

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

83883C1

SYMBOLS

DECAL - black, lens, snap-in

1шт.

2

A186061

POTENTIOMETER,10,000 Ohm, 8V

Gauge, Hitch, See Figure 8-44 for Mounting 10,000 Ohm, 8V

1шт.

3

A186061

POTENTIOMETER,10,000 Ohm, 8V

Gauge, Sensitivity, See Figure 8-44 for Mounting 10,000 Ohm, 8V

1шт.

6

781991C1

BULB,C2F, #182, 14.4V

- light, hitch indicator

1шт.

Lens is P/N 96998C1, also need retainer P/N 1283150C1

1шт.

12

A186061

POTENTIOMETER,10,000 Ohm, 8V

Gauge, Hitch Speed, See Figure 8-44 for Mounting 10,000 Ohm, 8V

1шт.

13

A186061

POTENTIOMETER,10,000 Ohm, 8V

Gauge, Drop Speed, See Figure 8-44 for Mounting 10,000 Ohm, 8V

1шт.

14

1983331C1

GAUGE

- display, seven segment, Replaces: A186064

1шт.

18

92241C2

HARNESS

- hitch control, console, Includes: Ref. 19

1шт.

19

548239R2

RECTIFIER

- harness

1шт.

20

490691C1

LOCK WASHER,#18 Shell

- lock, 1-1/2 inch

1шт.

21

490692C1

LOCK NUT,#18 Shell

- hex, 1-1/2-18 inch

1шт.

22

1546552C1

UNIT

MODULE - hitch, New, Replaces: 1983407C1

1шт.

A186001C

CORE-MODULE

Return Number, MODULE - for N.A. Only

1шт.

1935124C2

UNIT

MODULE - control, electronic hitch, remanufactured

1шт.

1935123C2

CORE-MONITOR

RETURN NUMBER - control module, use this number when returning module core for credit

1шт.

23

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

- flat, 7 x 13 x 2 mm, If equipped

2шт.

23

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch, if equipped

2шт.

24

825-1406

NUT,M6, Cl 8

If equipped M6, Cl 8

2шт.

24

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if equipped

2шт.

26

362126R1

CLIP

CLAMP - harness

4шт.

27

383622R1

CLIP

CLAMP - harness

1шт.

28

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 1/2 inch

3шт.

29

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

32

REF

INSTRUCTION

VALVE ASSEMBLY - hitch, See Figure 8-52

1шт.

33

111448A1

POTENTIOMETER,5000 Ohm, 8V

Hitch Position, Replaces A186003 5000 Ohm, 8V

1шт.

34

299407C1

CLAMP

- harness

1шт.

35

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 x 16 mm

3шт.

36

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

37

1348212C1

SHAFT

- potentiometer sensor, Replaces: 1342170C1

1шт.

38

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Sensor

2шт.

39

A162622

FLEXIBLE COUPLING

COUPLING - flexible

1шт.

40

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- 5/16 x 7/16 x 1/16 inch

1шт.

41

24075T1

RING, SNAP

E-RING - retainer

2шт.

42

1960765C2

GROMMET

- harness, Replaces: 1960765C1

2шт.

43

REF

INSTRUCTION

HOUSING - potentiometer, See Figure 9-002

1шт.

44

1334689C3

TUBE,40 mm Length

- harness, left, if used

1шт.

45

1334688C2

TUBE,40 mm Length

- harness, right, if used

1шт.

46

299608C1

CLAMP,1 1/4", Insul, 1/2" Bolt

- tube, 1-1/4 inch

2шт.

47

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 x 25 mm, class 10.9

2шт.

48

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

49

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

50

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 3 mm

2шт.

51

1983255C2

HARNESS

- hitch control, rear chassis, Replaces: 92240C1

1шт.

Used on pin number JJA0035217 and after. Part number 92240C1 is used on pin number JJA0035216 & prior.

1шт.

52

NSS

NOT SOLD SEPARAT

HARNESS - hitch control, rear chassis, order Ref. 51 and Ref. 55

1шт.

In box at lower right, the big end is for P/N 225232C1.

1шт.

53

NSS

NOT SOLD SEPARAT

PIN - hitch sensing, order Ref. 55

2шт.

55

1964916C3

PIN

- hitch sensing

2шт.

56

1983337C1

HARNESS

- adapter, sensing pin, adapts Ref. 55 to Ref. 52

1шт.

57

3148767R1

CABLE TIE

STRAP - tie, 197 mm

1шт.

58

3402979R1

CABLE TIE

STRAP - tie, 279 mm

2шт.

59

1983430C1

BOX

- filter, if equipped

1шт.

60

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2 inch diameter, without hitch

1шт.

61

245918C1

LENS

PLUG - blanking, without hitch, not shown

1шт.

62

1348057C1

TUBE,239 mm Length

- harness, if used

2шт.

63

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

If used Hex, M10 x 20, 8.8, Full Thd

2шт.
