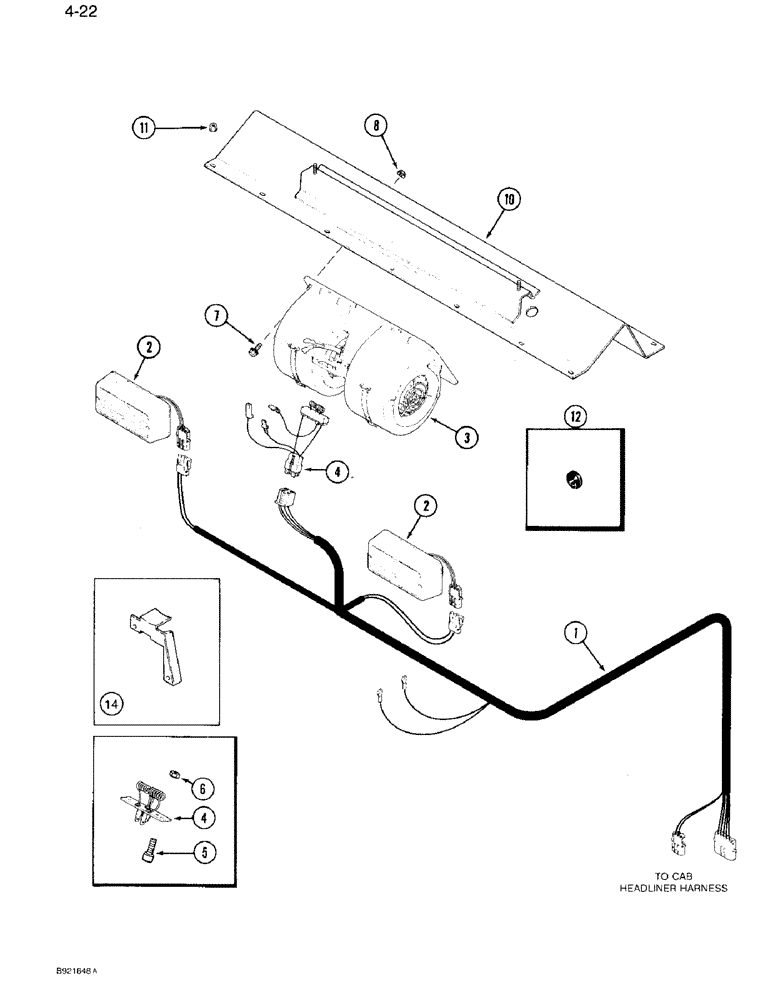

Запчасти Case IH 7110 (4-22) - CAB HEADLINER REAR HARNESS (04) - ELECTRICAL SYSTEMS

1

1987421C1

HARNESS

- rear, headliner, Start Serial: JAB0100387

1шт.

1

1964553C1

HARNESS

- rear, headliner, Serial Range: -JAB0100387

1шт.

2

REF

INSTRUCTION

LAMP ASSEMBLY - warning, See Figure 4-50

2шт.

3

1977564C2

BLOWER

ASSEMBLY - cab, Replaces: 1977564C1, Start Serial: JAB0100387

1шт.

3

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

3

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

3

3233573R1

BLOWER

ASSEMBLY - cab, no longer available, for service order 1977564C2 and 1990860C1 bracket, Refs. 3 and 14, Serial Range: -JAB0100387

1шт.

For service parts see Figure 9-140.

1шт.

4

1343938C1

RESISTOR

- blower, Start Serial: JAB0100387

1шт.

4

1255876C1

RESISTOR

- blower, Serial Range: -JAB0100387

1шт.

5

30495R1

SCREW,Cross Pan Hd, M3 x 12

if equipped Cross Pan Hd, M3 x 12

2шт.

6

824-1403

NUT,M3, Cl 5

If equipped M3, Cl 5

2шт.

7

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange lock, 6 x 20 mm

4шт.

8

97005C1

FLANGE NUT

- hex flange lock, 6 mm

4шт.

10

97032C5

SUPPORT

- blower, Replaces: 97032C4

1шт.

11

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

10шт.

12

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

- harness, for 5/8 inch diameter hole

1шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness, blower resistor support, if used, not shown

2шт.

14

1990860C1

SUPPORT

BRACKET - resistor mounting, if used

1шт.
