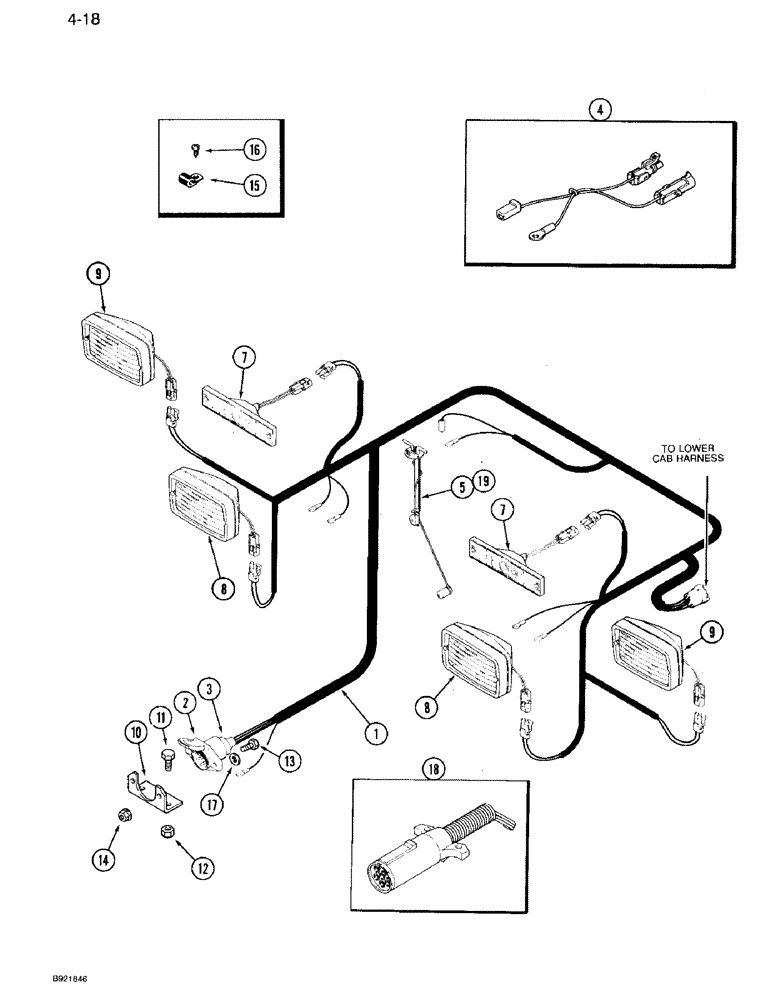

Запчасти Case IH 7110 (4-18) - CAB FENDER HARNESS (04) - ELECTRICAL SYSTEMS

1

1964584C1

HARNESS

- fender, Includes: Ref. 2 and 3

1шт.

2

121645C1

MULTIPOLE CONNECTOR,7 Pin

OUTLET - seven terminal

1шт.

3

481849C1

PROTECTIVE COVER

BOOT - wiring harness, Replaces: 783611C1

1шт.

4

92261C1

HARNESS

- fuel tank

1шт.

5

1987598C1

FUEL GAUGE

SENSOR - fuel level, main tank, used with auxiliary tank sender 1987597C1

1шт.

7

REF

INSTRUCTION

LAMP ASSEMBLY - tail, See Figure 4-50

2шт.

8

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, inner, See Figure. 4-52

2шт.

9

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, outer, See Figure 4-52

2шт.

10

102590A1

SUPPORT ASSY.

SUPPORT - auxiliary outlet, Replaces: 96999C1

1шт.

11

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT - retaining, support

2шт.

12

825-1410

NUT,M10, Cl 8

2шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm - 1.25 x 20 mm

2шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

15

362123R1

CLIP

- harness retaining

4шт.

16

97212C1

SCREW,Pan, #6 - 20 x 7/8"

- pan head cross slotted

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

18

121646C1

TERMINAL CONNECTOR,Female

OUTLET - male, seven terminal

1шт.

19

1987599C1

FUEL GAUGE

SENSOR - fuel level, main, without auxiliary tank, replaces 1983369C1 sender

1шт.
