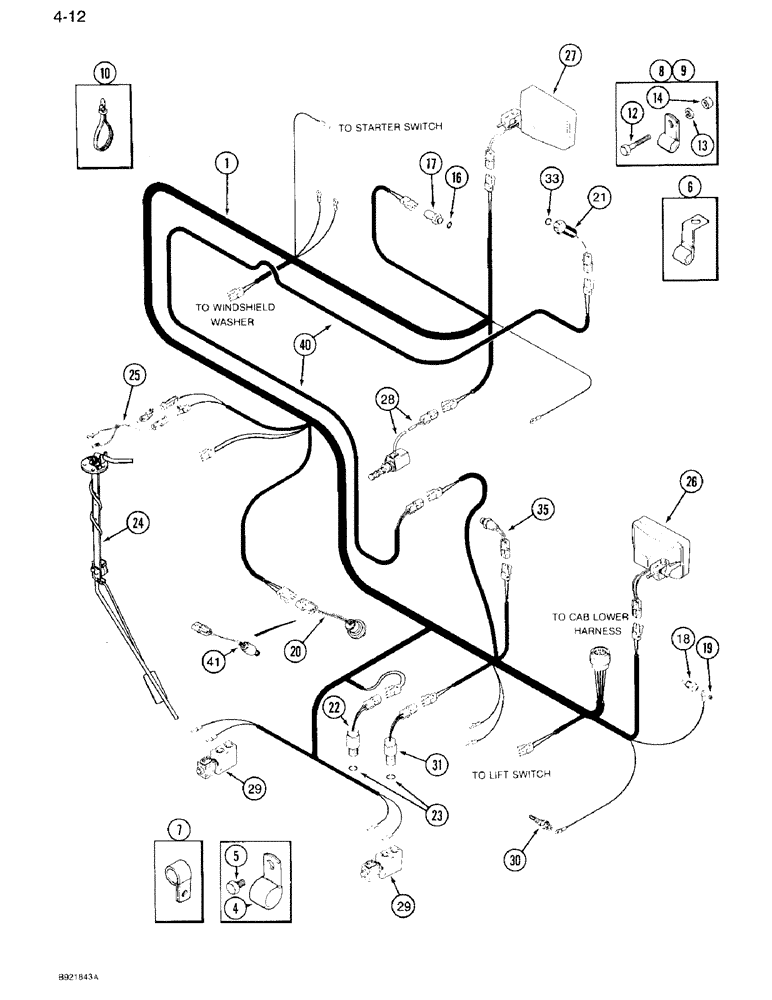

Запчасти Case IH 7110 (4-12) - TRANSMISSION HARNESS, TRANSMISSION SERIAL NUMBER AJB0001514 THROUGH AJB0041224 (04) - ELECTRICAL SYSTEMS

1

1983696C1

HARNESS

- transmission speed and range, Replaces: 1983322C1

1шт.

Order 1983683C1 kit if transmission system pressure switch is located below the neutral start switch on the transmission control valve.

1шт.

4

S77322

CLAMP

- harness, closed, 12.7 mm ID

1шт.

5

814-10012

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

- hex, 10 x 12 mm

1шт.

6

1255747C1

CLAMP

- harness, open, 13 mm ID, if equipped

1шт.

7

49845

CLAMP

- harness, closed, 9.52 mm ID

1шт.

8

49851

SHIELD

- harness, closed, 6.35 mm ID

1шт.

9

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness, closed, 9.52 mm ID

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

Order 1983683C1 kit if transmission system pressure switch is located below the neutral start switch on the transmission control valve.

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

1983218C2

SWITCH

- neutral start, Replaces: 92164C1

1шт.

18

A176566

TRANSMITTER

SENDER - transmission oil temperature

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- hex keps, No. 10-32

1шт.

20

1964550C3

BY-PASS VALVE

SENSOR - lube oil pressure, no longer available, order 1546462C1, ref. 41

1шт.

21

101813A1

PRESSURE SWITCH

SWITCH - transmission system pressure, Replaces: 92013C2

1шт.

22

A186005

SENSOR

tractor speed

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

(Replaces F62114) -115, 70 Duro, .674" ID x .103" Thk

2шт.

24

REF

INSTRUCTION

SENSOR - auxiliary fuel tank level, See Figure 3-18 or 3-20

1шт.

25

92261C1

HARNESS

- sensor, auxiliary fuel level

1шт.

26

REF

INSTRUCTION

LAMP ASSEMBLY - flood, right, See Figure 4-52

1шт.

27

REF

INSTRUCTION

LAMP ASSEMBLY - flood, left, See Figure 4-52

1шт.

28

93114C1

SOLENOID

- drive, creeper

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, MFD and differential lock, See Figure 8-24

2шт.

30

REF

INSTRUCTION

SWITCH ASSEMBLY - filter pressure, See Figure 8-2

1шт.

31

A186004

SENSOR

engine rpm

1шт.

33

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk, If used

1шт.

35

1964698C3

SWITCH

- PTO neutral

1шт.

40

1983684C1

ADAPTER

- harness, if required

1шт.

Order 1983683C1 kit if transmission system pressure switch is located below the neutral start switch on the transmission control valve.

1шт.

41

1546462C1

SENSOR

- lube oil pressure

1шт.

33

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, If used

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
