Запчасти Case IH 7110 (3-18) - AUXILIARY FUEL TANK, PRIOR TO P.I.N. JJA0026793 (03) - FUEL SYSTEM

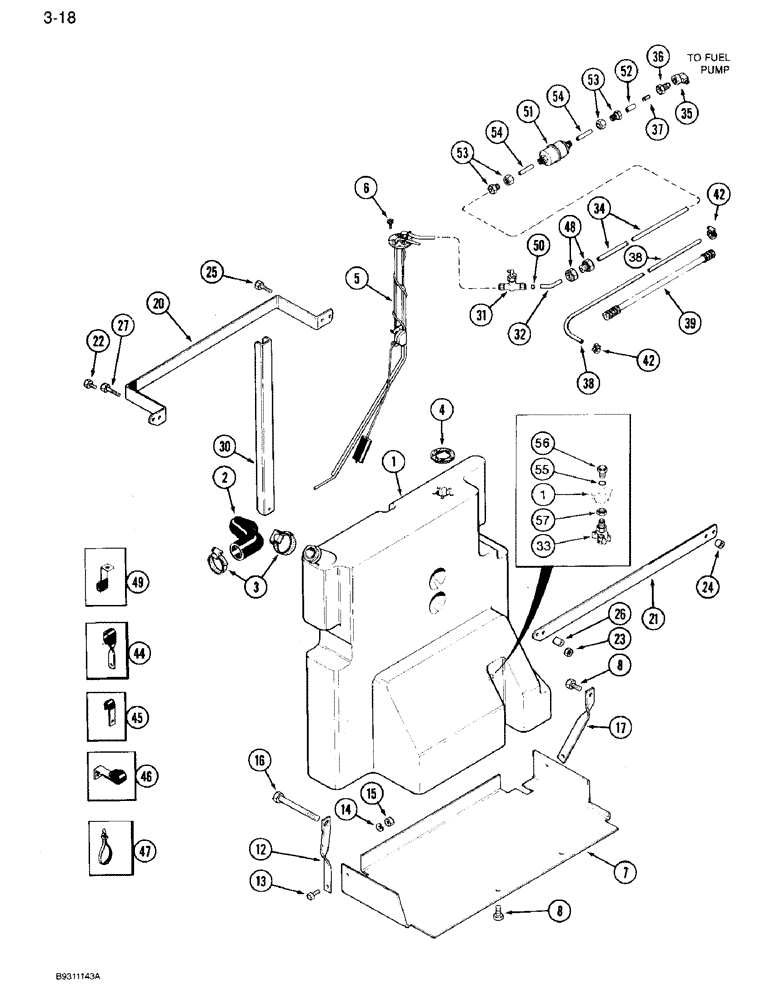

Схема запчастей Case IH 7110 - (3-18) - AUXILIARY FUEL TANK, PRIOR TO P.I.N. JJA0026793 (03) - FUEL SYSTEM
20
17
25
16
4
7
33
14
32
6
54
51
37
12
5
2
44
49
21
24
8
47
54
26
42
38
15
22
31
36
8
56
1
30
34
3
52
55
53
27
46
35
39
57
53
1
38
48
45
42
50
23
13

Артикул

Название

Примечание

Количество

1

137700C4

TANK

ASSEMBLY - fuel, auxiliary, also order ref. 4, 104812C3 gasket

1шт.

2

97013C1

FUEL HOSE

HOSE - tank, auxiliary

1шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

4

104812C3

GASKET,3.05mm Thk

- fuel level sensor

1шт.

5

1987597C1

FUEL GAUGE

SENSOR - level, fuel tank, Replaces: 91948C1 and 1983368C1, also order ref. 4, 104812C3 gasket

1шт.

6

1978426C1

SCREW

- Phillips head, with O-ring

5шт.

7

137702C3

SUPPORT ASSY.

SUPPORT - tank

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

3шт.

12

1280992C1

SUPPORT ASSY.

SUPPORT - tank rear

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

14

892-11010

LOCK WASHER,M10

2шт.

15

825-1410

NUT,M10, Cl 8

2шт.

16

30354R1

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

- hex, 16 x 140 mm

1шт.

17

137704C1

SUPPORT

- front, tank

1шт.

20

144252C2

STIFFENER

BRACKET - hold down, tank

1шт.

21

1259898C1

BRACKET

- retaining, tank

1шт.

22

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

1259899C1

SPACER

- support, front

1шт.

25

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 mm - 1.5 x 40 mm

1шт.

26

144253C1

SPACER

- support, rear

1шт.

27

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

30

1251937C1

REINFORCEMENT

- tank

1шт.

31

217-270

LOCK VALVE

VALVE - shutoff

1шт.

32

1968107C1

FUEL TUBE,0.375" OD

TUBE - fuel in

1шт.

33

217-92

COCK

VALVE - drain, 1/4 inch PT, Replaces: 539787R1

1шт.

34

NSS

NOT SOLD SEPARAT

TUBE - tank to pump, 950 mm, order 74814C2 and, Serial Range: cut-length

1шт.

74814C2

HOSE,0.5" OD

TUBE - nylon, 1/2 inch O.D., 50 foot roll

1шт.

35

104469C1

ELBOW

ASSEMBLY - 1/4 inch PT, tube to pump, Includes: Ref. 36

1шт.

36

222-506

TUBE NUT,11/16"-16

NUT - retaining, nylon tube

1шт.

37

222-2447

INSERT,1/2" Tube

SLEEVE - tube

1шт.

38

NSS

NOT SOLD SEPARAT

TUBE - return, 2 - 285 mm, order 74813C2 and, Serial Range: cut-length

1шт.

74813C2

TUBE,0.375" OD

- nylon, 3/8 inch O.D., 50 foot roll

1шт.

39

1968081C2

TUBE,12.7 mm ID, 17.4 mm OD

CONDUIT - insulation, tube

1шт.

42

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- retaining, tube #4, 0.25/0.62 Type F Worm

2шт.

44

120161C1

CLIP

- retaining, fuel lines

1шт.

45

1962595C1

CLIP

- cable

1шт.

46

1954473C3

CLAMP

- retaining

1шт.

47

306132C1

CABLE TIE,14.5" L

STRAP - retaining, nylon 14 in

4шт.

48

137597C1

ADAPTER,11/16" - 20

CONNECTOR ASSEMBLY - line, fuel

1шт.

49

120160C2

CLIP

- fuel line

1шт.

50

222-654

FERRULE,3/8" Tube, Comp

- tube

1шт.

51

A184963

KIT

FILTER ASSEMBLY - fuel

1шт.

52

NSS

NOT SOLD SEPARAT

TUBE - fuel, 50 mm, order 74814C1 and, Serial Range: cut-length

1шт.

53

137597C1

ADAPTER,11/16" - 20

CONNECTOR ASSEMBLY - line, fuel

2шт.

54

1342179C1

FUEL TUBE,9.52 mm OD, 50 mm Length

TUBE - fuel, 50 mm

2шт.

55

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

56

1251790C1

FITTING

ADAPTER - straight, fuel tank drain

1шт.

57

1251791C1

JAM NUT,3/4" - 16 LH Thread

- jam, special

1шт.
